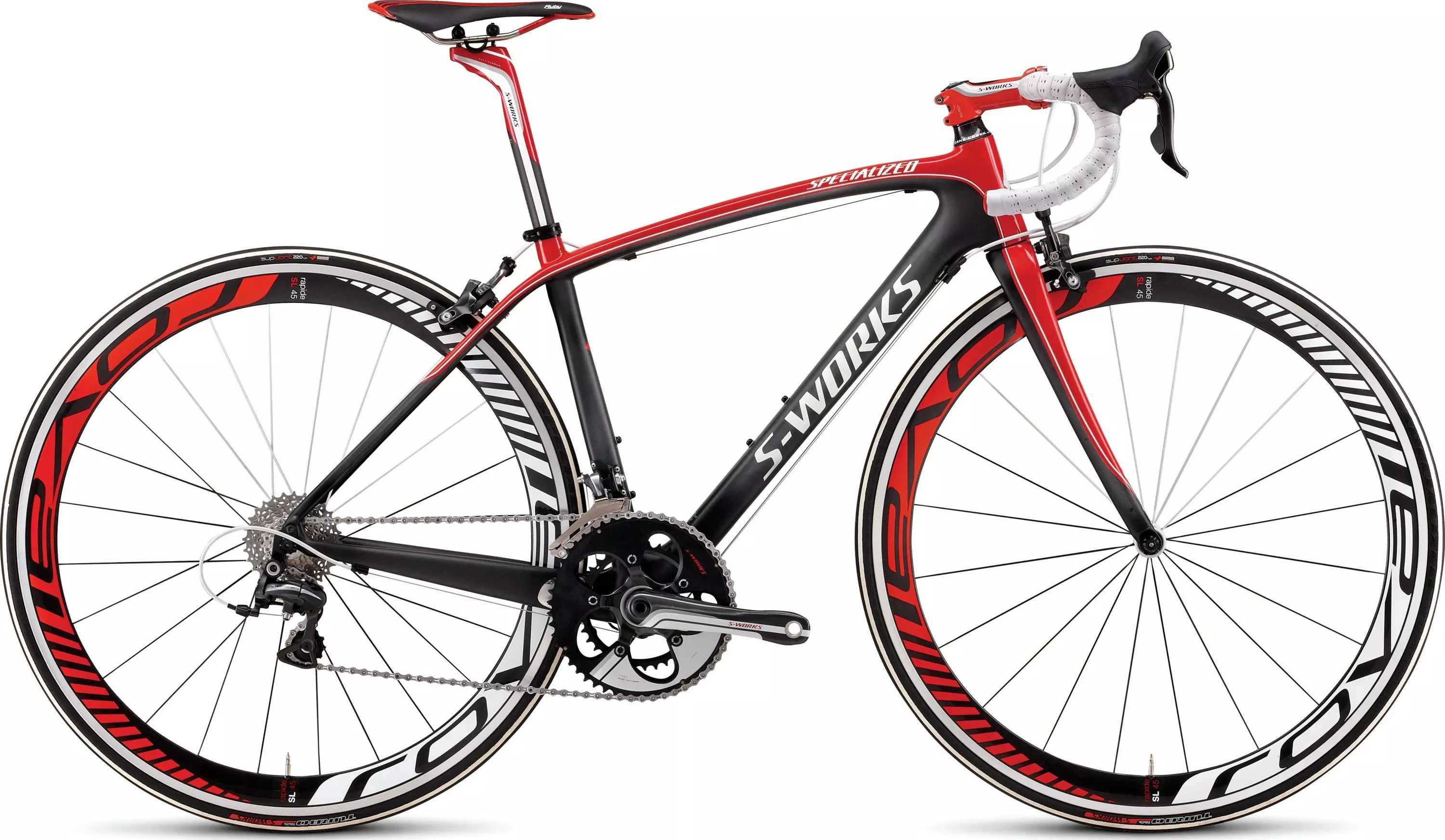

2011 S-Works Amira

0 Reviews

The most advanced FACT carbon technology ever available to the accomplished or aspiring…

Color:

Carbon/Flo Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The most advanced FACT carbon technology ever available to the accomplished or aspiring women racer, paired with Dura-Ace components and Roval Rapide SL wheels will help you finish first.

SW FACT monocoque fork with a tapered 1-1/8" to 1-3/8" headset for strength and precision steering
Legendary Shimano Dura-Ace 10-speed shifters are the benchmark for immediate, precise and quiet shifting
Women's SL ergonomic carbon handlebar delivers superior fit, comfort, stiffness and strength at minimal weight
Ultralight Roval Rapide SL 45 wheelset with carbon/alloy hybrid rims for low aerodynamic drag with the durability of an alloy brake track
SW Amira FACT IS 10r carbon frame uses women's race-inspired geometry and carbon lay-up, with integrated, tapered head tube, to create a light, stiff and fast ride
Specialized S-Works FACT carbon crankset with oversized BB, removable carbon spider, and ceramic bearings has the highest strength to weight ratio for unparalleled efficiency and power transfer

Technical Specifications

FRAMESET

FRAME

S-Works FACT 10r carbon, FACT IS construction, 1-1/8"" to 1-3/8"" HT, compact women's race geometry, OS BB

FORK

S-Works FACT carbon full monocoque, 1-1/8 to 1-3/8"" tapered steerer

HEADSET

1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings w/ 20mm carbon cone spacer and 20mm of carbon spacers

SEAT BINDER

Forged alloy, 32.6mm

WHEELS

FRONT TIRE

S-Works Turbo, 700x23c, Aramid bead, 220TPI w/ Black Belt protection

REAR TIRE

S-Works Turbo, 700x23c, Aramid bead, 220TPI w/ Black Belt protection

INNER TUBES

Super Light Turbo, 60mm presta valve

FRONT WHEEL

Roval Rapide SL 45

REAR WHEEL

Roval Rapide SL 45

DRIVETRAIN

FRONT DERAILLEUR

Shimano Dura-Ace

REAR DERAILLEUR

Shimano Dura-Ace

SHIFT LEVERS

Shimano Dura-Ace STI, flight deck compatible

CASSETTE

Shimano Dura Ace, 10-speed, 11-28t

CHAIN

Shimano Dura-Ace

CRANKSET

S-Works FACT carbon

CHAINRINGS

52 x 36T

BOTTOM BRACKET

OS integrated, ceramic bearings

COCKPIT

STEM

S-Works 3D forged 7050 alloy w/ carbon-wrap top and front cap

HANDLEBARS

Specialized Women's SL Carbon, shallow drop

TAPE

Specialized S-Works wrap

SADDLE

Body Geometry Ruby Gel w/ hollow Ti rails

SEATPOST

S-Works FACT carbon, 27.2mm

BRAKES

FRONT BRAKE

Shimano Dura-Ace

REAR BRAKE

Shimano Dura-Ace

BRAKE LEVERS

Shimano Dura-Ace STI, flight deck compatible

ACCESSORIES

PEDALS

Black cage, body & toe clips w/ strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44	48	51	54	56
Seat-Tube Angle	76°	75.75°	75.5°	74°	73.5°
Head-Tube Length	105mm	115mm	125mm	145mm	165mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm
Head-Tube Angle	70.5°	71.25°	72°	72°	72°
Chain-Stay Length	405mm	405mm	405mm	405mm	408mm
Top-Tube Length, Horizontal	498mm	506mm	518mm	537mm	548mm
Front-Center	576mm	579mm	582mm	588mm	595mm
Handle-Bar Width	360mm	380mm	400mm	400mm	420mm
Stand-Over Height	692mm	718mm	735mm	758mm	777mm
Seat-Tube Length, B-B Center to Top	390mm	420mm	450mm	480mm	495mm
Fork Rake	51mm	51mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	73mm	73mm	71.5mm
Trail	66mm	62mm	59mm	59mm	59mm
Wheelbase	969mm	973mm	976mm	982mm	993mm
Crank Length	167.5mm	167.5mm	170mm	170mm	172.5mm
Stem Length	75mm	75mm	90mm	100mm	100mm
