2019 Ruby Sport

$2,700

4.7

3 Reviews

Looking for a bike to explore the road less traveled, while also keeping room in…

Product Details

Add Icon

Looking for a bike to explore the road less traveled, while also keeping room in your wallet for a mid-ride cappuccino? Look no further than the Ruby Sport.

The frame is among the lightest that we've ever made, and it's been constructed from our superlative FACT 9r carbon fiber. Its stiffness levels are also off the charts, and compared to the SL4 iteration of yesteryear, you'll experience a whole new, faster, and more efficient geometry. Through some advanced, dedicated engineering, however, we've managed to keep the same fit, feel, and position that we've all come to love from the SL4's Women's Endurance Geometry. Of course, you're probably thinking, "get on to the suspension thing up front."

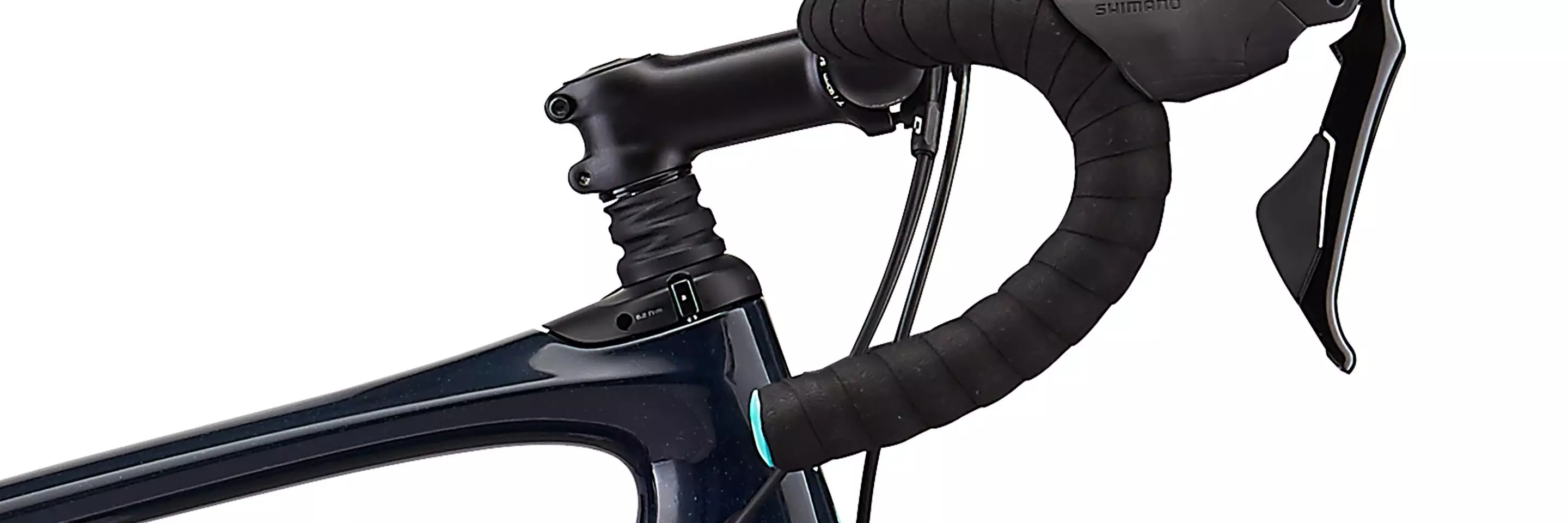

We call it Future Shock, and essentially, it's a piston in the head tube with 20mm of travel. We developed this technology in partnership with McLaren Applied Technologies, and the result of this are a host of drastic performance improvements, namely in the vertical compliance department. Without giving a physics lecture, we found that focusing on vertical compliance, instead of fork splay, meant that we could improve smoothness, speed, and comfort in one fell swoop. And of all the bikes that we've tested with our Rolling Efficiency Model, the new Ruby outperforms anything on the market.

Lastly, we spec'd it with a host of components that blur the lines between steadfast reliability and outright performance, like a mix of Shimano 105 and Tiagra shifting, powerful hydraulic disc brakes, durable DT R470 Disc wheels, and a women's-specific saddle.

  • Featuring our Rider-First Engineered™ design that ensures every frame size has the same legendary responsiveness and smooth ride quality that you'd expect from a Ruby. The FACT 9r frameset holds its own with our highest-end carbon offerings, with the ideal blend of light overall weight and targeted stiffness, while the all-new Future Shock "suspension" system at the cockpit delivers a revolutionary degree of comfort and control.

  • Shimano's 105 shifting and hydraulic disc brakes ensure reliable shifting and stopping power in a variety of conditions.

  • DT R470 Disc wheels feature reliable, sealed cartridge hubs, and 24 front and rear spokes that keeps weight low and durability high.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized FACT 9r carbon, Women's Endurance Geometry, Rider-First Engineered™, 12x142mm thru-axle, Future Shock suspension, 20mm of travel, flat disc mounts

SUSPENSION

FORK

Specialized FACT full-carbon, flat-mount disc, 12x100mm thru-axle

COCKPIT

HANDLEBARS

Specialized Comp Hover Bar, 6061 alloy, 75x125mm w/ Di2 hole

STEM

Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

TAPE

S-Wrap Roubaix w/ sticky gel

SADDLE

Women's Body Geometry Myth Sport, 155mm, thin, steel rails

SEATPOST

Carbon, single-bolt, 30.9mm

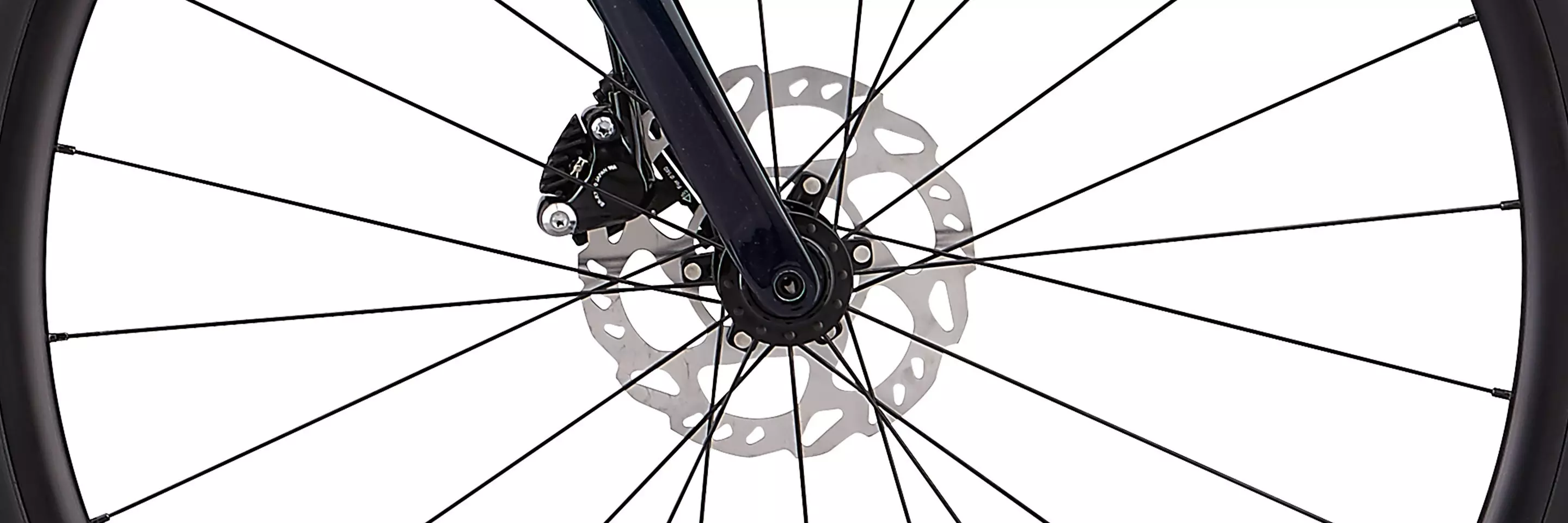

BRAKES

FRONT BRAKE

Shimano 105, hydraulic disc

REAR BRAKE

Shimano 105, hydraulic disc

DRIVETRAIN

SHIFT LEVERS

Shimano 105 R7020 hydraulic disc

FRONT DERAILLEUR

Shimano 105

REAR DERAILLEUR

Shimano 105

CASSETTE

Shimano 105, 11-speed, 11-34t

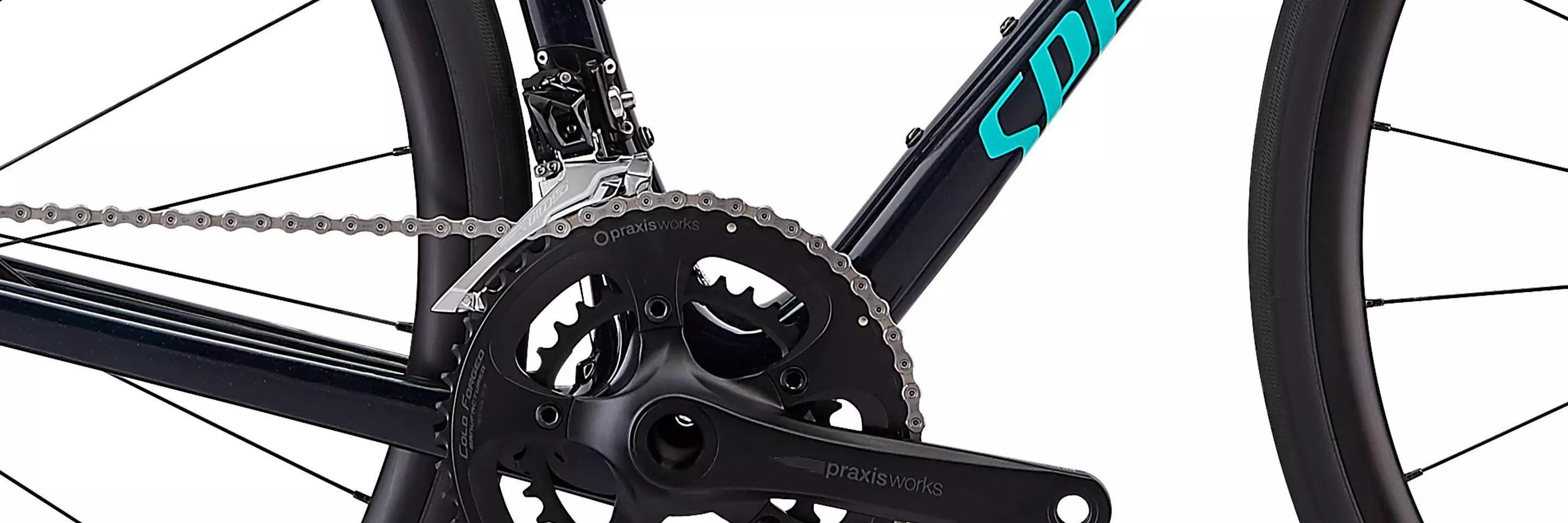

CRANKSET

Praxis Alba

CHAINRINGS

50/34T

BOTTOM BRACKET

Praxis, Threaded bearings

CHAIN

KMC X10 Extra Lightweight, 11-speed

WHEELS & TIRES

FRONT WHEEL

DT R470 Disc, sealed cartridge hubs, 14g spokes, 24h

REAR WHEEL

DT R470 Disc, sealed cartridge hubs, 14g spokes, 24h

FRONT TIRE

Specialized Turbo Pro, 700x28mm

REAR TIRE

Specialized Turbo Pro, 700x28m

INNER TUBES

Presta, 48mm valve

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose ball w/reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
4448515456
Crank Length165mm165mm170mm170mm172.5mm
Handlebar Width360mm380mm400mm400mm400mm
Stem Length70mm80mm90mm90mm100mm
Saddle Width155mm155mm155mm155mm155mm
Seatpost Length350mm350mm350mm400mm400mm
Seat Tube Length, BB Center to Top363mm392mm425mm462mm481mm
Fork Rake50mm50mm50mm50mm50mm
Standover Height679mm700.7mm727.9mm756.9mm778mm
Stack541mm554mm575mm596mm616mm
Reach353mm358mm365mm370mm370mm
Head Tube Length90mm100mm120mm140mm160mm
Head Tube Angle70°71°71.5°72°72.5°
BB Drop77.5mm77.5mm77.5mm77.5mm76mm
Trail72mm66mm62mm59mm56mm
Front Center580mm580mm589mm596mm607mm
Chainstay Length413mm413mm413mm413mm415mm
Wheelbase981mm981mm990mm997mm1010mm
Top Tube Length, Horizontal510mm517mm534mm544mm550mm
Seat Tube Angle74.5°74.5°74°74°74°
Geometry
