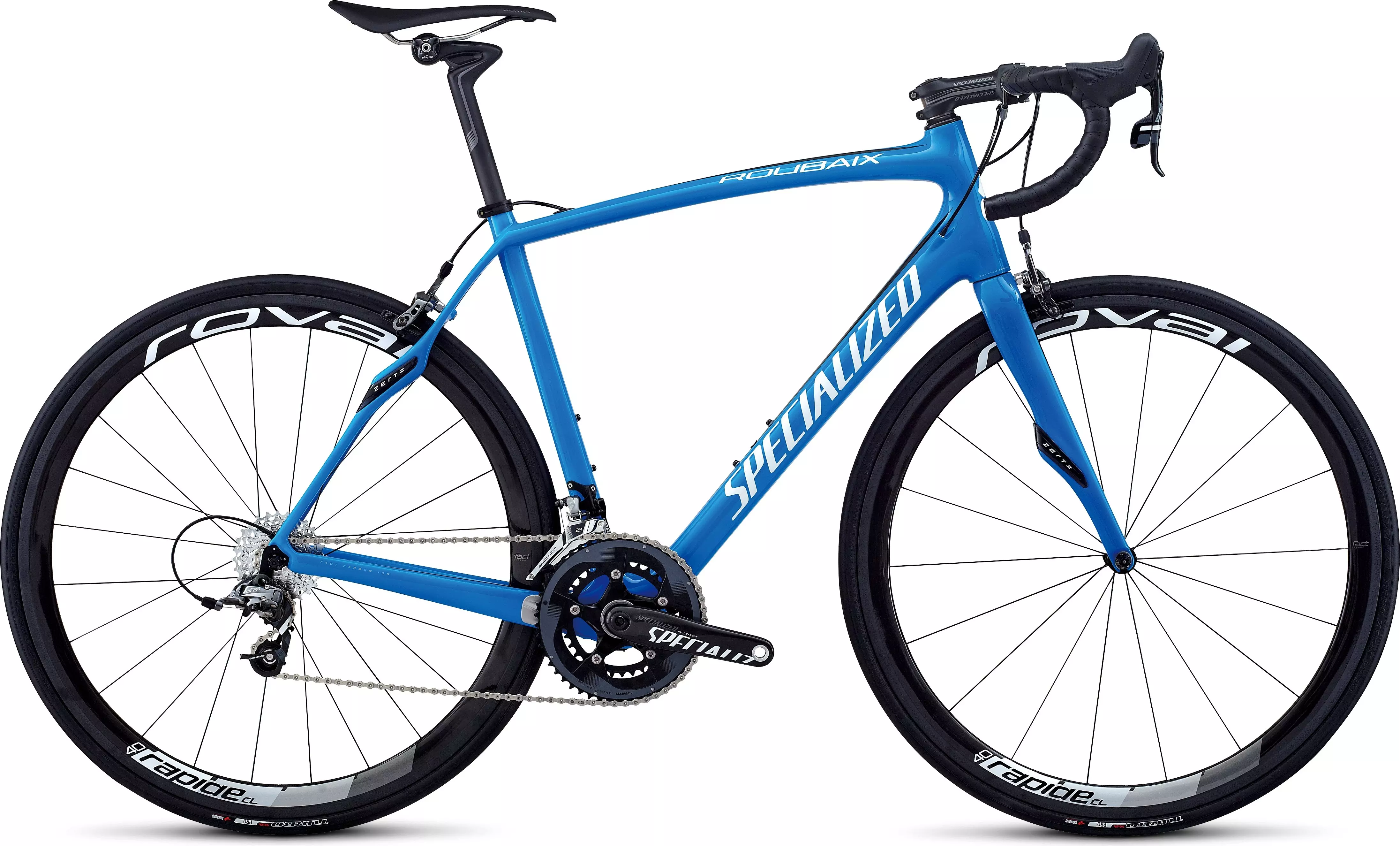

2014 Roubaix SL4 Pro Race

0 Reviews

Smoother is faster. The more comfortable and less fatigued you are at the end of…

Product Details

Add Icon

Smoother is faster. The more comfortable and less fatigued you are at the end of a 4 hour ride, the stronger you'll be. Like shocks on a race car, the Zertz vibration damping inserts on the Roubaix SL4 help absorb road impact and keep power planted firmly on the road - couple that with a FACT carbon 10r frame and it's still plenty stiff to thrash around in a sprint. Just ask four time Paris-Roubaix champion Tom Boonen

  • Specialized SL4 FACT 10r frame with Zertz is fast and smooth, with incredible light weight, size-specific engineering, and tapered headtube, FACT carbon fork with Zertz has size-specific engineering to create a more balanced and stable ride for riders of different sizes

  • Roval Rapide CL 40 carbon clincher wheelset with DT Swiss internals and an aerodynamic profile for outstanding combination of performance and strength

  • Specialized Pro FACT carbon crankset, with oversized BB and removable spider, has an unparalleled stiffness to weight ratio for efficiency and power transfer

  • New, SRAM Force 22, 11-speed shifters with DoubleTap technology deliver a lightweight package that performs with clear, defined shifting

  • The revolutionary CG-R post features 18mm of vertical compliance and Zertz vibration damping, while FACT carbon construction delivers unsurpassed comfort, control, and efficiency without adding weight or complication to the frame

  • Specialized Turbo Pro 25c tires deliver an incredible package of light weight, low rolling resistance, and superior traction, all with BlackBelt protection

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized SL4 FACT 10r carbon, FACT construction, tapered/shaped 1-1/8"" to size-specific lower headtube, compact race design, Zertz, internal cable routing, carbon OSBB

FORK

Specialized Roubaix FACT carbon full monocoque, Zertz, size-specific

HEADSET

1-1/8"" upper and size specific lower, stainless steel cartridge bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers

SEAT BINDER

Forged alloy, Ti bolt, 32.6mm

WHEELS

FRONT WHEEL

Roval Rapide CL 40

REAR WHEEL

Roval Rapide CL 40

FRONT TIRE

Specialized Turbo Pro, 127TPI, foldable aramid bead, 700x25c

REAR TIRE

Specialized Turbo Pro, 127TPI, foldable aramid bead, 700x25c

INNER TUBES

Turbo Ultralight, 60mm presta valve

DRIVETRAIN

SHIFT LEVERS

SRAM Force 22, DoubleTap, 11-speed

FRONT DERAILLEUR

SRAM Force 22, braze-on, YAW

REAR DERAILLEUR

SRAM Force 22, 11-speed

CASSETTE

SRAM 1170, 11-speed ,11-28

CRANKSET

Specialized Pro FACT carbon, OSBB

CHAINRINGS

50/34

BOTTOM BRACKET

OS integrated, sealed bearings

CHAIN

SRAM PC 1170, w/ PowerLink

COCKPIT

HANDLEBARS

Specialized Expert Shallow Bend, alloy, 123mm drop, 75mm reach

STEM

Specialized Pro-Set, 3D forged 7075 alloy, 12-degree, 4-degree shim, 31.8mm

TAPE

Specialized Roubaix, w/ S gel

SADDLE

Body Geometry Romin Expert Gel, hollow Ti rails, 143mm

SEATPOST

S-Works CG-R, FACT carbon w/ Zertz, 27.2mm

BRAKES

FRONT BRAKE

SRAM Force

REAR BRAKE

SRAM Force

BRAKE LEVERS

SRAM Force 22

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
490.0520.0540.0560.0580.0610.0
Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
Head-Tube Length125mm145mm165mm190mm225mm245mm
Seat-Post Length300mm300mm350mm350mm350mm350mm
Head-Tube Angle72°72°72°72.5°72.5°73°
Chain-Stay Length412mm412mm415mm415mm418mm420mm
Top-Tube Length, Horizontal518mm537mm548mm565mm582mm600mm
Front-Center582mm589mm596mm606mm621mm628mm
Handle-Bar Width400mm420mm420mm420mm440mm440mm
Stand-Over Height730mm756mm776mm798mm829mm851mm
Seat-Tube Length, B-B Center to Top455mm475mm495mm515mm540mm565mm
Fork Rake49mm49mm49mm49mm49mm49mm
B-B Drop73mm73mm71.5mm71.5mm70mm70mm
Stack528mm547mm564mm590mm622mm643mm
Reach378mm379mm380mm387mm392mm398mm
Trail59mm59mm59mm56mm56mm53mm
Wheelbase983mm990mm1000mm1011mm1029mm1039mm
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Stem Length75mm90mm100mm100mm110mm110mm
