The bike that invented the Endurance Road category also goes by the name "nothing…

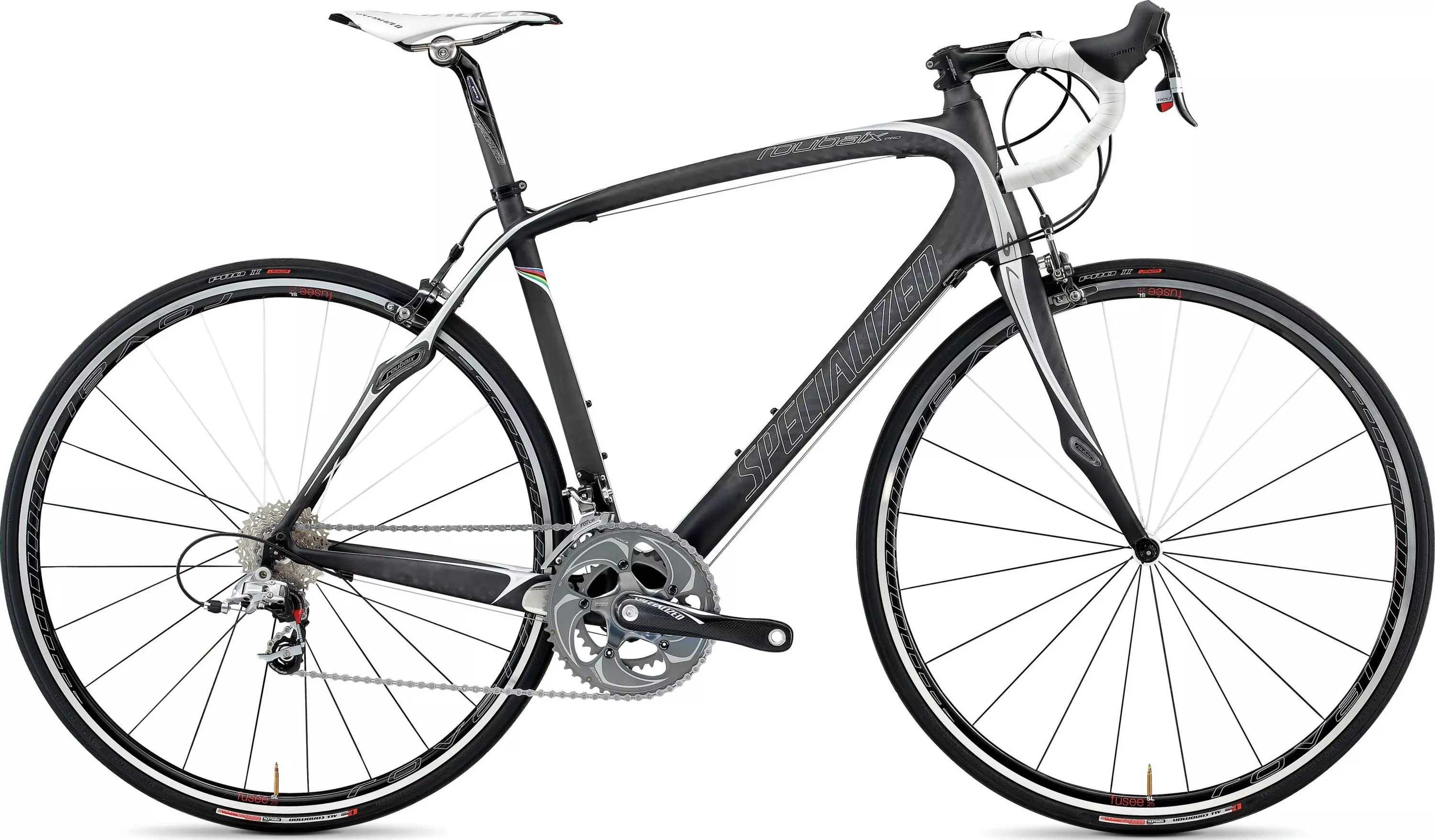

The bike that invented the Endurance Road category also goes by the name "nothing is smoother and faster". Combining best-in-class vertical compliance from the seatstays and top tube with excellent torsional rigidity from the down tube, head tube and bottom bracket, the Roubaix finds a way to not only make the long ride comfortable, but also make it fast
FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort
FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable
Adjustable 4-position, 3D-forged alloy stem with 31.8mm bar clamp for strength and versatile positioning
S-Works SL ergonomic carbon handlebars for superior fit, comfort, stiffness and strength at minimal weight
Roval Fusee SL wheelset combines our lightest alloy rims with aero features and enough durability and compliance for everyday rides
Specialized Pro oversized BB FACT carbon crankset combines high strength and light weight for unparalleled efficiency and power transfer
Body Geometry Toupe saddle features a carbon reinforced shell and hollow titanium rails for balanced stiffness and compliance on longer rides
Advanced FACT IS 9r carbon frame with Endurance Road geometry and Zertz inserts for the perfect blend of stiffness, compliance and light weight
FRAME
Specialized Roubaix FACT 9r carbon, FACT IS construction, compact race design w/ Zertz inserts
FORK
Roubaix full carbon monocoque, w/ Zertz inserts
HEADSET
Aheadset Stainless Balls w/ top cap w/ 20mm of spacers
SEAT BINDER
Alloy, 32.6mm clamp
FRONT TIRE
Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE
Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
FRONT WHEEL
Roval Fusee SL
REAR WHEEL
Roval Fusee SL
FRONT DERAILLEUR
SRAM Force
REAR DERAILLEUR
SRAM RED
SHIFT LEVERS
SRAM RED
CASSETTE
Shimano Ultegra, 10-speed, 11-28t
CHAIN
KMC X10 CP
CRANKSET
Specialized Pro Crankset 50x34
CHAINRINGS
50 x 34T
BOTTOM BRACKET
With Crankset
STEM
Specialized Pro-Set, 3D forged 7050 aluminum, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
S-Works SL Ergo Carbon
TAPE
Specialized Pro Gel with neoprene pads
SADDLE
Body Geometry Toupe w/ hollow Ti rails
SEATPOST
Specialized FACT carbon w/ Zertz insert, 27.2mm
FRONT BRAKE
SRAM Force
REAR BRAKE
SRAM Force
BRAKE LEVERS
SRAM RED
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
Head-Tube Length | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm |
Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° |
Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
Front-Center | 582mm | 588mm | 595mm | 606mm | 621mm | 628mm |
Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
Stand-Over Height | 737mm | 759mm | 780mm | 801mm | 824mm | 849mm |
Seat-Tube Length, B-B Center to Top | 445mm | 475mm | 495mm | 515mm | 540mm | 565mm |
Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
Trail | 59mm | 59mm | 59mm | 56mm | 56mm | 53mm |
Wheelbase | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm |
Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
