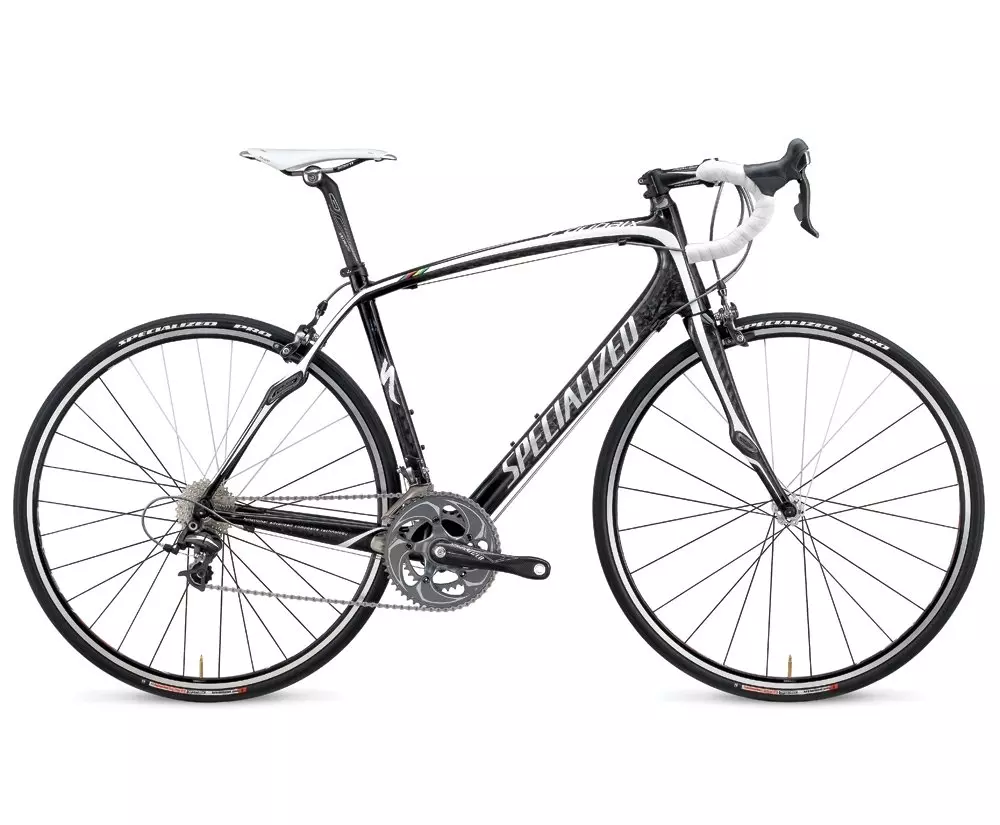

2009 Roubaix Pro SL Dura-Ace

0 Reviews

SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles…

Color:

Gloss Carbon/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."

The Roubaix Pro SL C2 Dura-Ace is made with FACT 9r carbon using our new FACT IS construction, with an oversized threaded BB and speed-oriented design, this frame is all about minimal weight and all-day-comfortable speed.
The Specialized FACT carbon monocoque fork is full carbon—legs, crown, steerer—and features an oversized lower bearing race for precision and strength, Zertz inserts soak up the chatter.
The 4-position forged alloy Pro-Set stem (with oversized bar-clamp area) makes the connection between bar and stem seem like a stiff-yet-adjustable work of art.
The S-Works SL FACT carbon handlebar is light, strong, and comfortable, the short-reach drop keeps your hands right where you want them.
The Roubaix Pro SL C2 Dura-Ace features the redesigned top-of-Shimano’s-line Dura Ace, for the ultimate 10-speed shifting performance with minimal weight.
The comfortable and scientifically proven Body Geometry Toupé Gel saddle features a carbon-reinforced base for stiffness and hollow Ti rails for minimum weight.
The Zertz insert in the Specialized Pro SL FACT carbon seatpost soaks up vibrations without wasting your energy.

Technical Specifications

FRAMESET

FRAME

Specialized FACT 9r carbon, FACT IS construction, compact race design, Zertz inserts, OS BB

FORK

Specialized FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts.

HEADSET

Specialized Campy style, 1-3/8"" lower bearing, integrated threadless, stainless steel sealed cartridge bearings, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

Specialized CNC alloy, 32.6mm

WHEELS

FRONT TIRE

Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI

REAR TIRE

Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI

INNER TUBES

Specialized standard presta tube

RIMS

Roval Roubaix SL, E5 alloy, machined sidewalls

FRONT HUB

Roval Roubaix SL, carbon center tube w/ alloy flanges, 24h

REAR HUB

Roval Roubaix SL, CNC alloy body Swiss-made internals,ratchet and cassete body, 30 hole

SPOKES

DT Aerolite butted

DRIVETRAIN

FRONT DERAILLEUR

Shimano Dura-Ace, braze-on clamp

REAR DERAILLEUR

New Shimano Dura-Ace

SHIFT LEVERS

New Shimano Dura-Ace, 10-speed STI, flight deck compatible

CASSETTE

Shimano Ultegra, 10-speed, 12-27t

CHAIN

Shimano Dura-Ace, 10-speed

CRANKSET

Specialized FACT Pro carbon, integrated oversize design

CHAINRINGS

50x34T

BOTTOM BRACKET

Specialized oversize integrated

COCKPIT

STEM

Specialized Pro-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable

HANDLEBARS

S-Works SL, FACT carbon handlebar, short-reach drop, 31.8mm

TAPE

Body Geometry Bar Phat, cork ribbon w/ 2.5mm gel padding

SADDLE

Body Geometry Toupé Gel, carbon reinforced base, hollow Ti rails

SEATPOST

Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm

BRAKES

FRONT BRAKE

Shimano Ultegra SL

REAR BRAKE

Shimano Ultegra SL

BRAKE LEVERS

New Shimano Dura-Ace, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Silver cage, black body, w/ toe clip and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Ground-Top	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Seat-Tube Angle	59°	59°	59°	56°	53°	56°
Head-Tube Angle	582°	588°	595°	606°	621°	628°
Chain-Stay Length	49mm	49mm	49mm	49mm	49mm	49mm
Top-Tube Length, Horizontal	74mm	75.5mm	73.5mm	73.25mm	72.5mm	73mm
Front-Center	125mm	145mm	165mm	190mm	225mm	245mm
Handle-Bar Width	0mm	0mm	0mm	0mm	0mm	0mm
Seat-Tube Length, B-B Center to Top	412mm	412mm	415mm	415mm	418mm	420mm
Fork Rake	983mm	989mm	1000mm	1010mm	1029mm	1038mm
B-B Drop	72mm	72mm	72mm	72.5mm	72.5mm	73mm
Stack	445mm	475mm	495mm	515mm	540mm	565mm
Reach	518mm	537mm	548mm	565mm	582mm	600mm
Trail	737mm	759mm	780mm	801mm	824mm	849mm
