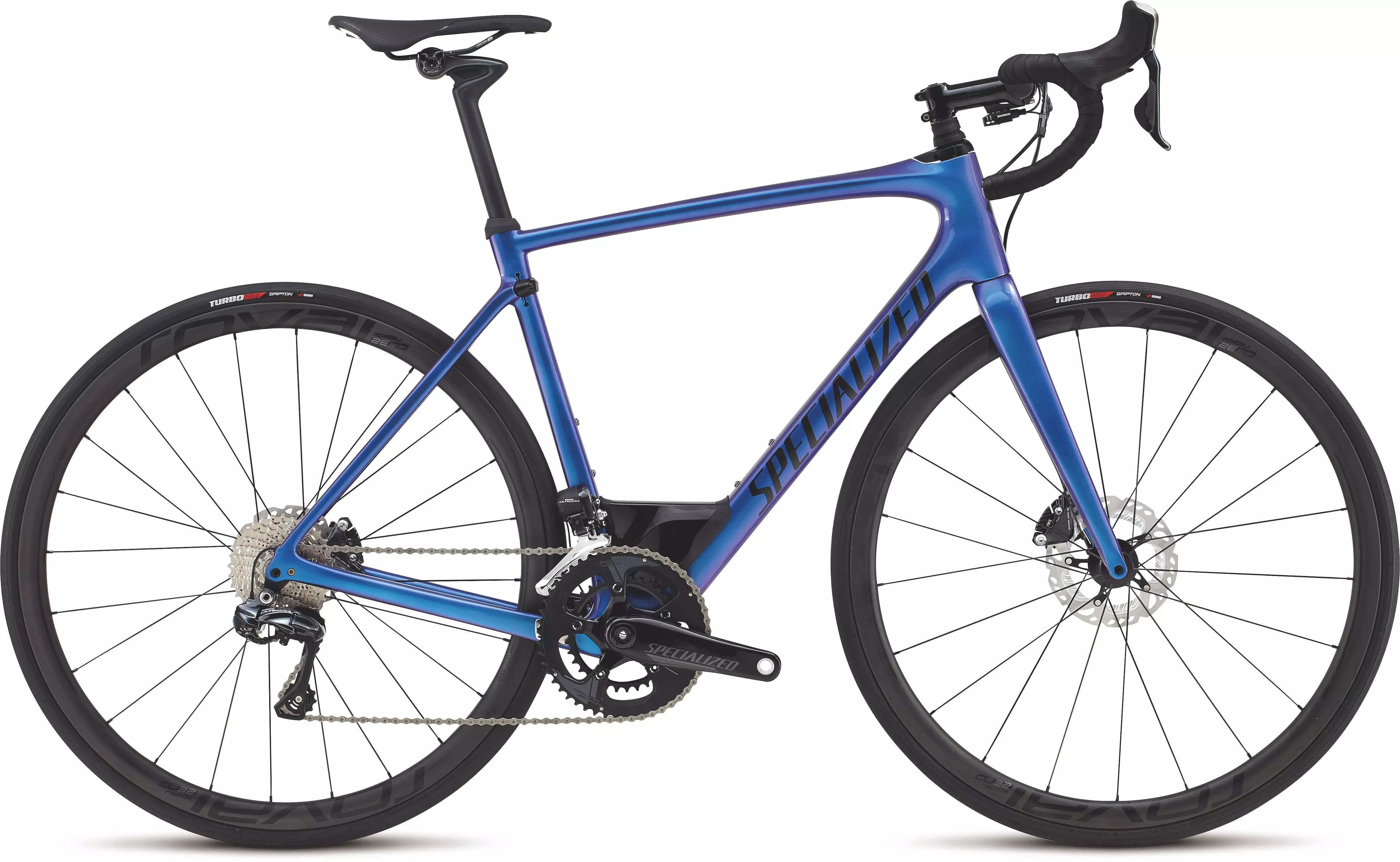

2017 Roubaix Pro Di2

5

1 Reviews

So long Zertz. It's been fun, but we found someone better for us. The all-new Roubaix…

Every Roubaix has a Roubaix

Product Details

Add Icon

So long Zertz. It's been fun, but we found someone better for us. The all-new Roubaix Pro with Shimano Di2 represents the future of road bikes in our opinion, and in a second, you'll see exactly why. The frame is the lightest that we've ever made, and it's been constructed from our top-end FACT 11r carbon fiber. Its stiffness levels are also off the charts, and compared to the SL4 iteration of yesteryear, you'll experience a whole new, faster, and more efficient geometry. Through some engineering sorcery, however, we've managed to keep the same fit, feel, and position that we've all come to love from the SL4. Of course, you're probably thinking, "get on to the suspension thing up front." We call it Future Shock, and essentially, it's a piston in the head tube with 20mm of travel. We developed this technology in partnership with McLaren Applied Technologies, and the result of this are a host of drastic performance improvements, namely in the vertical compliance department. Without giving a physics lecture, we found that focusing on vertical compliance, instead of fork splay, meant that we could improve smoothness, speed, and comfort in one fell swoop. And of all the bikes that we've tested with our Rolling Efficiency Model, the new Roubaix outperforms anything on the market. Lastly, we spec'd it top of the line equipment, like Ultegra Di2 shifting & hydraulic disc brakes and our all-new Roval CL 32 carbon wheels.

  • Featuring our Rider-First Engineered™ design that ensures every frame size has the same legendary responsiveness and smooth ride quality that you'd expect from a Roubaix. The S-Works FACT 11r frameset is our highest quality carbon frame, offering the ideal blend of light overall weight and targeted stiffness, while the all-new Future Shock "suspension" system at the cockpit delivers a revolutionary degree of comfort and control.

  • An S-Works Roubaix Disc fork is built from our top-end FACT 11r carbon fiber for supreme stiffness, strength, and reactivity, while a thru-axle design only stands to bolster all of the above.

  • Shimano Ultegra Di2 shifting offers 11-speeds of electronic wonderment. Shifts are as precise as it gets, dropping chains becomes a rarity, and the trim adjust up front ensures that chain rub is a thing of the past—no matter how extreme your cross-chaining gets.

  • Comes equipped with a 40lbs spring (color: yellow, weight: firm) installed, and also includes both 13lbs (color: blue, weight: soft) and 25lbs (color: black, weight: medium) springs that can be installed to match the terrain you're riding.

Technical Specifications

Add Icon

FRAMESET

FRAME

FACT 11r carbon, Endurance Geometry, Rider-First Engineered™, 12x142mm thru-axle, Future Shock suspension, 20mm of travel

FORK

S-Works FACT carbon, 12x100mm thru-axle

WHEELS

FRONT TIRE

Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm

REAR TIRE

Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm

INNER TUBES

700x20/28mm, 48mm Presta valve

FRONT WHEEL

CL 32 Disc, thru-axle, 2Bliss Ready

REAR WHEEL

CL 32 Disc, thru-axle, 2Bliss Ready

DRIVETRAIN

SHIFT LEVERS

Shimano R785 Di2, 11-speed

CASSETTE

Shimano Ultegra, 11-speed, 11-32t

CRANKSET

Specialized Pro 50/34T

BOTTOM BRACKET

Praxis 6806 bearings

CHAIN

Shimano Ultegra, 11-speed

FRONT DERAILLEUR

Shimano Ultegra Di2 6870, braze-on, 11-speed

REAR DERAILLEUR

Shimano Ultegra Di2, long cage, 11-speed

COCKPIT

HANDLEBARS

S-Works Hover Carbon, 15mm rise, 125mm drop, 75mm reach

STEM

S-Works SL, alloy, titanium bolts, 6-degree rise

TAPE

S-Wrap Roubaix w/sticky gel

SADDLE

Phenom Expert GT, Adaptive Edge design, hollow titanium rails, 143mm

SEATPOST

Specialized CG-R, FACT carbon, single bolt, 27.2mm

BRAKES

FRONT BRAKE

Shimano RS805 hydraulic disc

REAR BRAKE

Shimano RS805 hydraulic disc

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose balls w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm
Stem Length75mm90mm100mm100mm110mm110mm
Saddle Width143mm143mm143mm143mm143mm143mm
Seatpost Length350mm350mm400mm400mm400mm450mm
Seat-Tube Angle74°74°74°73.5°73.5°73.5°73°
Head-Tube Length90mm110mm125mm150mm185mm205mm220mm
Head-Tube Angle72°72.25°72.75°73.5°73.5°74°74°
Chain-Stay Length413mm413mm415mm415mm418mm418mm418mm
Top-Tube Length, Horizontal527mm534.9mm545mm561.8mm576.3mm588.5mm610mm
Front-Center580mm586mm584mm590mm605mm612mm626mm
Stand-Over Height715.5mm743mm762mm785mm813mm844.3mm860.8mm
Seat-Tube Length, B-B Center to Top425mm462mm481mm501mm522mm563mm584mm
Fork Rake50mm50mm44mm44mm44mm44mm44mm
B-B Drop77.5mm77.5mm76mm76mm74.5mm74.5mm74.5mm
Stack549mm569mm585mm611mm644mm665mm679mm
Reach369mm371mm375mm381mm386mm392mm403mm
Trail59mm57mm61mm555mm55mm52mm52mm
Wheelbase981mm987mm987mm993mm1011mm1018mm1033mm
Geometry

Rider Reviews

5

1 Reviews



Best bicycle I've ever owned

The bottom bracket on my 2006 Roubaix Pro separated from the frame and Specialized deducted the entire cost paid in 2006 from a 2017 Roubaix. I opted for the Pro because of the eye turning stock paint job. Since then, I've put almost 10,000 miles on it and it's still as sweet as the first day I threw a leg over: agile and responsive while allowing me to ride all day long. Amazing wheel-set and the Di2 is reliable and easy to adjust.
