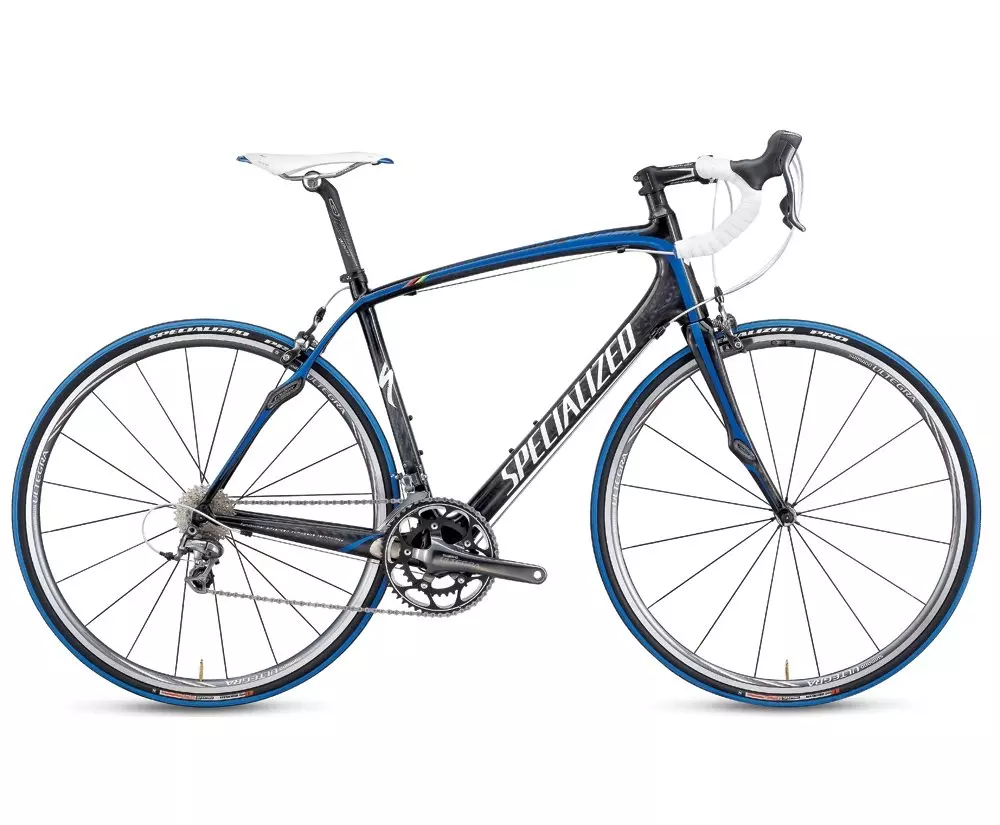

2009 Roubaix Expert
0 Reviews
SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles…
Product Details
SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."
The FACT 9r carbon Roubaix Expert SL C2 features our new FACT IS construction, for minimal weight, exceptional strength, and unbelievable comfort.
The Specialized FACT carbon monocoque fork is full carbon—legs, crown, steerer—and features an oversized lower bearing race for precision and strength, Zertz inserts soak up the chatter.
The 4-position forged alloy Pro-Set stem (with oversized bar-clamp area) makes the connection between bar and stem seem like a stiff-yet-adjustable work of art.
The oversized Specialized Pro handlebars feature a short drop and ergonomic shape for all-day comfort.
The Zertz insert in the Pro SL FACT carbon seatpost soaks up vibrations without wasting your energy.
Technical Specifications
FRAMESET
FRAME
Specialized FACT 9r carbon, FACT IS construction, compact race design, Zertz inserts
FORK
Specialized FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts.
HEADSET
Specialized Campy style, 1-3/8"" lower bearing, integrated threadless, stainless steel sealed cartridge bearings, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER
Specialized CNC alloy, 32.6mm
WHEELS
FRONT TIRE
Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI
REAR TIRE
Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI
INNER TUBES
Specialized standard presta tube
RIMS
Shimano Ultegra SL
FRONT HUB
Shimano Ultegra SL, QR
REAR HUB
Shimano Ultegra SL, alloy cassette, QR
SPOKES
Stainless bladed
DRIVETRAIN
FRONT DERAILLEUR
Shimano Ultegra SL, braze-on clamp
REAR DERAILLEUR
Shimano Ultegra SL, short cage
SHIFT LEVERS
Shimano Ultegra SL, 10-speed STI, flight deck compatible
CASSETTE
Shimano Ultegra, 10-speed, 12-27t
CHAIN
Shimano Ultegra, 10-speed
CRANKSET
Shimano Ultegra SL
CHAINRINGS
50 x 34t
BOTTOM BRACKET
Shimano Ultegra SL, Hollowtech II
COCKPIT
STEM
Specialized Pro-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable
HANDLEBARS
Specialized Pro, 2014 alloy, short-drop, ergonomic shaping, 31.8mm
TAPE
Body Geometry Bar Phat, cork ribbon w/ 4mm gel padding
SADDLE
Body Geometry Toupé Gel, carbon reinforced base, Cr-Mo rails
SEATPOST
Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm
BRAKES
FRONT BRAKE
Shimano Ultegra SL
REAR BRAKE
Shimano Ultegra SL
BRAKE LEVERS
Shimano Ultegra SL, 10-speed STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage, black body, w/ toe clip and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | 64 | |
|---|---|---|---|---|---|---|---|
| Ground-Top | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm | 70mm |
| Seat-Tube Angle | 59° | 59° | 59° | 56° | 53° | 56° | 53° |
| Head-Tube Angle | 582° | 588° | 595° | 606° | 621° | 628° | 643° |
| Chain-Stay Length | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| Top-Tube Length, Horizontal | 74mm | 75.5mm | 73.5mm | 73.25mm | 72.5mm | 73mm | 72.5mm |
| Front-Center | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm | 260mm |
| Handle-Bar Width | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
| Seat-Tube Length, B-B Center to Top | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm | 420mm |
| Fork Rake | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm | 1053mm |
| B-B Drop | 72mm | 72mm | 72mm | 72.5mm | 72.5mm | 73mm | 73mm |
| Stack | 455mm | 485mm | 505mm | 525mm | 545mm | 575mm | 600mm |
| Reach | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm | 615mm |
| Trail | 737mm | 759mm | 780mm | 801mm | 824mm | 849mm | 875mm |
