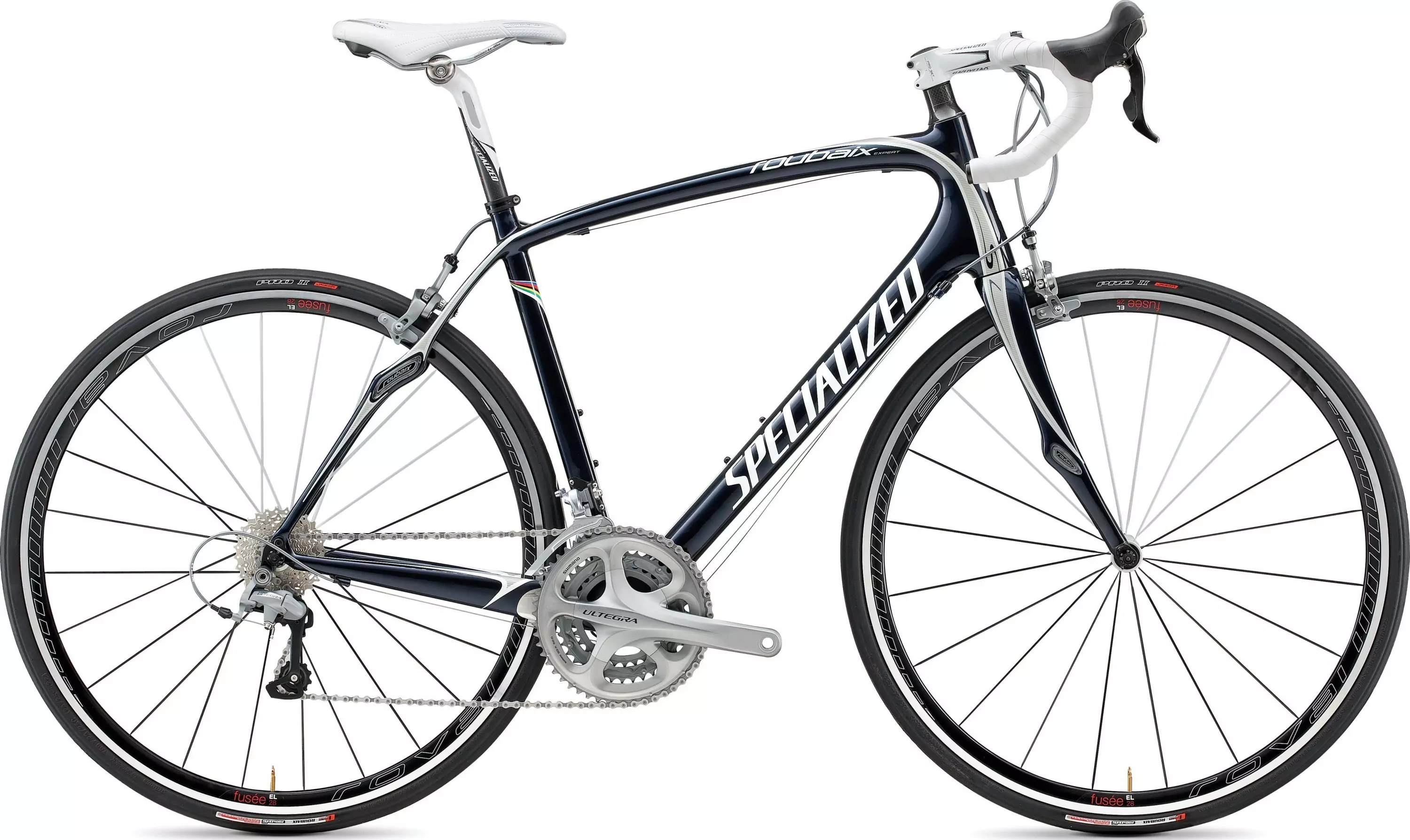

2010 Roubaix Expert Triple
0 Reviews
The bike that invented the Endurance Road category also goes by the name "nothing…
Product Details
- FACT carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable
- FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort
- Adjustable 4-position, 3D-forged alloy stem with 31.8mm bar clamp for strength and versatile positioning
- Specialized Pro ergonomic alloy handlebars for a comfortable, natural position, no matter how long the ride
- Avatar Gel saddle features hollow Cr-Mo rails and Body Geometry gel padding for all-day performance and comfort
- Advanced FACT IS 9r carbon frame with Endurance Road geometry and Zertz inserts for the perfect blend of stiffness, compliance and light weight
Technical Specifications
FRAMESET
FRAME
Specialized Roubaix FACT 9r carbon, FACT IS construction, compact race design w/ Zertz inserts
FORK
Roubaix full carbon monocoque, w/ Zertz inserts
HEADSET
Aheadset Stainless Balls w/ top cap w/ 20mm of spacers
SEAT BINDER
Alloy, 32.6mm clamp
WHEELS
FRONT TIRE
Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE
Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
FRONT WHEEL
Roval Fusee EL
REAR WHEEL
Roval Fusee EL
DRIVETRAIN
FRONT DERAILLEUR
Shimano Ultegra
REAR DERAILLEUR
Shimano Ultegra
SHIFT LEVERS
Shimano Ultegra STI, flight deck compatible
CASSETTE
Shimano Ultegra, 10-speed, 11-28t
CHAIN
Shimano Ultegra
CRANKSET
Shimano Ultegra
CHAINRINGS
52 x 39 x 30T
BOTTOM BRACKET
With Crankset
COCKPIT
STEM
Specialized Pro-Set, 3D forged 7050 aluminum, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized Pro Ergo 2014 alloy
TAPE
Specialized Pro Gel with neoprene pads
SADDLE
Body Geometry Avatar Gel w/ hollow Cr-Mo rails
SEATPOST
Specialized FACT carbon w/ Zertz insert, 27.2mm
BRAKES
FRONT BRAKE
Shimano Ultegra
REAR BRAKE
Shimano Ultegra
BRAKE LEVERS
Shimano Ultegra STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° |
| Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 582mm | 588mm | 595mm | 606mm | 621mm | 628mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 737mm | 759mm | 780mm | 801mm | 824mm | 849mm |
| Seat-Tube Length, B-B Center to Top | 445mm | 475mm | 495mm | 515mm | 540mm | 565mm |
| Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
| Trail | 59mm | 59mm | 59mm | 56mm | 56mm | 53mm |
| Wheelbase | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
