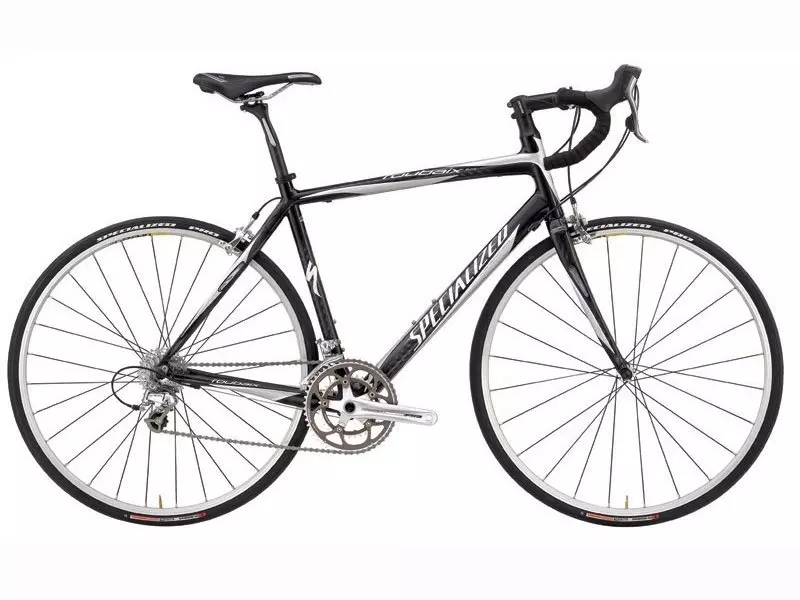

2008 Roubaix Elite Compact

0 Reviews

Performance Endurance Road FROM THE SPRING CLASSICS TO YOUR LOCAL CENTURY The Roubaix…

Color:

Silver/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Performance Endurance Road FROM THE SPRING CLASSICS TO YOUR LOCAL CENTURY The Roubaix pioneered the endurance road category and is still the best bike for riding longer and faster.Inside Tech You can't beat this system. The Roubaix Pro features a proprietary FACT carbon crank and bottom bracket system that, because it was designed as an integrated part of the Roubaix chassis, cuts weight (an amazing 148 grams) while boosting pedaling efficiency. Useful Links FACT Carbon Manuals/Tech Bulletins

Specialized FACT 6r carbon frame, triple monocoque construction, compact design, Zertz inserts
Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts
Shimano 105 10-speed STI shifters and rear derailleur, short cage
SRAM OG-1070 cassette, 10-speed 11-28t
50x34T chainrings
Mavic Open Sport, double wall rims, machined sidewalls w/ eyelets
Specialized forged alloy, 24/28 hole hubs, double sealed bearings, straight pull spokes, QR

Technical Specifications

FRAMESET

FRAME

Specialized FACT 6r carbon, triple monocoque construction, compact design, Zertz inserts

FORK

Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Zertz inserts

HEADSET

Specialized Mindset Plus, 1 1/8"" integrated threadless, cartridge sealed bearings, alloy 20mm cone w/ one 10mm and two 5mm alloy spacers

SEAT BINDER

Specialized CNC, alloy, 32.6mm clamp

WHEELS

FRONT TIRE

Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI, Flak Jacket

REAR TIRE

Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI, Flak Jacket

RIMS

Mavic Open Sport, double wall rim, machined sidewalls w/ eyelets

FRONT HUB

Specialized forged alloy, 24 hole, double sealed bearings, straight pull spokes, QR

REAR HUB

Specialized forged alloy, 28 hole, double sealed bearings, straight pull spokes, cassette, QR

SPOKES

Stainless 14g, straight-pull

DRIVETRAIN

FRONT DERAILLEUR

Shimano 105, 31.8mm clamp, bottom pull

REAR DERAILLEUR

Shimano 105, short cage

SHIFT LEVERS

Shimano 105, 10-speed STI, flight deck compatible

CHAIN

Shimano 105, 10-speed

CRANKSET

FSA Gossamer MegaExo, 2-piece crankset

CHAINRINGS

50x34T

BOTTOM BRACKET

FSA MegaExo, integrated exterior cartridge bearings, alloy

COCKPIT

STEM

Specialized Comp-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4-position adjustable

HANDLEBARS

Specialized Zertz Comp, 6061 alloy, Zertz damper, short-reach drop, ergonomic top shaping, 31.8mm

SADDLE

Specialized Avatar, microfiber cover, gel padding, Cr-Mo Rails

BRAKES

FRONT BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

REAR BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

BRAKE LEVERS

Shimano 105, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Composite body test ride pedals

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Ground-Top	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Seat-Tube Angle	59°	59°	59°	56°	53°	56°
Head-Tube Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Head-Tube Angle	582°	588°	595°	606°	621°	628°
Chain-Stay Length	49mm	49mm	49mm	49mm	49mm	49mm
Top-Tube Length, Horizontal	74mm	75.5mm	73.5mm	73.25mm	72.5mm	73mm
Front-Center	125mm	145mm	165mm	190mm	215mm	235mm
Handle-Bar Width	300mm	350mm	350mm	350mm	350mm	350mm
Stand-Over Height	75mm	90mm	100mm	100mm	110mm	120mm
Seat-Tube Length, B-B Center to Top	412mm	412mm	415mm	415mm	418mm	420mm
Fork Rake	983mm	989mm	1000mm	1010mm	1029mm	1038mm
B-B Drop	72mm	72mm	72mm	72.5mm	72.5mm	73mm
Stack	450mm	480mm	500mm	520mm	540mm	570mm
Reach	518mm	537mm	548mm	565mm	582mm	600mm
Trail	739mm	760mm	781mm	802mm	826mm	850mm
Wheelbase	400mm	400mm	420mm	420mm	440mm	440mm
