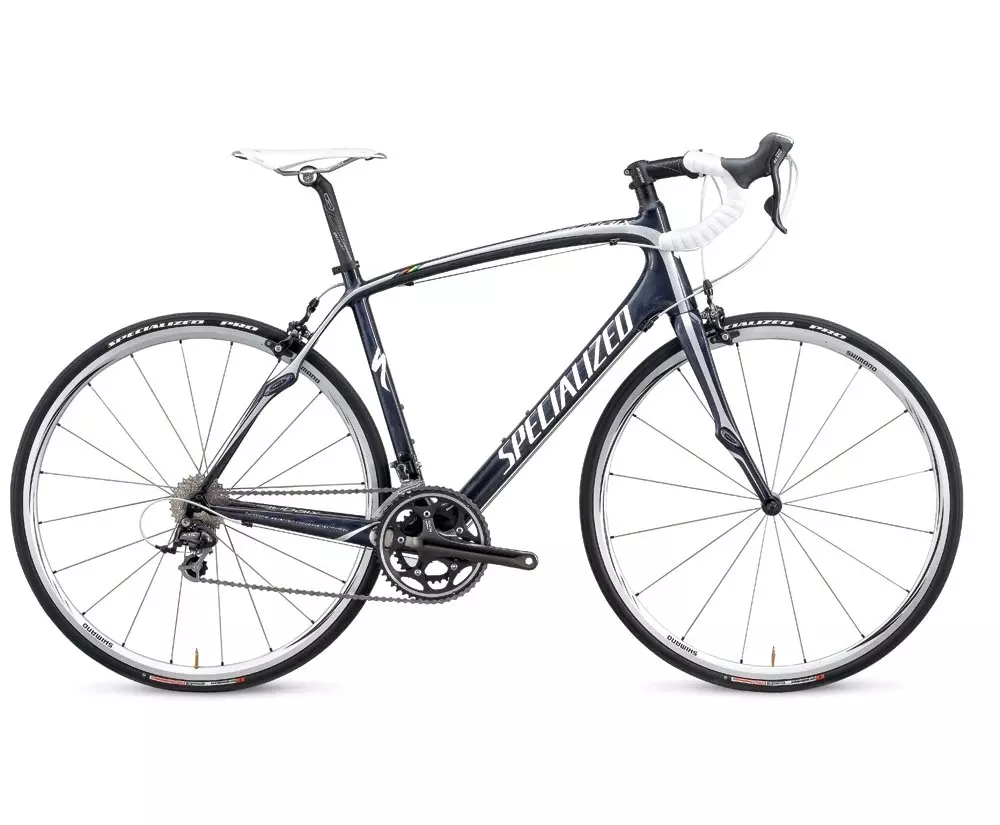

2009 Roubaix Comp

0 Reviews

SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles…

Product Details

SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."

The compact Roubaix Comp C2 puts our FACT 7r carbon to work in a more-upright-positioned race design, the vibration-absorbing Zertz inserts add an additional layer of comfort.
The Specialized FACT carbon monocoque fork is full carbon—legs, crown, steerer—and features an oversized lower bearing race for precision and strength, Zertz inserts soak up the chatter.
The4-position-adjustable Specialized Comp-Set stem easily matches your comfort and speed needs.
The Specialized Pro handlebars feature a short drop and ergonomic shape for all-day comfort.
With a carbon-reinforced base and scientifically proven Body Geometry shape, the Toupé Gel saddle is all about strength and comfort.
The Zertz insert in the Pro SL FACT carbon seatpost soaks up vibrations without wasting your energy.

Technical Specifications

FRAMESET

FRAME

Specialized FACT 7r carbon, triple monocoque construction, compact race design, Zertz inserts

FORK

Specialized FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts.

HEADSET

Specialized Campy style, 1-3/8"" integrated threadless, sealed cartridge bearings, 20mm alloy cone w/ one 10mm and two 5mm alloy spacers

SEAT BINDER

Specialized CNC alloy, 32.6mm

WHEELS

FRONT TIRE

Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI

REAR TIRE

Specialized Roubaix Pro, 700x23/25c, aramid bead, 120TPI

INNER TUBES

Specialized standard presta tube

RIMS

Shimano RS-10

FRONT HUB

Shimano RS-10, QR

REAR HUB

Shimano RS-10, cassette, QR

SPOKES

Stainless

DRIVETRAIN

FRONT DERAILLEUR

Shimano 105, braze-on clamp

REAR DERAILLEUR

Shimano 105, short cage

SHIFT LEVERS

Shimano 105, 10-speed STI, flight deck compatible

CASSETTE

Shimano 105, 10-speed, 12-27t

CHAIN

Shimano 105, 10-speed

CRANKSET

Shimano 105

CHAINRINGS

50 x 34t

BOTTOM BRACKET

Shimano 105, Hollowtech II

COCKPIT

STEM

Specialized Comp-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable

HANDLEBARS

Specialized Pro, 2014 alloy, short-drop, ergonomic shaping, 31.8mm

TAPE

Body Geometry Bar Phat, cork ribbon w/ 4mm gel padding

SADDLE

Body Geometry Toupé Gel, carbon reinforced base, Cr-Mo rails

SEATPOST

Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm

BRAKES

FRONT BRAKE

Shimano 105

REAR BRAKE

Shimano 105

BRAKE LEVERS

Shimano 105, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Silver cage, black body, w/ toe clip and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Ground-Top	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Seat-Tube Angle	59°	59°	59°	56°	53°	56°
Head-Tube Angle	582°	588°	595°	606°	621°	628°
Chain-Stay Length	49mm	49mm	49mm	49mm	49mm	49mm
Top-Tube Length, Horizontal	74mm	75.5mm	73.5mm	73.25mm	72.5mm	73mm
Front-Center	125mm	145mm	165mm	190mm	225mm	245mm
Handle-Bar Width	0mm	0mm	0mm	0mm	0mm	0mm
Seat-Tube Length, B-B Center to Top	412mm	412mm	415mm	415mm	418mm	420mm
Fork Rake	983mm	989mm	1000mm	1010mm	1029mm	1038mm
B-B Drop	72mm	72mm	72mm	72.5mm	72.5mm	73mm
Stack	440mm	475mm	495mm	515mm	535mm	565mm
Reach	518mm	537mm	548mm	565mm	582mm	600mm
Trail	715mm	737mm	755mm	776mm	802mm	827mm
