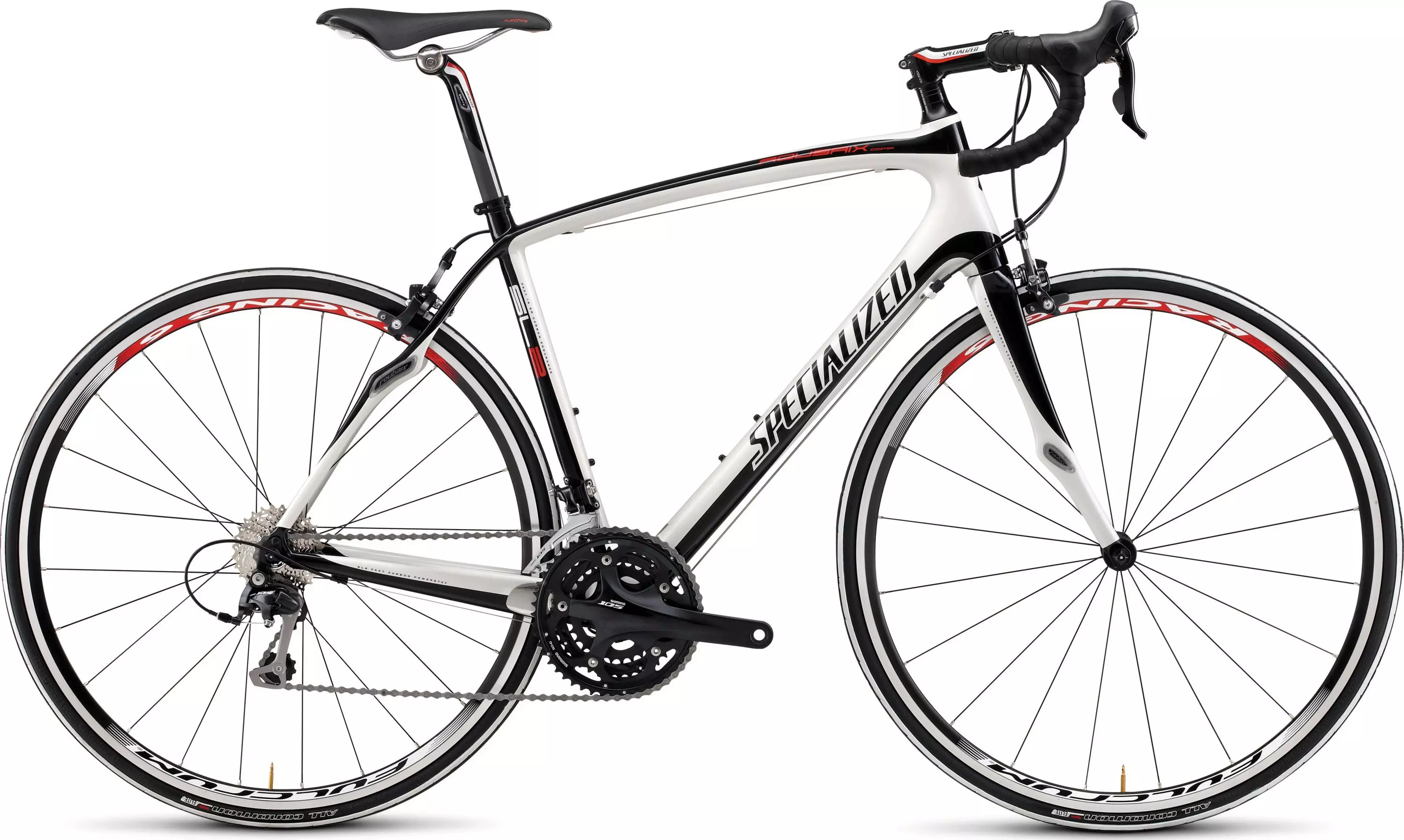

2011 Roubaix Comp Triple

Roubaix Comp Triple

Technical Specifications

COCKPIT

SEAT BINDER

Specialized, alloy, 27.2mm

WHEELS & TIRES

INNER TUBES

Standard presta valve

DRIVETRAIN

CHAINRINGS

48/38/28, w/ chainguard

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	125mm	145mm	165mm	190mm	225mm	245mm
Seat-Post Length	0mm	0mm	0mm	0mm	0mm	0mm
Head-Tube Angle	72°	72°	72°	72.5°	72.5°	73°
Chain-Stay Length	412mm	412mm	415mm	415mm	418mm	420mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	582mm	588mm	595mm	606mm	621mm	628mm
Stand-Over Height	730mm	756mm	776mm	798mm	829mm	851mm
Seat-Tube Length, B-B Center to Top	445mm	475mm	495mm	515mm	540mm	565mm
Fork Rake	49mm	49mm	49mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Trail	59mm	59mm	59mm	56mm	56mm	53mm
Wheelbase	983mm	989mm	1000mm	1010mm	1029mm	1038mm
