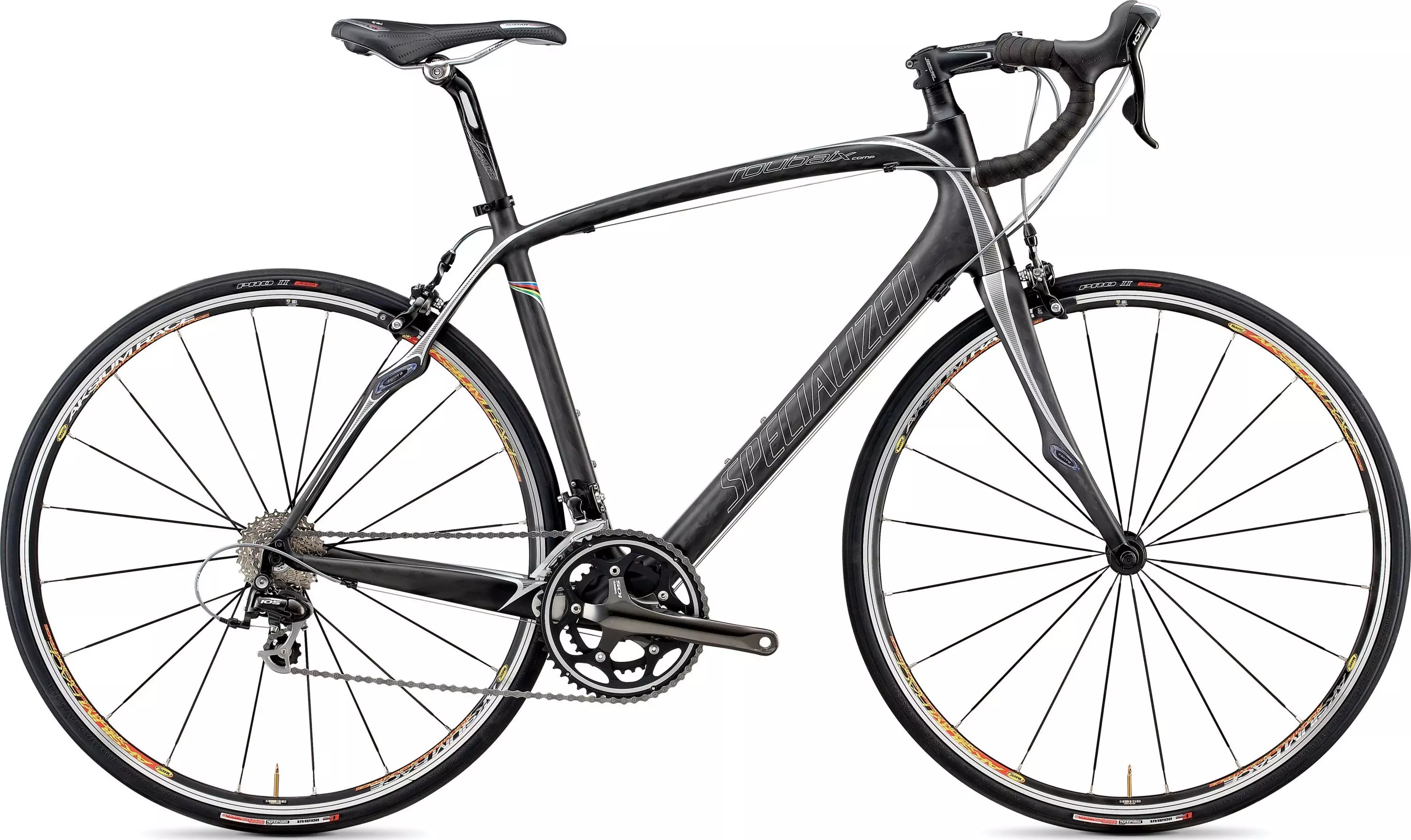

2010 Roubaix Comp Compact
0 Reviews
The bike that invented the Endurance Road category also goes by the name "nothing…
Product Details
The bike that invented the Endurance Road category also goes by the name "nothing is smoother and faster". Combining best-in-class vertical compliance from the seatstays and top tube with excellent torsional rigidity from the down tube, head tube and bottom bracket, the Roubaix finds a way to not only make the long ride comfortable, but also make it fast
FACT carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable
FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort
Adjustable 4-position, 3D-forged alloy stem with 31.8mm bar clamp for strength and versatile positioning
Specialized Pro ergonomic alloy handlebars for a comfortable, natural position, no matter how long the ride
Avatar Gel saddle features hollow Cr-Mo rails and Body Geometry gel padding for all-day performance and comfort
FACT 7r carbon triple monocoque frame with Endurance Road geometry and Zertz inserts for the perfect blend of stiffness, compliance and light weight
Technical Specifications
FRAMESET
FRAME
Specialized Roubaix FACT 7r carbon, triple monocoque construction, compact race design w/ Zertz inserts
FORK
Roubaix full carbon monocoque, w/ Zertz inserts
HEADSET
Alloy, 1-1/8 - 1-3/8"", w/ 20mm of spacers
SEAT BINDER
Forged alloy, 32.6mm
WHEELS
FRONT WHEEL
Mavic Aksium
REAR WHEEL
Mavic Aksium
FRONT TIRE
Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE
Specialized Roubaix Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano 105 STI, flight deck compatible
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
CASSETTE
Shimano 105, 10-speed, 12-27t
CRANKSET
Shimano 105
CHAINRINGS
50 x 34T
BOTTOM BRACKET
With Crankset
CHAIN
Shimano 105
COCKPIT
HANDLEBARS
Specialized Pro Ergo 2014 alloy
STEM
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
TAPE
Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SADDLE
Body Geometry Avatar Gel w/ hollow Cr-Mo rails
SEATPOST
Specialized Expert, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Shimano 105
REAR BRAKE
Shimano 105
BRAKE LEVERS
Shimano 105 STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° |
| Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 582mm | 588mm | 595mm | 606mm | 621mm | 628mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 737mm | 759mm | 780mm | 801mm | 824mm | 849mm |
| Seat-Tube Length, B-B Center to Top | 445mm | 475mm | 495mm | 515mm | 540mm | 565mm |
| Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
| Trail | 59mm | 59mm | 59mm | 56mm | 56mm | 53mm |
| Wheelbase | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
