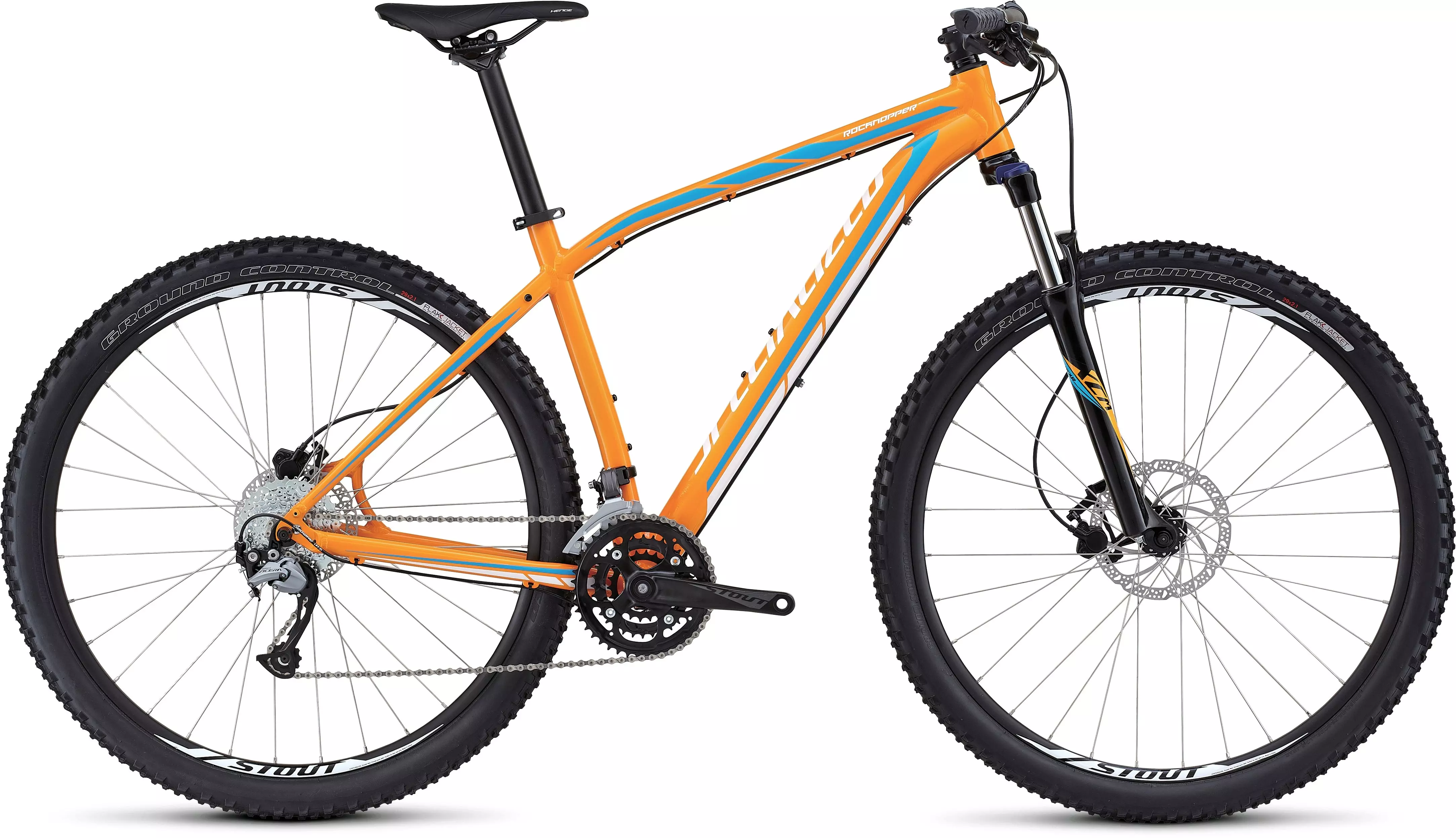

2016 Rockhopper Sport 29
5
1 Reviews
Maybe you're finding your legs on the singletrack, or perhaps you're just dirt-curious?…
Product Details
Maybe you're finding your legs on the singletrack, or perhaps you're just dirt-curious? Either way, the Rockhopper Sport 29 is the only bike you need to live out your trail fantasies. It places a focus on long haul performance, and we're not talking about 100-mile trail rides. Its corrosion-resistant hardware is built to last, while all of the components are purposely selected for their balance of strength and capability. And setting everything over the top is our Trail 29 Geometry that's guaranteed to leave you feeling planted, confident, and efficient out there on the dirt.
The frame is constructed from A1 Premium aluminum in order to provide a lightweight, durable platform to support our acclaimed Trail 29 Geometry. Combined, you get a bike that's efficient on climbs and eager on descents.
Custom SR Suntour XCM 29 fork pairs a coil spring with our Multi-Circuit Damping technology to eliminate any "pogo" effect by delivering 80/100mm (size-specific) of hydraulic damped suspension and rebound that smooths out rough terrain.
With reliable traction, puncture-resistance, and sheer speed over the dirt, our 29x2.1" Ground Control Sport tires will keep you rolling with confidence over almost any terrain.
29" alloy Stout rims have been laced to our Stout hubs to form wheels that allow you mow over everything in sight, climb gracefully, and get to the bottom of the trail eager for more.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Trail 29 Geometry ORE down tube, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger
HEADSET
1-1/8"" upper/lower, ZeroStack 44, steel cups, loose ball bearings
SEAT BINDER
Alloy, nylon/glass fiber washer, QR, 34.9mm
SUSPENSION
FORK
Custom SR Suntour XCM 29, custom Multi-Circuit Damping, coil spring, S: 80mm travel, M/L/XL: 100mm travel, preload adjust, 1-1/8"" steerer, alloy lowers, Hi-Ten 30mm stanchions, disc mount
WHEELS
RIMS
Specialized Stout 29, disc, alloy, double-wall, pin joint, 25mm inner width, 32h
FRONT HUB
Specialized Stout, Hi Lo disc, alloy, double-sealed, ground race, QR, 32h
REAR HUB
Specialized Stout, Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Ground Control Sport, 29x2.1"", 60TPI, wire bead, Flak Jacket protection
REAR TIRE
Ground Control Sport, 29x2.1"", 60TPI, wire bead, Flak Jacket protection
INNER TUBES
Standard, Schrader valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Altus, high mount, bottom swing, dual pull
REAR DERAILLEUR
Shimano Acera rear derailleur, Shadow design, 9-speed
SHIFT LEVERS
Shimano Altus, RapidFire Plus, 9-speed
CASSETTE
Sunrace, 9-speed, 11-34t
CHAIN
KMC X9, 9-speed, w/ reusable MissingLink
CRANKSET
Stout crankset, forged alloy construction, 9-speed, square taper BB, 44/32/22T
BOTTOM BRACKET
Square taper, cartridge bearings
COCKPIT
HANDLEBARS
Specialized Stout, flat bar, double-butted 6061 alloy, 10-degree backsweep, 4-degree upsweep, 31.8mm
GRIPS
Specialized Body Geometry XCT, Kraton w/ gel, lock-on, closed end
SADDLE
Body Geometry mountain, steel rails, 143mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware
STEM
3D-forged alloy, 4-bolt, 6-degree rise
BRAKES
FRONT BRAKE
Tektro Auriga, hydraulic disc, organic pads, 180mm rotor
REAR BRAKE
Tektro Auriga, hydraulic disc, organic pads, 160mm rotor
BRAKE LEVERS
Tektro Auriga, hydraulic, reach adjust
ACCESSORIES
PEDALS
Plastic, 9/16"", w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
