2018 Riprock 24
3.7
3 Reviews
Dirt, street, trails—the all-new Riprock 24 doesn't fit neatly into any one box.…
Product Details

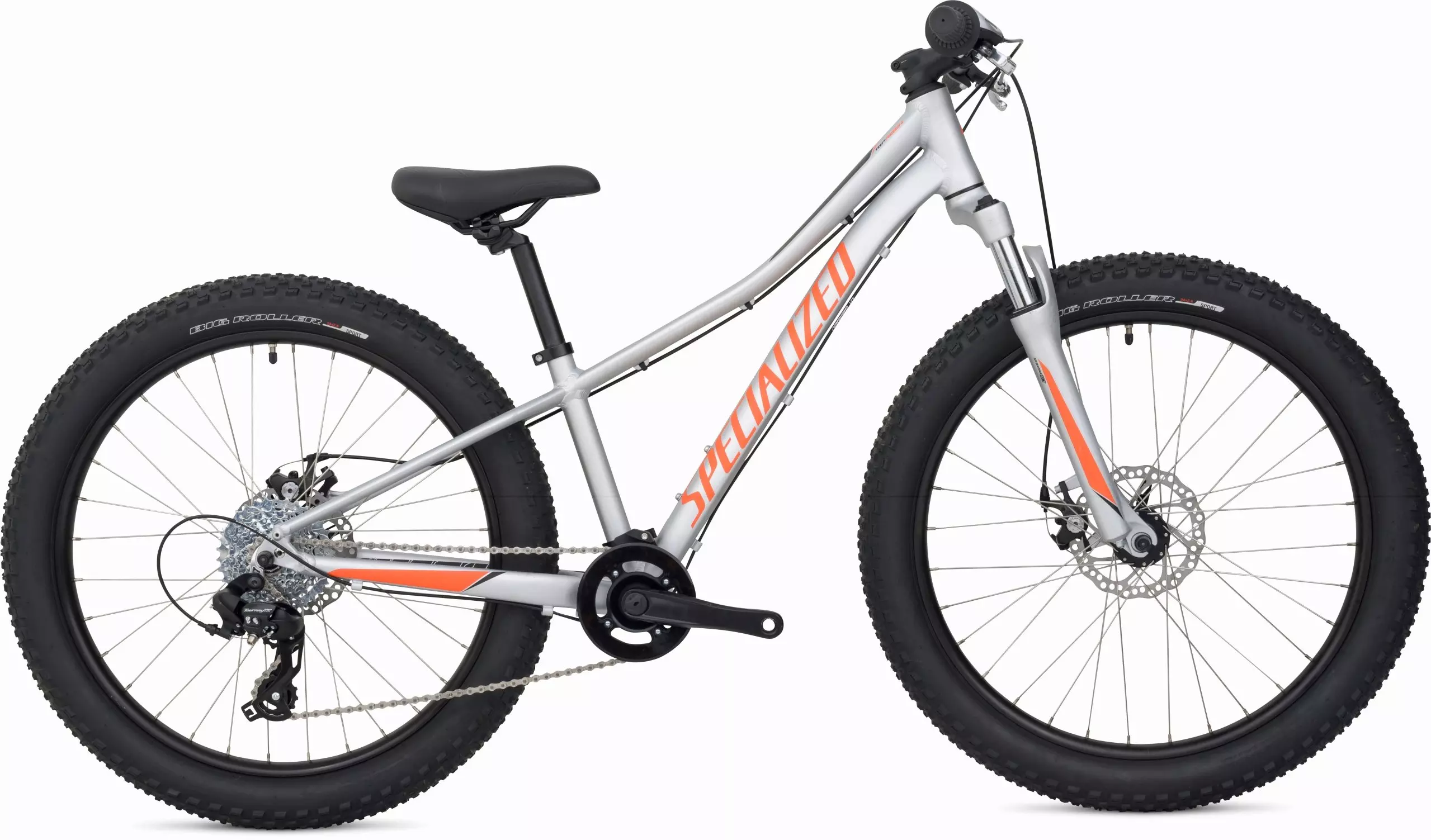

Dirt, street, trails—the all-new Riprock 24 doesn't fit neatly into any one box. It's purpose-built for fun, no matter how your little tike decides to ride it.
With a pair of our ultra-wide, 2.8-inch tires and comfortable, confident geometry, smiles are going to be guaranteed. That's because the big tires and 24-inch wheels provide heaps of traction, control, and confidence over any terrain, while a bump-eating, coil-sprung suspension fork will make quick work of absorbing any rough stuff.
Throw in a set of powerful, low maintenance mechanical disc brakes and a low standover that makes getting the perfect fit a total breeze, and you have yourself a bike that's going to make any kid want to rip and rock around the neighborhood till the sun goes down.
The A1 premium aluminum frame is lightweight and built to withstand the tough use by kids, while the geometry features an ultra-low standover that makes it easy for your little ones to fit on and grow with the bike.
Custom SR Suntour XCT fork features a sturdy construction and a coil spring that delivers 70mm of bump absorbing travel.
The 2.8-inch Big Roller tires not only ensure exceptional traction, but also offer greater ride quality, stability, and loads of fun.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, single-butted, ZeroStack head tube, 135mm rear hub spacing, forged dropouts, replaceable derailleur hanger
FORK
SR Suntour XCT, coil spring, preload adjust, 70mm of travel
SEAT BINDER
Bolt type, alloy, 31.8mm
WHEELS
RIMS
24", double-wall aluminum, 32h
FRONT HUB
Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, QR, 32h
REAR HUB
Alloy, 6-bolt disc, 135mm spacing, 9-speed freehub, loose ball bearings, QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Big Roller, 60 TPI, wire bead, 24x2.8"
REAR TIRE
Big Roller, 60 TPI, wire bead, 24x2.8"
INNER TUBES
Schrader valve
DRIVETRAIN
REAR DERAILLEUR
Shimano Tourney TX, 8-speed
SHIFT LEVERS
Shimano Tourney, RevoShift, 8-Speed
CASSETTE
SunRace, 8-Speed, 11-34t
CHAIN
KMC Z51, EPT anti-rust w/ Missing Link™
CRANKSET
Forged alloy, 152mm
CHAINRINGS
Steel, 30T
BOTTOM BRACKET
BSA, square taper
COCKPIT
STEM
3D-forged alloy, 4-bolt, 6-degree rise, 25.4mm clamp, 60mm
HANDLEBARS
Double butted aluminum, 9-degree backsweep, 4-degree upsweep, 600mm width, 25.4mm
GRIPS
Specialized, slip-on
SADDLE
Specialized Kids Henge
SEATPOST
Alloy, single-bolt, 27.2mm
BRAKES
REAR BRAKE
Mechanical disc, organic pads, 160mm/6-bolt rotor, tool-less reach adjust brake lever
FRONT BRAKE
Mechanical disc, organic pads, 160mm/6-bolt rotor, tool-less reach adjust brake lever
ACCESSORIES
PEDALS
Nylon platform w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 11 | |
|---|---|
| Crank Length | 152mm |
| Handlebar Width | 600mm |
| Stem Length | 60mm |
| Seatpost Length | 300mm |
| Rake | 40mm |
| Seat Tube Length, Center to Top | 567mm |
| Standover Height | 608mm |
| Reach | 336.5mm |
| Head Tube Length | 115mm |
| Head Tube Angle | 69° |
| BB Height | 264mm |
| BB Drop | 61mm |
| Chainstay Length | 420mm |
| Wheelbase | 989mm |
| Top Tube Length, Horizontal | 510mm |
| Seat Tube Angle | 73° |
Manual Downloads
