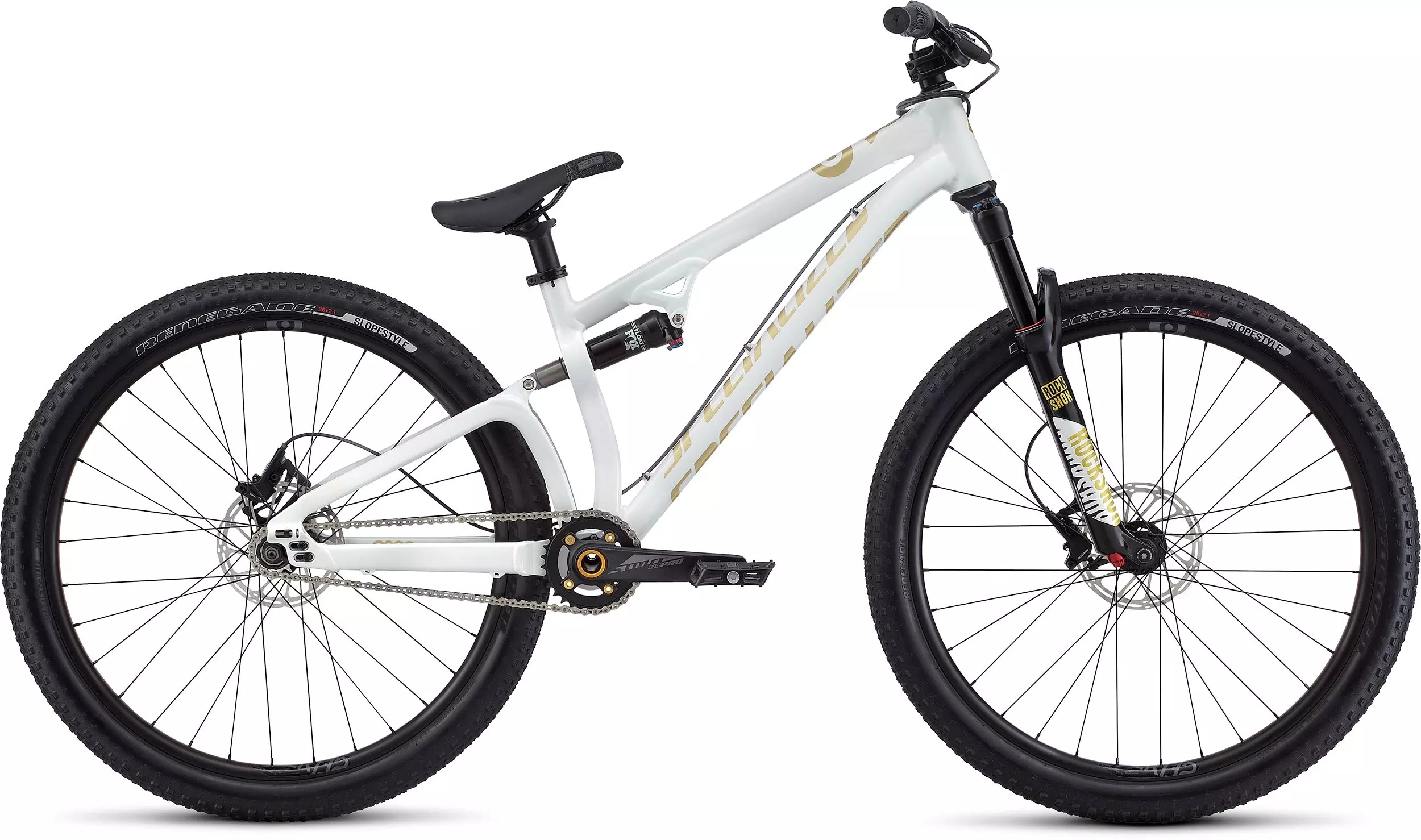

2017 P.Slope
5
1 Reviews
Whether you're going huge at the dirt park or tearing it up slopestyle, the P.Series…
Product Details
Whether you're going huge at the dirt park or tearing it up slopestyle, the P.Series P.Slope will complement your style. It features a durable single-pivot, full-suspension chassis that's designed to smooth out landings with its 100mm of travel up front and 85mm in the back. And in terms of spec, it comes equipped with tough components, like a FOX FLOAT rear shock, Stout DJ PRO cranks, and 26-inch wheels that'll launch you and treat you kindly on your way back down to earth.
The frame is constructed from A1 Premium Aluminum in order to keep the overall weight at a minimum, while also ensuring that the bike is plenty tough to take a hit. And when it comes to cool features that make the difference, you get forged horizontal dropouts and integrated chain tensioners to keep the rear wheel locked in place, ISCG 05 to run chainguides, and a tough, forged bottom bracket shell.
A FOX FLOAT rear shock with the all-new DPS damper sits at the rear, controlling a smooth 85mm of travel. It features a new dual-piston design that let's you select your level of firmness, plus a revamped air spring that creates a more supple ride quality than ever.
The RockShox Pike DJ fork includes the same stout 35mm chassis as its big brother, along with the revolutionary Charger damper and Solo Air system. The only real difference is in its 100mm of travel. But what does this mean for you? It means that you get a stiff construction that'll power through berms, and serve-up loads of bottom-out progression upon landing.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, concentric bottom bracket, fully-butted tapered head tube, forged BB30 bottom bracket shell, integrated ISCG '05 tabs, forged horizontal dropouts, integrated chain tensioners, 85mm of travel
SEAT BINDER
Alloy, single bolt, 34.9mm
SUSPENSION
REAR SHOCK
FOX FLOAT w/DPS damper, 200x50mm, 85mm of travel
FORK
RockShox Pike DJ 26, Solo Air spring, 1-1/8x1.5"" tapered aloy steer, external rebound, Motion Control low-speed compression, tooled Floodgate, 32mm alloy stanchions and mag lowers, 15x100mm Maxle thru-axle
WHEELS
REAR TIRE
Renegade Slopestyle, 26x2.1"", 60TPI, wire bead
INNER TUBES
Standard, Schrader valve
RIMS
P.26, alloy, double-wall, triple void, 32mm inner width, 32h
FRONT HUB
Specialized disc, alloy, sealed cartridge bearings,15x100mm thru-axle, 32h
REAR HUB
P. Series Dirt Jump, alloy disc hub, sealed cartridge bearings, single speed w/ 14t 3/32"" cog, 10mm Cr-Mo axle, 32h
SPOKES
Stainless, 14g, black
FRONT TIRE
Renegade Slopestyle, 26x2.1"", 60TPI, wire bead
DRIVETRAIN
CHAIN
KMC K810SL, single-speed, 1/2x3/32""
CRANKSET
Stout DJ PRO crankset, 30mm alloy spindle, 170mm
CHAINRINGS
30T
BOTTOM BRACKET
BB30, sealed cartridge bearings
COCKPIT
STEM
Forged Alloy, 31.8mm clamp, 40mm
HANDLEBARS
Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm
GRIPS
Specialized P.Grip, lock-on
SADDLE
Soder Dirt, steel rails
SEATPOST
Alloy, 2-bolt clamp, 12.5mm offset, 30.9mm, anti-corrosion hardware
BRAKES
FRONT BRAKE
SRAM Level, hydraulic disc, 160mm rotor
REAR BRAKE
SRAM Level, hydraulic disc, 160mm rotor
ACCESSORIES
PEDALS
Specialized Dirt Pedal, nylon body w/ molded pins, DU bushing
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 22.5" TT | |
|---|---|
| Crank Length | 170mm |
| Handlebar Width | 750mm |
| Stem Length | 40mm |
| Seatpost Length | 150mm |
| Seat-Tube Angle | 78.5° |
| Head-Tube Length | 123mm |
| Head-Tube Angle | 69.5° |
| Chain-Stay Length | 389mm |
| Front-Center | 682mm |
| B-B Drop | 16mm |
| B-B Height | 322mm |
| Bike Stand-Over Height | 712mm |
| Fork Length (full) | 493mm |
| Top-Tube Length (horizontal) | 541mm |
| Seat-Tube Length | 355mm |
| Stack | 580mm |
| Reach | 423mm |
| Trail | 78mm |
| Fork Rake/Offset | 45mm |
| Wheelbase | 1070mm |
