2015 P.Slope Frame

0 Reviews

If rippin' it up slopestyle or goin' huge at the local dirt jumps is your thing,…

Product Details

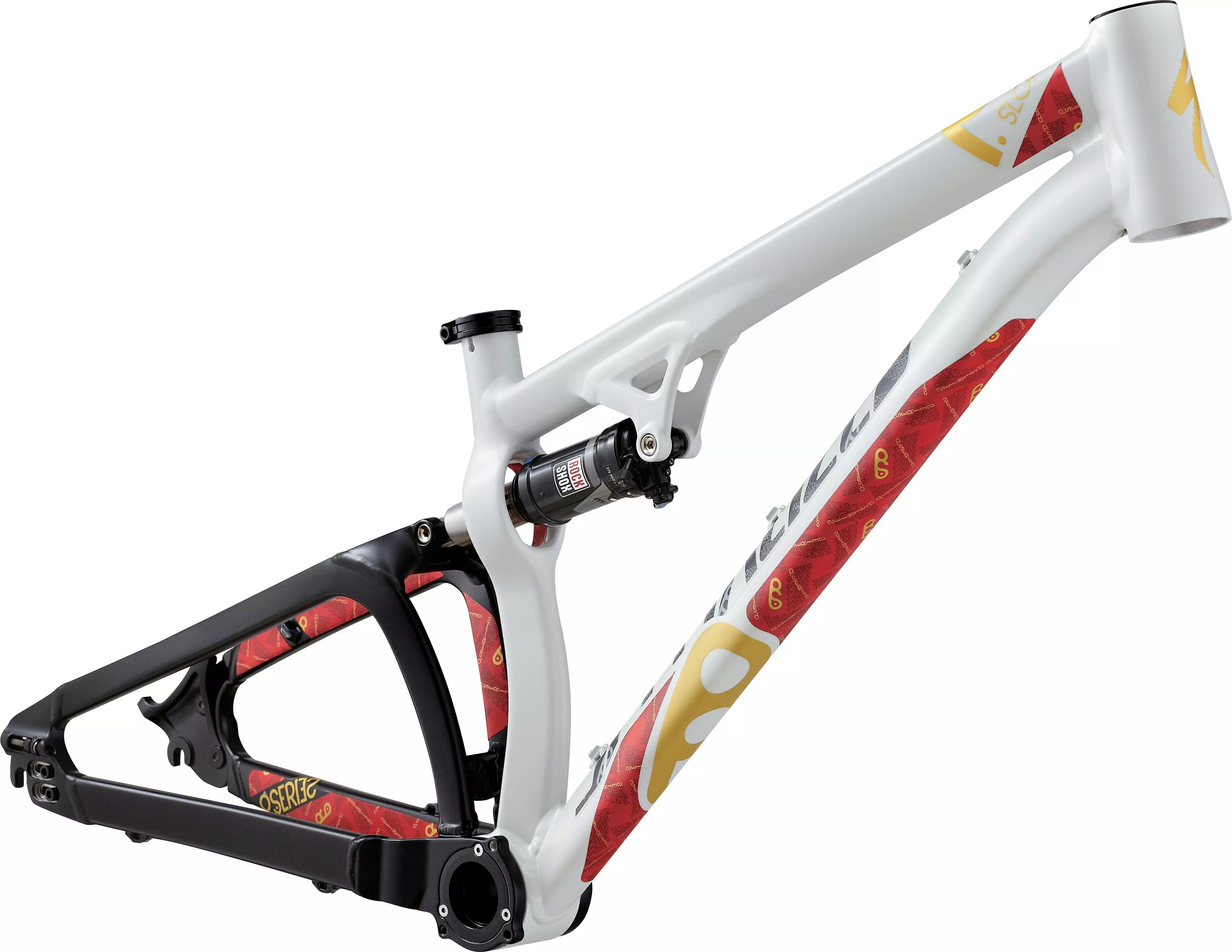

If rippin' it up slopestyle or goin' huge at the local dirt jumps is your thing, P.Slope is your bike. Featuring a tough, single pivot full suspension chassis, concentric around the BB, the P.Slope frame offers 85mm of travel out back to take the edge off the big hits while still riding like a hardtail. The P.Slope includes a RockShox Monarch RT3 shock, and a strong BB30 bottom bracket for re-entry back to Earth.

A1 Premium Aluminum, 85mm-travel, singlespeed-specific, fully butted slope style frame
Custom RockShox Monarch RT3, air shock, slopestyle tune w/ hydraulic damping for big air
1-1/8" FSA Orbit integrated headset w/ lower bearing reducer for flawless performance
Includes geared dropout to run drivetrain of choice
Includes 1-1/8" reducer crown race

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, w/ concentric BB, fully butted, tapered headtube, forged PF30 BB shell w/ integrated ISCG 05 tabs, forged horizontal dropouts w/ integrated chain tensioners, 85mm travel

HEADSET

FSA Orbit, 1-1/8"" upper, 1-1/2"" lower integrated, Campy style, full cartridge bearings, 5.3mm cone spacer, includes 1-1/8"" reducer crown race

SEAT BINDER

Forged alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom RockShox Monarch RT3, air shock, slopestyle tune, hydraulic w/ IFP damping, 3-position floodgate, dual flow rebound adj., 9mm alloy shaft, 200mmx50mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	1.0
Top Tube Length (Horizontal)	540.4mm
Top Tube Length (Actual)	577.1mm
Seat Tube Length, Center to Top	350mm
Bottom Bracket Drop	16mm
Bottom Bracket Height	325.5mm
Wheel Base	1065.5mm
Stack	577.2mm
Reach	423mm
Head Tube Length	122mm
Head Tube Angle	69.5°
Chainstay Length	385mm
Seat Tube Angle	78.5°
