Are you ready for a seriously good time? Hit the trails on the Pitch Expert 1X, with…

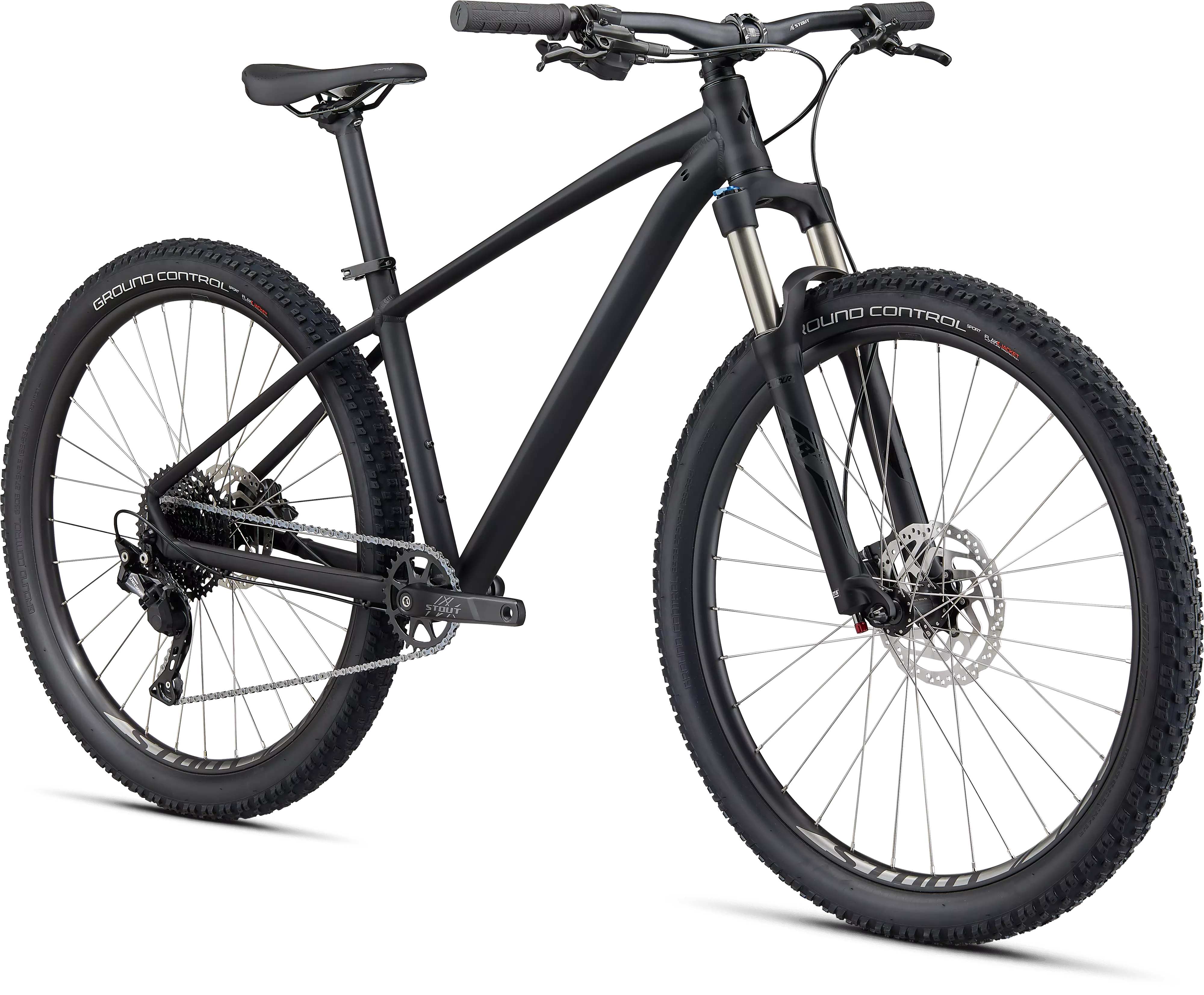

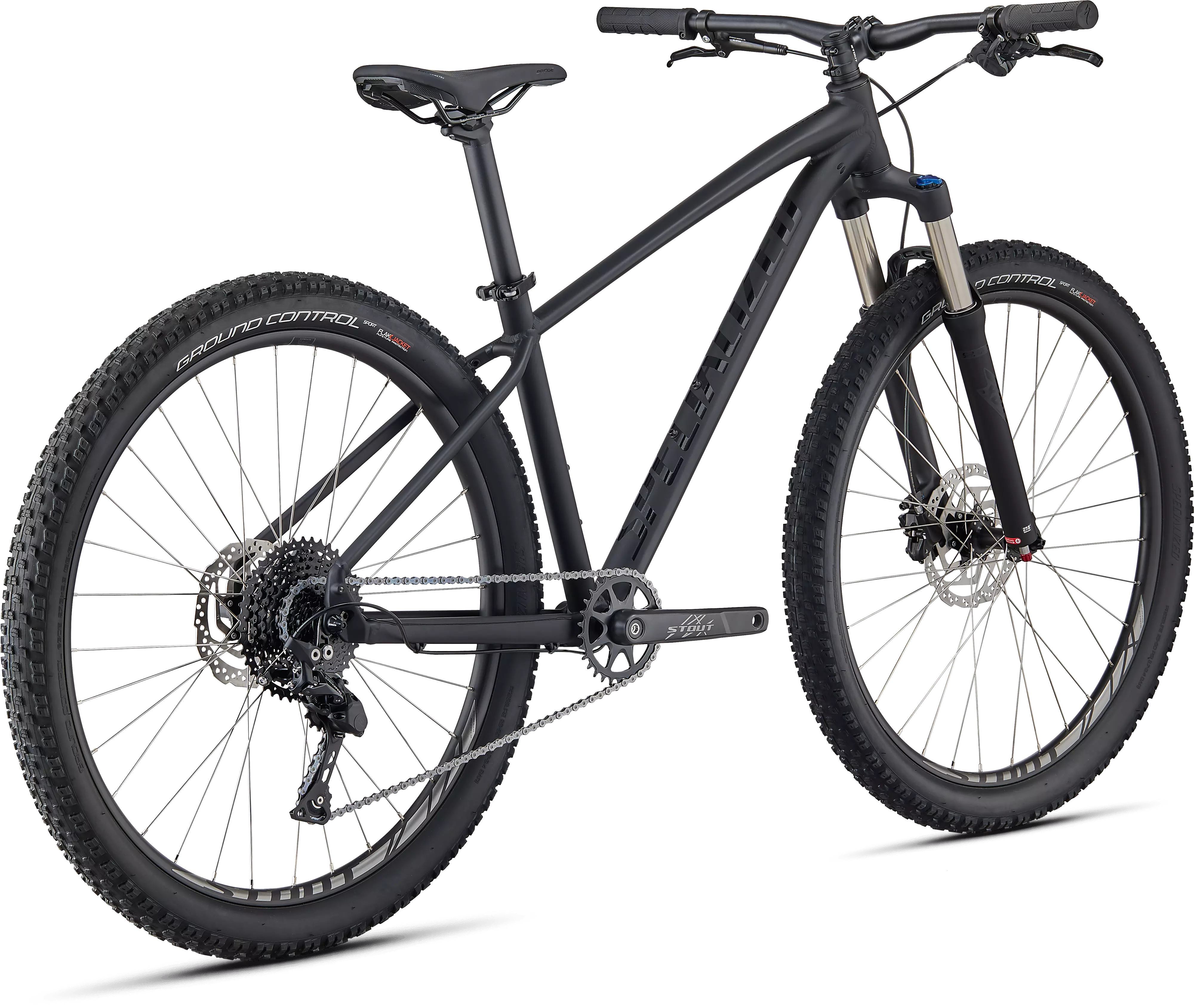

Are you ready for a seriously good time? Hit the trails on the Pitch Expert 1X, with a sturdy, lightweight aluminum frame for efficient climbing and dialed handling and high-quality suspension that turns any descent into the best rollercoaster you've ever been on.
TRAIL-OPTIMIZED GEOMETRY
The Sport Trail 27.5 geometry on the Pitch Expert 1X is designed for the perfect balance between stability and agility, with a position that keeps you perfectly balanced. The slack head angle offers precise line choice, while the short wheelbase mocks tight switchbacks.
SUREFIRE SHIFTING
The 10-speed Shimano Deore drivetrain features unparalleled performance in its class, with quick, quiet, precise shifts from the ergonomic Rapidfire Plus™ trigger shifter, and a clutch-style Shadow Plus™ rear derailleur that retains perfect chain tension to limit chain slap and bounce.
The air-sprung SR SunTour XCR air suspension fork offers 80/90/100mm of lightweight, size-specific travel.
Ground Control Sport tires in a wide 2.3-inch size keep the ride smooth and controlled.
A1 Premium Aluminum frame is the perfect balance of light weight and durability.
We take a lot of time to get frames right, from material to geometry, it’s the heart of a bike. Our A1 Premium Aluminum frame features a rugged TIG-welded construction for long-lasting performance, with careful tube shaping to optimize low weight and smooth ride. We top it all off with our Sport Trail 27.5 geometry, chosen to give you the most confident and comfortable ride.
We’re dedicated to our Sport Trail 27.5 geometry, so we use size-specific SR SunTour air suspension on the Pitch Expert 1X. What’s the point of that? Varying the travel amount by frame size helps keep standover heights reasonable for smaller riders, and keeps the head angle and steering constant, so every rider, no matter how small or tall, gets a great ride.
You know that feeling when you go into a corner a little too fast and can’t slow down? Yeah, us neither, at least not with these powerful Shimano MT-200 hydraulic disc brakes.
FRAME
A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
SEAT BINDER
Alloy, QR clamp, 34.9mm
FORK
SR SunTour XCR, air spring, 42mm offset, 80/100mm of travel (size-specific)
STEM
Stout 3D-forged alloy, 31.8mm, 6-degree rise
HANDLEBARS
Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
GRIPS
Specialized MTB Grip, lock-on
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
FRONT BRAKE
Shimano BR-MT200, hydraulic disc, 180/160mm
REAR BRAKE
Shimano BR-MT200, hydraulic disc, 160mm
REAR DERAILLEUR
Shimano Deore, Shadow Plus, GS cage, 10-speed
SHIFT LEVERS
Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display
CASSETTE
SunRace, 11-42t, 10-speed
CHAIN
KMC, X10, EPT anti-corrosion coating, 10-speed w/ Missing Link™
CRANKSET
Stout 1x, forged alloy
CHAINRINGS
30T
BOTTOM BRACKET
Square-tapered, 73mm, internal bearings
RIMS
Stout Trail 27.5, alloy, disc-specific, double-wall, 25mm internal width, 32h
FRONT HUB
Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h
REAR HUB
Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3"
REAR TIRE
Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3"
INNER TUBES
Schrader valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Crank Length | 165 | 170 | 170 | 175 | 175 |
Handlebar Width | 720mm | 720mm | 740mm | 740mm | 740mm |
Stem Length | 35 | 45 | 45 | 60 | 60 |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
Seatpost Length | 350 | 350 | 350 | 400 | 400 |
Stack | 562mm | 562mm | 585mm | 604mm | 618mm |
Reach | 380mm | 400mm | 420mm | 440mm | 460mm |
Head Tube Length | 95mm | 95mm | 100mm | 120mm | 135mm |
Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
BB Height | 310mm | 310mm | 310mm | 310mm | 310mm |
BB Drop | 43mm | 43mm | 43mm | 43mm | 43mm |
Trail | 94mm | 94mm | 94mm | 94mm | 94mm |
Fork Length, Full | 475mm | 475mm | 495mm | 495mm | 495mm |
Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm |
Front Center | 631mm | 651mm | 680mm | 708mm | 733mm |
Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm |
Wheelbase | 1063mm | 1083mm | 1112mm | 1139mm | 1165mm |
Top Tube Length, Horizontal | 542mm | 572mm | 599mm | 625mm | 649mm |
Bike Standover Height | 660mm | 690mm | 739mm | 766mm | 808mm |
Seat Tube Length | 310mm | 360mm | 415mm | 450mm | 510mm |
Seat Tube Angle | 74° | 73° | 73° | 73° | 73° |
