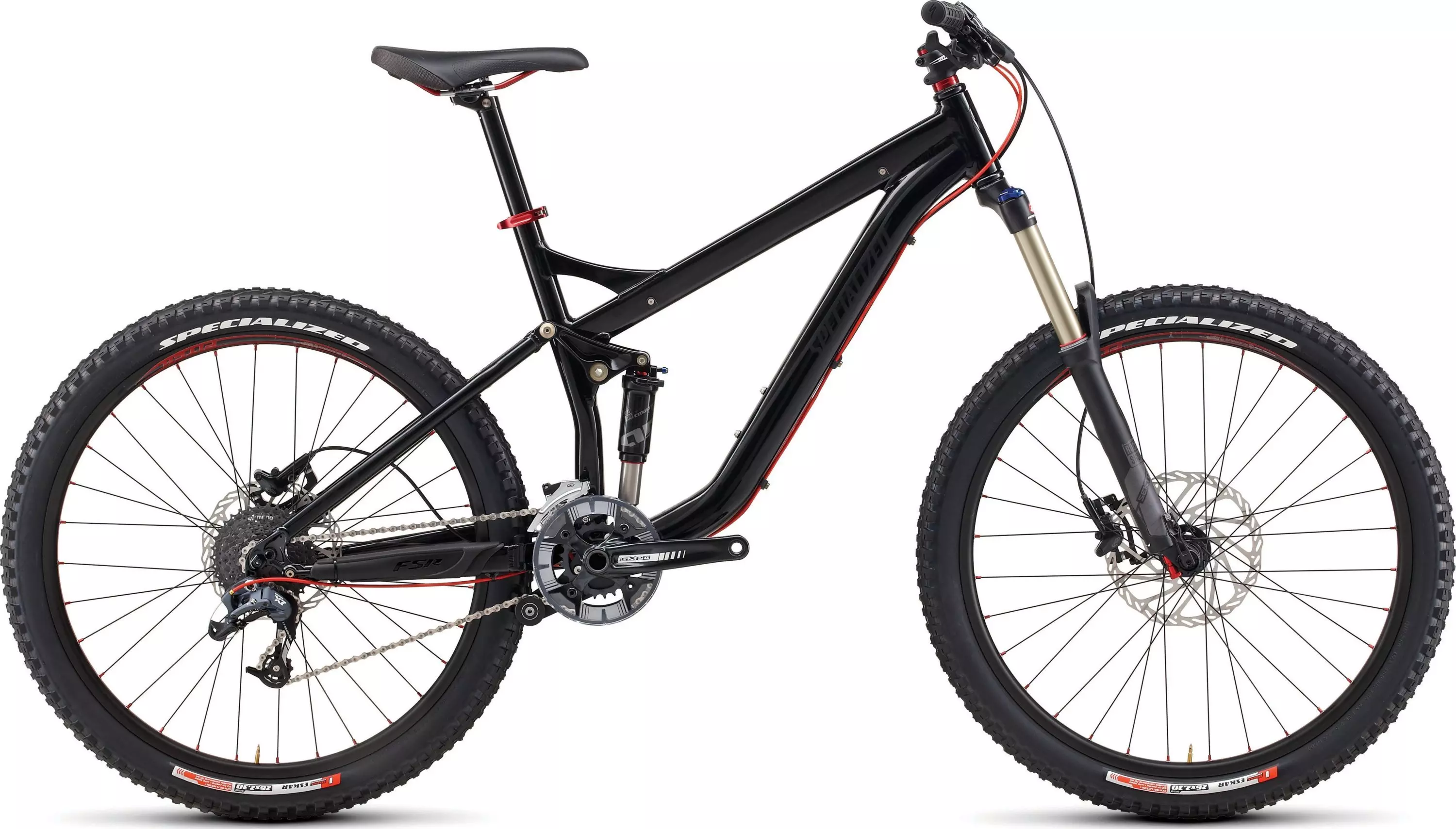

2011 Pitch Comp
4.5
2 Reviews
Out-of-the box with gobs of FSR suspension and quality specs, the Pitch allows you…
Product Details
Out-of-the box with gobs of FSR suspension and quality specs, the Pitch allows you to get your fill of exhilaration without having to empty your wallet.
Pitch disc-specific double wall rims with eyelets provide the durability needed for all-mountain terrain
RockShox Ario rear shock with adjustable rebound and lockout for efficient climbs and plush, controlled descents
Truvativ GXP2 2.1 2-piece crankset with 24/36t rings for stiffness, durability, and efficient climbing/descending
RockShox Sektor 150mm-travel coli spring fork with lightweight alloy steerer, rebound adjust, and Maxle Lite thru-axle for consistency and durability
Custom Avid Elixir 3 R SL hydraulic disc brakes and Juicy 3 levers with G3 Clean Sweep rotors and alloy-backed organic pads promise maximum stopping power
Technical Specifications
FRAMESET
FRAME
M4 alloy, double ORE down tube, DMD front derailleur mount, sealed cartridge bearing pivots, bolt on cable guides, replaceable hanger, 150mm travel
HEADSET
1 1/8"" threadless, loose ball
SEAT BINDER
34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
SUSPENSION
REAR SHOCK
RockShox Ario, air spring, rebound adj. and LO, 7.875x2.2""
FORK
Custom RockShox Sektor TK, Turn Key damper, coil spring, alloy steerer, reb adj., 20mm Maxle Lite axle, 150mm travel
WHEELS
RIMS
Pitch disc-specific, pin joint, eyelets, 26mm, 32h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, laser-etched logo, double sealed cartridge bearing, QR, 32h
SPOKES
1.8mm (15g) stainless
FRONT TIRE
Specialized Eskar Sport, 60 TPI, wire bead, 26x2.3""
REAR TIRE
Specialized Eskar Sport, 60 TPI, wire bead, 26x2.3""
INNER TUBES
Schraeder valve 26x2.0
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-M660-E SLX, double specific E-type for DMD, top swing, bottom pull
REAR DERAILLEUR
SRAM X.7, 9-speed, mid cage
SHIFT LEVERS
SRAM X.5, 9-speed, trigger
CASSETTE
Shimano HG30, 9-speed, 11-34t
CHAIN
KMC X9, 9-speed, w/ reuseable Missing Link
CRANKSET
Truvativ GXP2 2.1, 2-piece crank set, outboard bearing, S: 170mm, M/L: 175mm
CHAINRINGS
36A x 24S, 4-bolt, 104/64mm
BOTTOM BRACKET
SRAM GXP, outboard bearing
COCKPIT
SEATPOST
6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, S/M:350mm, others:400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS
Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8 degree back sweep, 6 degree up, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Other: Rocca
SADDLE
Specialized BG Enduro, 7mm steel rails
BRAKES
FRONT BRAKE
Custom Avid Elixir 3 R SL, hydraulic disc, tool-less reach adjust, alloy backed organic pads, G3 Clean Sweep rotor, S/M: 185mm, L/XL: 203mm
REAR BRAKE
Custom Avid Elixir 3 R SL, hydraulic disc, tool-less reach adjust, alloy backed organic pads, G3 Clean Sweep rotor, 185mm rotor
BRAKE LEVERS
Avid Elixir 3 SL hydraulic, tool-less reach adj.
ACCESSORIES
PEDALS
Alloy platform, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Ground-Top | 904mm | 910mm | 926mm | 948mm |
| Bottom Bracket Height - Low Setting | 345mm | 345mm | 345mm | 345mm |
| Top Tube Length (Horizontal) | 565mm | 586mm | 620mm | 645mm |
| Head Tube Height | 102mm | 108mm | 128mm | 150mm |
| Head Tube Angle - Low Setting | 67° | 67° | 67° | 67° |
| Seat Tube Angle (Actual) - Low Setting | 73° | 73° | 73° | 73° |
| Seat Tube Angle (Effective) - Low Setting | 76° | 76° | 76° | 76° |
| Top Tube Length (Actual) | 553mm | 574mm | 606mm | 632mm |
| Seat Tube Length - Center to Top | 420mm | 444mm | 484mm | 535mm |
| Wheel Base | 1138mm | 1159mm | 1196mm | 1223mm |
| Standover Height | 740mm | 752mm | 759mm | 765mm |
| Stack | 575mm | 581mm | 600mm | 620mm |
| Reach | 428mm | 446mm | 475mm | 495mm |
| Chainstay Length | 423mm | 423mm | 423mm | 423mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 720mm | 720mm | 720mm | 720mm |
| Stem Length | 60mm | 60mm | 75mm | 90mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm |
