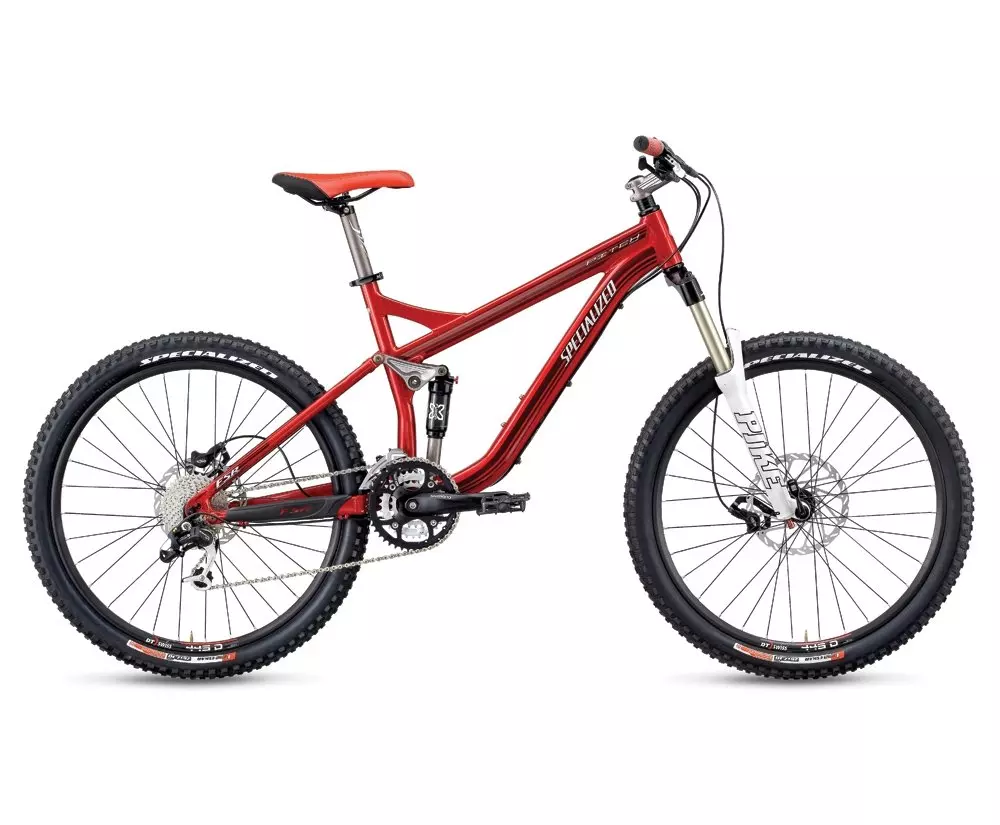

2009 Pitch Comp
5
1 Reviews
BORN FROM THE SAME BRAINS that brought you the Enduro SL, the Pitch™ levels even…
Product Details
BORN FROM THE SAME BRAINS that brought you the Enduro SL, the Pitch™ levels even the most demanding All Mountain terrain with a tough M4 alloy frame, 150mm of FSR suspension and a generous helping of top shelf specs—including RockShox, Fox and Avid components. "Regardless of whether you're on a budget or not, this bike is a capital-S Screamer." --BIKE Magazine, June 2009
Specialized-exclusive X-Fusion shock offers adjustable rebound and lockout control for fine-tuned performance.
The 140mm long-travel RockShox Pike fork is exclusive to Specialized, with coil U-Turn, alloy steerer and adjustable rebound. Includes Maxle 360 for improved steering precision and stiffness.
Specialized thin lock-on grips and alloy bar end caps provide slip-proof hand traction in rough conditions.
Avid Juicy hydraulic brakes provide exceptional stopping power and reliability, with alloy-backed pads and size-specific CleanSweep rotors.
Lightweight yet durable DT Swiss double wall rims deliver improved wheel strength and steering precision in rocky conditions.
Technical Specifications
FRAMESET
FRAME
2009 Pitch frame, M4 Manipulated Alloy tubing, double ORE downtube, DMD front derailleur mount, sealed cartridge bearing pivots, replaceable hanger, bolt on cable guides, 150mm travel
HEADSET
1-1/8"" Threadless, loose ball bearings w/ seals, black steel cups
SEAT BINDER
Alloy collar w/ QR, 34.9mm clamp ID
SUSPENSION
REAR SHOCK
X Fusion 02R, Custom tuned for Specialized, rebound adj., 7.875x2.25""
FORK
Rockshox Pike 327 for Specialized, 140mm travel, coil U-Turn, alloy steerer, rebound adj., Maxle 360 included
WHEELS
FRONT TIRE
Specialized Eskar Sport, 26x2.3"", 60 TPI, wire bead
REAR TIRE
Specialized Eskar Sport, 26x2.3"", 60 TPI, wire bead
INNER TUBES
Specialized 26x2.0"", schrader
RIMS
DT Swiss 445D, disc, 24mm, double wall, pin joint, eyelets, 32h
FRONT HUB
Specialized Stout disc, sealed cartridge bearing, 20mm thru axle, high/low flange, 32h
REAR HUB
Specialized disc, sealed cartridge bearing, high/low flange w/ OS contact side, 32h
SPOKES
1.8mm (15g) stainless, black, alloy nipples
DRIVETRAIN
FRONT DERAILLEUR
Shimano SLX FD-M660, E-Type
REAR DERAILLEUR
SRAM X-7, 9-speed, mid cage
SHIFT LEVERS
SRAM X-5, trigger, 9-speed
CASSETTE
Shimano HG-50, 9-speed, 11-34t
CHAIN
KMC X9, 9-speed w/ reusable Missing Link
CRANKSET
Shimano FC-M442-8, Octalink Spline, replaceable rings w/ alloy outer, S: 170mm, others: 175mm
CHAINRINGS
22S x 32A x 44A, 4-bolt, 104/64mm
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearking, 68mm x 118mm
COCKPIT
STEM
Specialized, 8 deg. rise, four bolt 31.8mm clamp, 3D forged. S:60mm, M/L:75, XL:90mm
HANDLEBARS
Specialized mid rise 31.8mm, 6061 alloy, 660mm wide, 8 degree up, 8 degree back sweep
GRIPS
Specialized thin lock on grip, alloy bar ends
SADDLE
Specialized Enduro, 7mm steel rails
SEATPOST
Specialized 6061 alloy, black, 30.9x350, setback head, 2-bolt micro adjust
BRAKES
FRONT BRAKE
Avid Juicy 3 SL, hydraulic disc, alloy backed organic pads, cleansweep 203 mm rotor
REAR BRAKE
Avid Juicy 3 SL, hydraulic disc, alloy backed organic pads, cleansweep 185 mm rotor
BRAKE LEVERS
Avid Juicy 3 SL Hydraulic
ACCESSORIES
PEDALS
Specialized, 1pc., alloy body and cage, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Bottom Bracket Height - Low Setting | 356mm | 356mm | 356mm | 356mm |
| Top Tube Length (Horizontal) | 565mm | 586mm | 620mm | 645mm |
| Head Tube Height | 102mm | 108mm | 128mm | 150mm |
| Head Tube Angle - Low Setting | 67° | 67° | 67° | 67° |
| Seat Tube Angle (Actual) - Low Setting | 71.9° | 71.9° | 71.9° | 71.9° |
| Seat Tube Angle (Effective) - Low Setting | 74° | 74° | 74° | 74° |
| Top Tube Length (Actual) | 553mm | 574mm | 606mm | 632mm |
| Seat Tube Length - Center to Top | 421mm | 444mm | 483mm | 533mm |
| Standover Height | 742mm | 748mm | 759mm | 765mm |
| Chainstay Length | 421mm | 421mm | 421mm | 421mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 660mm | 660mm | 660mm | 660mm |
| Stem Length | 60mm | 75mm | 75mm | 90mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm |
