2020 Pitch Comp 1X
$700
4.3
4 Reviews
The rugged Pitch Comp 1X is built to get you way out there and back on every adventure.…
Product Details

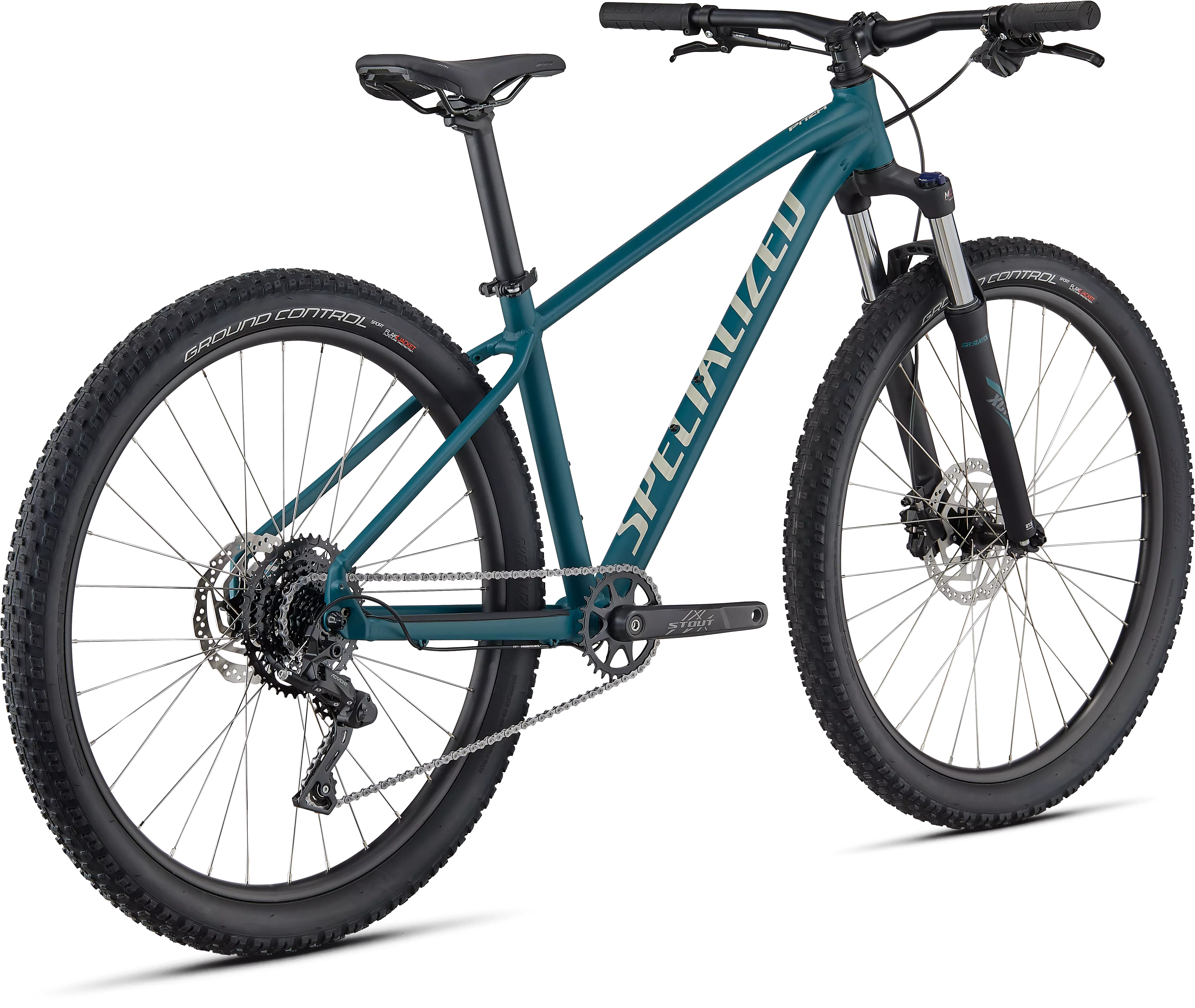

The rugged Pitch Comp 1X is built to get you way out there and back on every adventure. We relentlessly refined the Pitch’s handling for an exquisite balance of an agile, playful feel, with stability at speed, all in a proven frame design with durable performance parts.
THE SWEET SPOT
What to pick, the nimble 26-inch wheel size or the fast-rolling 29er? Neither, we said. The the sweet spot for many riders, and trails, is right in between, so the Pitch rolls on 27.5-inch wheels that offer a 29er’s confident handling in a tighter, lighter package.
STRENGTH AND GRACE
The A1 Premium Aluminum frame is pretty much the definition of strong. But that doesn’t mean it rides like a brute. Our engineers carefully optimized the shape of every tube to ensure it offers a smooth, comfortable, confident ride even on the bumpiest trails.
TOP-CLASS PARTS
SR Suntour XCM suspension fork with custom Multi-Circuit damping.
Wide-range MicroSHIFT drivetrain handles even the steepest climbs.
Meaty Ground Control Sport tires offer grip and control in any trail condition.
Technical Specifications
FRAMESET
FRAME
A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
SEAT BINDER
Alloy, QR clamp, 34.9mm
SUSPENSION
FORK
SR Suntour XCM 27.5 w/HLO, coil, custom Multi-Circuit damping, 80/100mm of travel (size-specific)
COCKPIT
STEM
Stout 3D-forged alloy, 31.8mm, 6-degree rise
HANDLEBARS
Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
GRIPS
Specialized MTB Grip, lock-on
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
BRAKES
FRONT BRAKE
Shimano BR-MT200, hydraulic disc, 180/160mm
REAR BRAKE
Shimano BR-MT200, hydraulic disc, 160mm
DRIVETRAIN
REAR DERAILLEUR
microSHIFT Advent, 1x9 w/ clutch
SHIFT LEVERS
microSHIFT Advent, 9-speed
CASSETTE
microSHIFT Advent, 9-speed, 11-42t
CHAIN
KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™
CRANKSET
Stout 1x, forged alloy
CHAINRINGS
30T
BOTTOM BRACKET
Square-tapered, 73mm, internal bearings
WHEELS
RIMS
Stout Trail 27.5, alloy, disc-specific, double-wall, 25mm internal width, 32h
FRONT HUB
Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h
REAR HUB
Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3"
REAR TIRE
Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3"
INNER TUBES
Schrader valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 170 | 175 | 175 |
| Handlebar Width | 720mm | 720mm | 740mm | 740mm | 740mm |
| Stem Length | 35 | 45 | 45 | 60 | 60 |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350 | 350 | 350 | 400 | 400 |
| Stack | 562mm | 562mm | 585mm | 604mm | 618mm |
| Reach | 380mm | 400mm | 420mm | 440mm | 460mm |
| Head Tube Length | 95mm | 95mm | 100mm | 120mm | 135mm |
| Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
| BB Height | 310mm | 310mm | 310mm | 310mm | 310mm |
| BB Drop | 43mm | 43mm | 43mm | 43mm | 43mm |
| Trail | 94mm | 94mm | 94mm | 94mm | 94mm |
| Fork Length, Full | 475mm | 475mm | 495mm | 495mm | 495mm |
| Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm | 42mm |
| Front Center | 631mm | 651mm | 680mm | 708mm | 733mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1063mm | 1083mm | 1112mm | 1139mm | 1165mm |
| Top Tube Length, Horizontal | 542mm | 572mm | 599mm | 625mm | 649mm |
| Bike Standover Height | 660mm | 690mm | 739mm | 766mm | 808mm |
| Seat Tube Length | 310mm | 360mm | 415mm | 450mm | 510mm |
| Seat Tube Angle | 74° | 73° | 73° | 73° | 73° |
