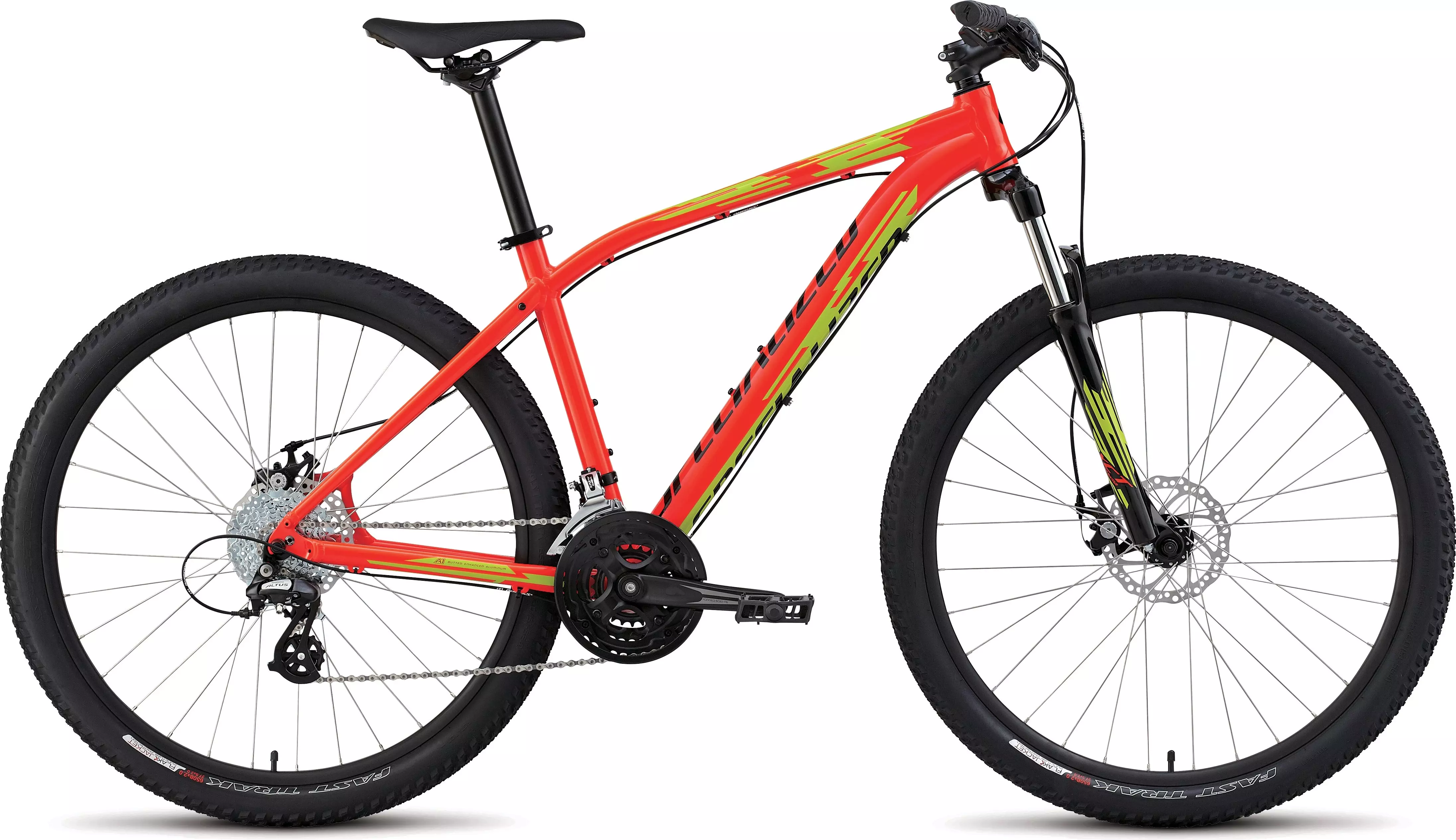

2015 Pitch 650b

0 Reviews

The Pitch is prepared for singletrack trails and urban jungles, with a plush, 100mm-travel…

Product Details

The Pitch is prepared for singletrack trails and urban jungles, with a plush, 100mm-travel SR Suntour fork, powerful Tektro disc brakes, and Stout 650b alloy wheels.

Specialized Body Geometry mountain saddle is tuned for trail performance
Stout aluminum 650b rims are trail ready
Specialized Fast Trak Sport 2.0" tires w/ a race-proven tread
Shimano Altus 8-speed rear derailleur for shifting precision
Tektro Aries, mechanical disc brakes for reliable stopping power
The custom color—Rocket Red—is designed to naturally age over time. It will exhibit splashes of a dark rich color when exposed to prolonged direct sunlight. This finish is deliberate and therefore not covered under the traditional warranty policy.
SR Suntour XCT fork with 100mm travel for smooth off-road performance
New A1 Premium Aluminum frame w/ ORE downtube for a lighter, more compliant, and durable bike

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, Sport Trail 650b Geometry, butted tubesets, externally relieved headtube, forged dropouts w/ reinforced disc mount, replaceable alloy derailleur hanger

HEADSET

1-1/8"" upper/lower, Zerostack 44, steel cups, loose ball bearings

SEAT BINDER

Alloy, nylon/glass fiber washer, QR, 34.9mm

SUSPENSION

FORK

SR Suntour XCT 650b, alloy lower, coil/MCU spring, Hi-Ten 28mm stanchions/1-1/8"" steerer, preload adj., disc mount, size-specific 80/100mm travel

WHEELS

RIMS

Specialized Stout, 650b disc, alloy double-wall, pin joint, 25mm inner width, 32h

FRONT HUB

Specialized Hi Lo disc, alloy double-sealed, ground race, QR, 32h

REAR HUB

Specialized Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h

SPOKES

Stainless, 14g, w/ brass nipple

FRONT TIRE

Specialized Fast Trak Sport, 40TPI, wire bead, Flak Jacket protection, 650bx2.0""

REAR TIRE

Specialized Fast Trak Sport, 40TPI, wire bead, Flak Jacket protection, 650bx2.0""

INNER TUBES

Standard, Schrader valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Altus, high mount, bottom swing, dual-pull

REAR DERAILLEUR

Shimano Altus, 8-speed

SHIFT LEVERS

Shimano ST-EF51, w/ integrated brake lever

CASSETTE

Sunrace, 8-speed, 11-34

CHAIN

KMC X8, 8-speed, reusable Missing Link

CRANKSET

Forged alloy, square taper spindle, w/ chainguard

BOTTOM BRACKET

Square taper, cartridge bearings

COCKPIT

STEM

Specialized 3D forged alloy, 4-bolt, 7-degree rise, anti-corrosion hardware

HANDLEBARS

Specialized, low rise, double butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm

GRIPS

Specialized Body Geometry XCT, Kraton w/ gel, lock-on, closed end, 132mm

SADDLE

Body Geometry mountain, thick padding, steel rails, 143mm

SEATPOST

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware

BRAKES

FRONT BRAKE

Tektro Aries, mechanical disc, organic pads

REAR BRAKE

Tektro Aries, mechanical disc, organic pads

ACCESSORIES

PEDALS

Composite platform, w/ reflectors, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Top Tube Length (Horizontal)	535mm	556mm	592mm	611mm	638mm
Top Tube Length (Actual)	546mm	548mm	571mm	588mm	612mm
Seat Tube Length, Center to Top	330mm	394mm	444mm	460mm	510mm
Bottom Bracket Drop	48mm	48mm	48mm	48mm	48mm
Bottom Bracket Height	301mm	301mm	301mm	301mm	301mm
Wheel Base	1025mm	1046mm	1071mm	1090mm	1117mm
Standover Height	694mm	733mm	780mm	792mm	835mm
Stack	577mm	577mm	596mm	596mm	617mm
Reach	370mm	391mm	410mm	429mm	449mm
Head Tube Length	100mm	100mm	100mm	100mm	120mm
Head Tube Angle	70.5°	70.5°	70.5°	70.5°	70.5°
Front Center	605mm	626mm	651mm	670mm	697mm
Chainstay Length	424.5mm	424.5mm	424.5mm	424.5mm	424.5mm
Seat Tube Angle	74°	74°	73°	73°	73°
Crank Length	170mm	170mm	175mm	175mm	175mm
Handlebar Width	700mm	700mm	720mm	720mm	720mm
Stem Length	60mm	60mm	70mm	80mm	90mm
Seatpost Length	300mm	350mm	350mm	400mm	400mm
