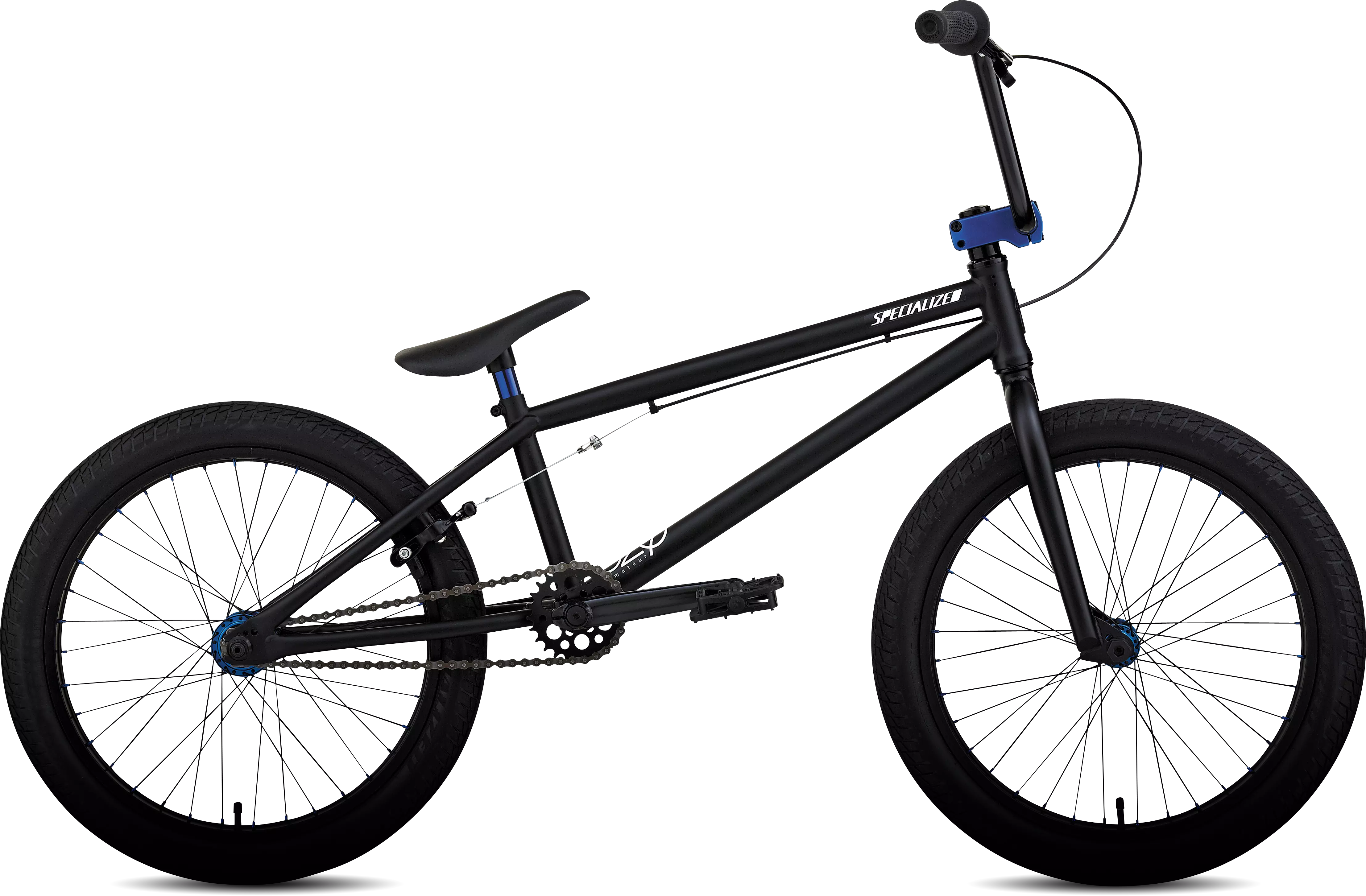

2012 P.20 AM

Part No.: 8129-5621

0 Reviews

The "P' in "P. Bikes" doesn't stand for "Pretty". No fluff and no sparkly stuff.…

Color:

Satin Black

Size:

One Size

Product Details

The "P' in "P. Bikes" doesn't stand for "Pretty". No fluff and no sparkly stuff. Just bombproof rides that mix advanced technology and top-shelf materials with geometry proven in the street, park and dirt. Start rolling right on the P.20 AM, it's built for shredding with a strong steel frame and fork, and quality components.

Hi-Ten frame with 20.5" top tube has an integrated headset, MID BB, small dropouts, and dialed geos for dirt, park, or street
P. Series tapered fork is strong enough to handle abuse
Lightweight 36-hole wheels with low flange 3/8" axle front hub and rear cassette with 9t driver
Ride dirt, park, or street on the Specialized Compound Street tires, with dual compound traction, low rolling resistance, and rounded profile
3-piece tubular Cr-Mo crankset with cartridge-bearing MID BB lets you boost as high as you like
25t chainring resists bending and delivers clearance over obstacles
Press-in MID BB is light, durable, and easy to service
Lightweight plastic platform pedals take mercy on your shins, but remain strong enough to handle even the harshest landing
Big 8" x 28" handlebars make your set-up current and give you more leverage and control
Super-light and durable one-piece saddle/post combo can take a serious beating
Compact, singlespeed gearing specially designed for dirt/park/street

Technical Specifications

FRAMESET

FRAME

Hi-Ten 20"" frame, 20.5"" TT, MID BB shell, externally relieved integrated HT, formed monostay yoke, seatstay-mounted U-brake bosses, 5mm dropouts for 14mm axle

FORK

Hi-Ten, tapered blades, 1-1/8"" threadless, 5mm dropouts for 3/8"" axle

HEADSET

Integrated 1-1/8"" threadless, Campy-style, full cartridge bearings

SEAT BINDER

Integrated Cr-Mo bolt and nylock nut

WHEELS

RIMS

P. 20, alloy single-wall, 36mm, pinned, 36h

FRONT HUB

Low flange, loose ball bearing, 3/8"" Cr-Mo axle, nutted type, 36h

REAR HUB

Low flange, CNCd 9t cog driver, loose ball, hollow 14mm Cr-Mo axle w/ 23mm contact, 17mm axle nuts, 36h

SPOKES

Stainless, 2.0mm (14g)

FRONT TIRE

Specialized Compound Street, 30 TPI, wire bead, 20x2.3""

REAR TIRE

Specialized Compound Street, 30 TPI, wire bead, 20x2.1""

INNER TUBES

Schrader valve

DRIVETRAIN

FREEWHEEL

CNC 1/2"" x 1/8"" x 9t driver

CHAIN

KMC Z-510H, 1/2"" x 1/8"", anti-drop inner links

CRANKSET

3pc. tubular, heat-treated Cr-Mo for 8 spline, 170mm length

CHAINRINGS

Stamped steel, 25T

BOTTOM BRACKET

MID BB, 2x sealed cartridge bearing w/ 19mm, 8-spline, Cr-Mo spindle, steel tube, and plastic cone spacers

COCKPIT

STEM

Forged alloy Ahead, front load, 22.2mm

HANDLEBARS

Cr-Mo 2pc., 11º backsweep, 2º upsweep, 22.2mm

GRIPS

P. Grip, flanged soft compound, open end w/ endplug, 150mm

SADDLE

P. Series, 1pc co-molded composite saddle and alloy 25.4mm seat post combination w/ embossed P. Series logo padded cover

SEATPOST

Alloy, 25.4mm, no offset

BRAKES

REAR BRAKE

Tektro FX-340 U-brake, melt forged, single bushing, coil spring, 15mm offset arms, soft compound pad

BRAKE LEVERS

Lever ""U"" brake, 15mm cable pull

ACCESSORIES

PEDALS

P. Lo Pro plastic platform w/ molded pins, loose ball, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	20.5
Fork Length	314mm
Top Tube Length (Actual)	522mm
Fork Offset	31mm
Seat Tube Length, Center to Top	235mm
Bottom Bracket Drop	-35mm
Bottom Bracket Height	291mm
Wheel Base	921mm
Standover Height	568mm
Stack	367mm
Reach	432mm
Head Tube Length	110mm
Head Tube Angle	74.5°
Chainstay Length	352mm
Seat Tube Angle	72°
Crank Length	170mm
Handlebar Width	710mm
Stem Length	50mm
Seatpost Length	200mm
