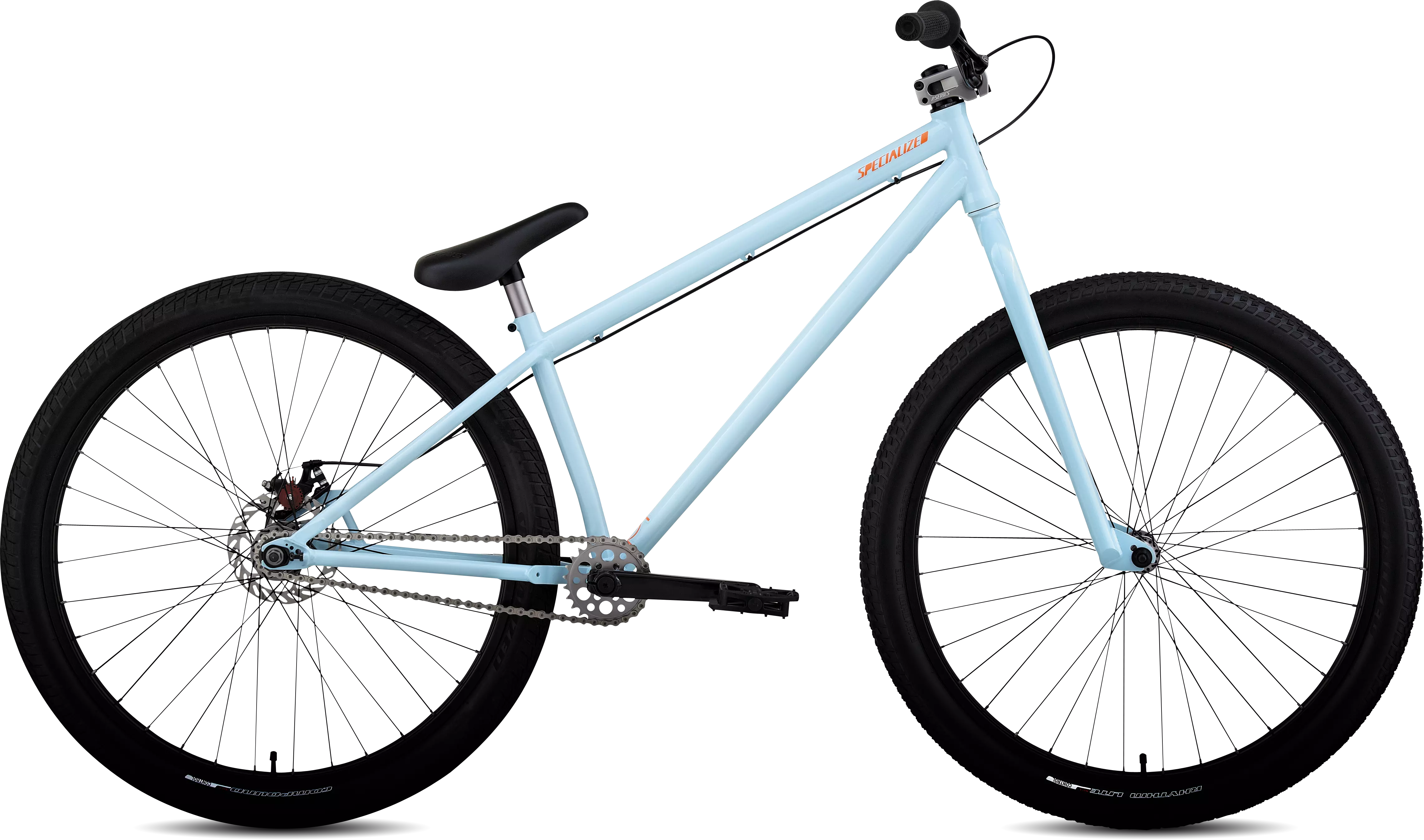

2012 P.1

Part No.: 8129-1222

0 Reviews

The "P' in "P. Bikes" doesn't stand for "Pretty". No fluff and no sparkly stuff.…

Color:

Gloss Blue

Size:

LONG

Product Details

The "P' in "P. Bikes" doesn't stand for "Pretty". No fluff and no sparkly stuff. Just bombproof rides that mix advanced technology and top-shelf materials with geometry proven in the street, park and dirt. The P.1 can ride it all, but is most at home on the dirt jumps.

Butted, singlespeed-specific, 26" Reynolds 520 Cr-Mo frame with integrated headset, MID BB, and 3D-forged horizontal dropouts with integrated chain tensioner has perfectly dialed geos for dirt, park, or street
P. Series butted and tapered Cr-Mo rigid fork is light, but strong enough to handle heavy abuse
36-spoke, double-walled, 26" singlespeed wheelset is built to withstand endless abuse
36-spoke, double-walled, 26" singlespeed wheelset is built to withstand endless abuse, Specialized Rhythm Lite Control tires with Aramid beads are fast-rolling and durable, with ample bite for dirt, park and street sessions
BMX-style, 3-piece tubular Cr-Mo crankset with cartridge-bearing MID BB is strong and light to boost with confidence, singlespeed 25t chainring resists bending and delivers the clearance you need
Press-in MID BB is light, durable, and easy to service
Lightweight plastic platform pedals take mercy on your shins, but remain strong enough to handle even the harshest landing
BMX-style flange grips with endplug
Super-light, durable and padded one-piece saddle/post combo can take a serious beating
New-school, 22.2mm, butted, heat-treated Cr-Mo handlebar w/drop-type front-load forged stem

Technical Specifications

FRAMESET

FRAME

Butted, singlespeed-specific, 26"" Reynolds 520 Cr-Mo frame with integrated headset, MID BB shell, 3D forged horizontal dropouts w/ disc mount, integrated chain tensioner

HEADSET

Integrated 1-1/8"" threadless, Campy-style, full cartridge bearings

SEAT BINDER

Integrated Cr-Mo bolt and nylock nut

SUSPENSION

FORK

Hi-Ten tapered and butted Cr-Mo blades, 1-1/8"" threadless, 5mm dropouts for 3/8"" axle

WHEELS

RIMS

P. 26, alloy double-wall, 36mm, pinned, 36h

FRONT HUB

Low flange, 2x sealed cartridge bearing, 3/8"" Cr-Mo axle, nutted type, 36h

REAR HUB

Singlespeed cassette, loose ball, polished races, machined disc mount and flanges, 10mm Cr-Mo axle, 19mm contact, nutted type w/ track nuts, 36h

SPOKES

Stainless, 2.0mm (14g)

FRONT TIRE

Specialized Rhythm Lite Control, 60 TPI, aramid bead, 26x2.3""

REAR TIRE

Specialized Compound Control, 60 TPI, aramid bead, 26x2.2""

INNER TUBES

Schrader valve

DRIVETRAIN

CASSETTE

Singlespeed, Cr-Mo, 12t

CHAIN

KMC Z510XRB, 1/2"" x 1/8"", heavy duty, anti-drop inner links

CRANKSET

3pc. tubular, heat-treated Cr-Mo for 8 spline, 175mm length

CHAINRINGS

CNC cut 6061, 25T, Motostar design

BOTTOM BRACKET

MID BB, 2x sealed cartridge bearing w/ 19mm, 8-spline, hollow Cr-Mo spindle, alloy tube, and cone spacers

COCKPIT

SEATPOST

Alloy, 25.4mm, no offset

STEM

P. Series drop type, forged alloy, front load w/ CNC side holes, black hardware, 22.2mm

HANDLEBARS

Butted Cr-Mo riser bar, 75mm rise, 8º backsweep, 2º upsweep, 22.2mm

GRIPS

P. Grip, flanged soft compound, open end w/ endplug, 150mm

SADDLE

P. Combo, 1pc co-molded composite saddle and alloy 25.4mm seat post combination w/ embossed ""P. Series"" logo padded cover

BRAKES

REAR BRAKE

Avid BB5, mechanical disc brake, intl std mount, 140mm G2 Clean Sweep rotor

BRAKE LEVERS

Avid FR-5, alloy ""V"" brake, two-finger, linear pull

ACCESSORIES

PEDALS

P. Lo Pro nylon platform w/ molded pins, loose ball, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	L
Fork Length	478mm
Seat Tube Angle (Effective)	71°
Top Tube Length (Actual)	573mm
Seat Tube Angle (Actual)	69°
Fork Offset	45mm
Seat Tube Length, Center to Top	332mm
Bottom Bracket Drop	23.5mm
Bottom Bracket Height	318mm
Wheel Base	1045mm
Standover Height	713mm
Stack	576mm
Reach	402mm
Head Tube Length	128mm
Head Tube Angle	69.5°
Chainstay Length	390mm
Crank Length	175mm
Handlebar Width	720mm
Stem Length	40mm
Seatpost Length	200mm
