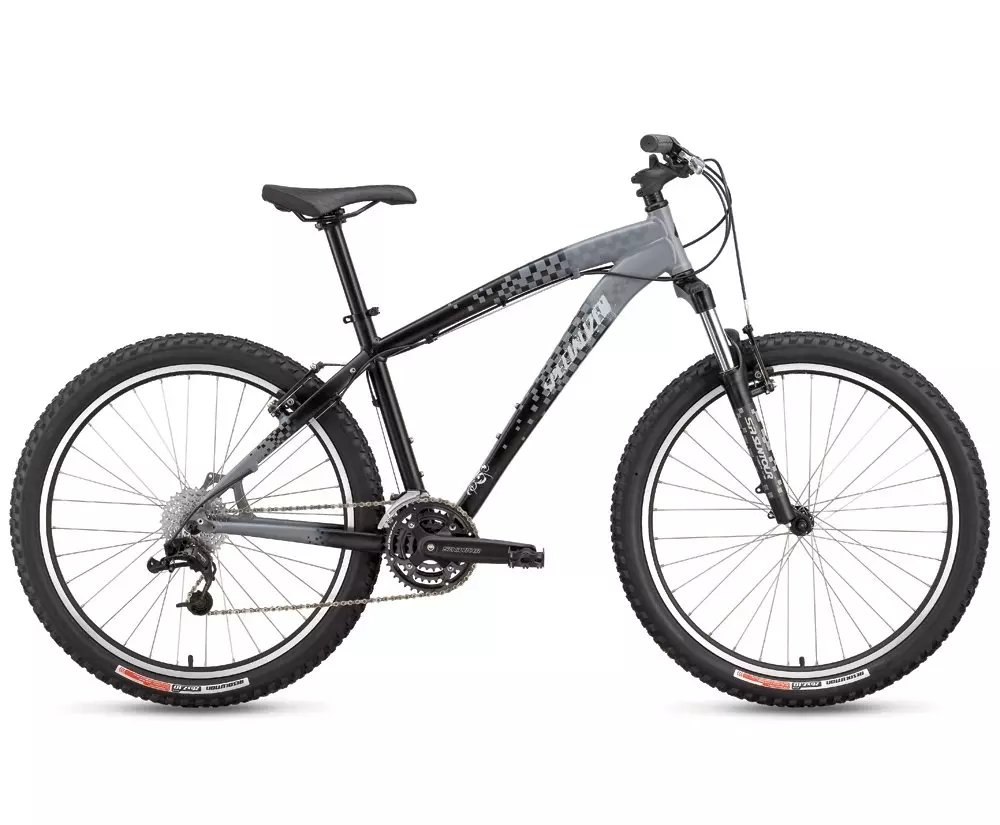

2009 P.1 All Mountain Rim

0 Reviews

The originator of the progressive hardtail, P. bikes are still the finest when it…

Color:

Satin Grey/Black

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The originator of the progressive hardtail, P. bikes are still the finest when it comes to dirt jumping, urban street and park riding. With spot-on geos, up to the minute specs and overall durability, it's no wonder folks like Darren Berrecloth like to throw these bikes around just to see what sticks.

This fully butted A1 Premium Aluminum frame is built to be All Mountain tough at weights that rival our competitors' XC frames.
The 100mm-travel SR Suntour fork uses coil springs, external preload adjustment and oversized stanchions for extra strength.
The 3D-forged stem features a 10-degree rise for perfect bar positioning.
The medium-cage SRAM X4 rear derailleur gives snappy shifts with less chain slap.
8-speed SRAM X4 trigger shifters provide lightning-fast gear changes.
SR Suntour replaceable cranks feature an Octalink-splined bottom bracket interface for added strength and durability.
SBC HRD rims are double walled for strength.
A Shimano rear hub with steel quick release promises long-lived and smooth-spinning performance.
Specialized Resolution Sport 26x2.1-inch tires have a larger volume for managing challenging terrain.
The Body Geometry All Mountain saddle helps protect your important parts with pressure-relieving technology.

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, tig weld, fully-butted w/ double ORE DT, externally machined HT, forged dropouts w/ replaceable 98954020 hanger

HEADSET

Specialized 1-1/8"" threadless, loose ball

SEAT BINDER

Specialized alloy w/ QR

SUSPENSION

FORK

SR Suntour SF9-XCM-V2, 100mm, 1pc. alloy lower, 30mm Hi-Ten stanchions, coil/mcu spring w/ preload adj., spring seals

WHEELS

FRONT TIRE

Specialized Resolution Sport, 26 x 2.1"", wire bead, 30TP

REAR TIRE

Specialized Resolution Sport, 26 x 2.1"", wire bead, 30TP

INNER TUBES

Specialized schraeder valve

RIMS

Specialized/Alex HR 26"", pinned, alloy double wall w/ CNC sidewalls, 32h

FRONT HUB

Shimano SP6105 Disc, high/low flange, 32h, QR

REAR HUB

Shimano FH-RM30, cassette, 32h, QR

SPOKES

1.8mm (15g) stainless

DRIVETRAIN

FRONT DERAILLEUR

Shimano Altus, 34.9mm clamp, bottom swing

REAR DERAILLEUR

SRAM X-4, midcage

SHIFT LEVERS

SRAM X-4, 8-speed trigger

CASSETTE

SRAM PG-820, 8-speed, 11-32t

CHAIN

KMC X8 w/ reuseable Missing Link

CRANKSET

SR SunTour, Octalink spline

CHAINRINGS

45 x 32 x 22t

BOTTOM BRACKET

Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm

COCKPIT

STEM

Specialized 3D forged, 10 degree rise, 25.4mm clamp

HANDLEBARS

Specialized alloy riser bar, 25.4mm, 38mm rise, 640mm wide, 8 degree back sweep, 8 degree up

GRIPS

Specialized dual compound Kraton, no flange, 130mm

SADDLE

Specialized BG All Mountain, 143mm wide, front and rear bumpers

SEATPOST

Specialized alloy two bolt, no offset, micro adjust, 30.9mm

BRAKES

FRONT BRAKE

Alloy linear pull w/ adj. housing, 1pc. pad

REAR BRAKE

Alloy linear pull w/ adj. housing, 1pc. pad

BRAKE LEVERS

Specialized linear pull

ACCESSORIES

PEDALS

Steel cage, composite body, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	12	15	17	19	21	24
Bottom Bracket Height - Low Setting	299mm	299mm	299mm	299mm	299mm	299mm
Top Tube Length (Horizontal)	535mm	565mm	590mm	615mm	640mm	665mm
Head Tube Height	100mm	100mm	120mm	120mm	140mm	160mm
Head Tube Angle - Low Setting	69°	70°	70°	70°	70°	70°
Seat Tube Angle (Actual) - Low Setting	73°	73°	73°	73°	73°	73°
Top Tube Length (Actual)	535mm	550mm	569mm	590mm	616mm	647mm
Seat Tube Length - Center to Top	305mm	381mm	432mm	483mm	533mm	610mm
Wheel Base	1028mm	1049mm	1075mm	1100mm	1126mm	1152mm
Standover Height	680mm	732mm	768mm	800mm	833mm	880mm
Chainstay Length	427mm	427mm	427mm	427mm	427mm	427mm
Crank Length	165mm	170mm	170mm	175mm	175mm	175mm
Handlebar Width	640mm	640mm	640mm	640mm	640mm	640mm
Stem Length	60mm	60mm	75mm	75mm	90mm	90mm
Seatpost Length	350mm	350mm	350mm	400mm	400mm	400mm
