2009 Myka HT

0 Reviews

Recreational XC Hardtail Hardwired for the most fun on two off-road wheels, the…

Color:

Gloss Candy Apple Red/Silver

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

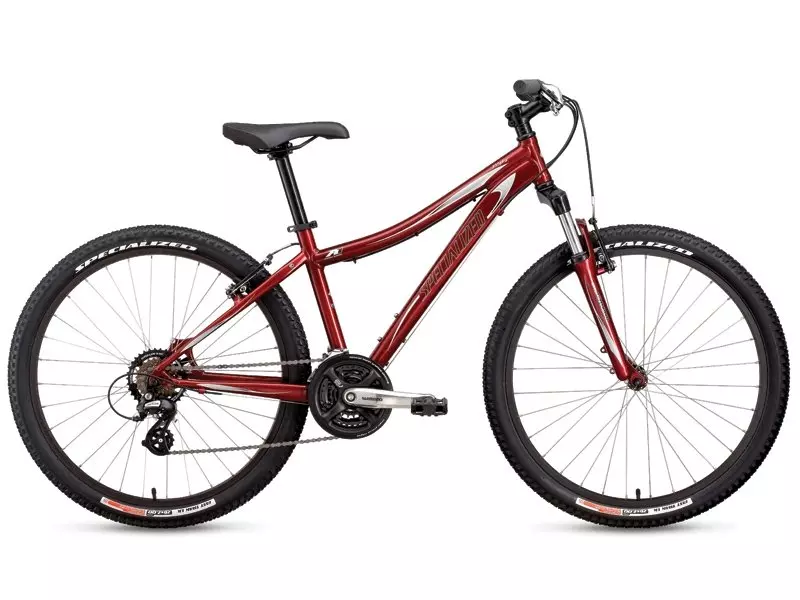

Recreational XC Hardtail Hardwired for the most fun on two off-road wheels, the Myka will quickly make riding your favorite pastime. Built for lightweight efficiency with anatomical engineering and components for women, the Myka is the best performing recreational mountain bike at a value everyone can appreciate. Useful Links www.D4WGear.com Manuals/Tech Bulletins

The Myka A1 Premium Aluminum frame uses our women’s-specific Designs for Women geometry, with a low standover height, forged dropouts, and a replaceable derailleur hanger.
The RST Capa T26 fork features 80mm or 100mm of travel, with external preload adjustment for fine-tuned performance.
The aluminum alloy stem offers a sure steering interface, and allows for easy headset adjustments.
The Shimano cassette uses Mega Range, to give the right gear for whatever lies ahead.
The Specialized XC Women’s saddle has Aramid-protected sides, for abrasion resistance.
The high-volume Specialized Fast Trak LK Sport tires have a reduced knob height for lower rolling resistance, without giving up an ounce of traction.
The Shimano Revo Twist shifter is easy to use, without ever lifting a finger off the bar, the Revo’s Kraton grips give slip-proof contact with the handlebar.

Technical Specifications

FRAMESET

FRAME

Myka A1 Premium Aluminum, Designs for Women geometry, low standover TT, tig-welded, externally relieved HT, forged dropouts w/ replaceable 98954020 alloy hanger

HEADSET

Specialized 1-1/8"" threadless

SEAT BINDER

Specialized alloy w/ QR

SUSPENSION

FORK

Suntour XCT-V2-MLO 80-100mm travel, 28mm stanchion, Hi-Ten steerer, Mech Lo spring type mini boot seals

WHEELS

FRONT TIRE

Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead

REAR TIRE

Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead

INNER TUBES

Specialized schraeder valve

RIMS

Alex Z-1000, 26"", alloy, single wall

FRONT HUB

Specialized, forged alloy, 32h, polished races, alloy QR

REAR HUB

Specialized, forged alloy, freewheel type, 32h, polished races, alloy QR

SPOKES

1.8mm (15g) stainless

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-C050, 31.8mm clamp

REAR DERAILLEUR

Shimano Altus RD-M310

SHIFT LEVERS

Shimano EF-50, 7-speed, integrated

CASSETTE

Shimano MF-TZ31-7, 7-speed, 13-34t Mega Range

CHAIN

KMC Z7, 1/2"" x 3/32"" w/ reusable Missing Link

CRANKSET

Shimano FC-TX70, square taper

CHAINRINGS

42S x 34S x 24S

BOTTOM BRACKET

TH cartridge, square taper

COCKPIT

STEM

Specialized 3D forged alloy, 1-1/8"" A-Head, 15 degree rise

HANDLEBARS

Specialized Hi-Ten 25.4mm, 620mm wide, 32mm rise, 8 degree back, 6 degree up sweep

GRIPS

Women's MTB, dual density Kraton

SADDLE

Specialized XC Women's, Aramid sides, front and rear bumpers, 155mm width

SEATPOST

Specialized alloy two bolt micro adjust head, 30.9mm

BRAKES

FRONT BRAKE

Pro Max, alloy linear pull

REAR BRAKE

Pro Max, alloy linear pull

BRAKE LEVERS

Shimano EF-50

ACCESSORIES

PEDALS

Steel cage, composite body, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13	15	17	19
Bottom Bracket Height - Low Setting	299mm	299mm	299mm	299mm
Top Tube Length (Horizontal)	530mm	545mm	567mm	590mm
Head Tube Height	100mm	100mm	120mm	130mm
Head Tube Angle - Low Setting	69.5°	69.5°	69.5°	69.5°
Seat Tube Angle (Actual) - Low Setting	74°	74°	73°	73°
Top Tube Length (Actual)	533mm	534mm	546mm	566mm
Seat Tube Length - Center to Top	330mm	381mm	432mm	483mm
Wheel Base	1029mm	1044mm	1057mm	1081mm
Standover Height	639mm	674mm	740mm	773mm
Chainstay Length	426mm	426mm	426mm	426mm
Crank Length	170mm	170mm	170mm	175mm
Handlebar Width	620mm	620mm	620mm	620mm
Stem Length	60mm	75mm	75mm	90mm
Seatpost Length	350mm	350mm	350mm	350mm
