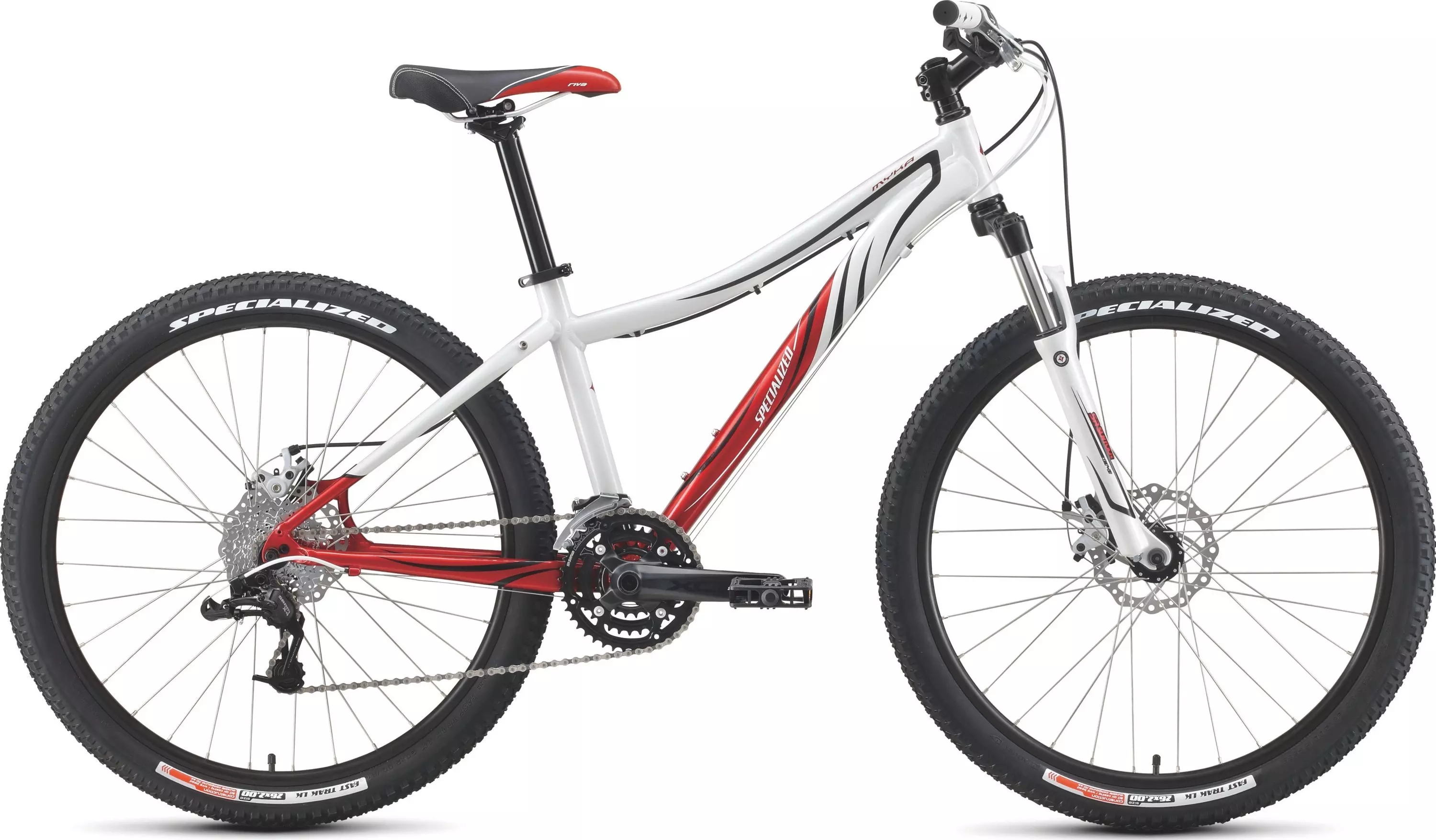

2011 Myka HT Sport Disc

0 Reviews

Some nice touches in front suspension, brakes, and wheels make the Myka HT Sport…

Product Details

Some nice touches in front suspension, brakes, and wheels make the Myka HT Sport Disc just that much more capable and fun to ride.

Fully butted A1 Premium Aluminum frame with women's recreational XC geometry and low standover for a confident and lightweight ride
80mm smooth-travel SR Suntour fork with preload adjustment, lockout, and custom women's-specific spring weights delivers size-appropriate tunability for varying terrain
Avid BB5 mechanical disc brakes with 160mm G2 Clean Sweep rotors for controlled stopping power
SR Suntour crankset uses Shimano's Octalink-splined BB interface for reliable power transfer, and has replaceable rings for durability
Specialized Fast Trak LK Sport 60tpi tires use a reduced knob height for lower rolling resistance, but have plenty of grip for confidence on the trail
Body Geometry Women's Riva MTB saddle combines generous padding and durable scuff guards for all-day performance and comfort
Women's-specific dual-compound grips keep hands pain-free and loose on long rides
Light and durable double-walled alloy rims are tough enough to handle the rough stuff

Technical Specifications

FRAMESET

HEADSET

1-1/8"" threadless, loose ball

SEAT BINDER

Alloy QR, nylon washer

FRAME

Myka A1 Premium Aluminum, fully butted, women's geometry, low standover TT, ORE DT, externally relieved HT, forged dropouts w/ replaceable alloy hanger

SUSPENSION

FORK

SR Suntour SF11-XCM-V3-26-DS-MLO, 80mm, 1pc. alloy lower, 30mm Hi-Ten stanchions, mechanical lock out, coil/mcu spring w/ preload adj., spring assisted seals

WHEELS

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead

REAR TIRE

Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead

RIMS

Alex RHD 26"", alloy double wall, pinned, 32h

INNER TUBES

Schraeder valve

FRONT HUB

Forged alloy, hi/low flange, double sealed, ground race, machined disc mount and flange, QR, 32h

REAR HUB

Forged alloy, mid flange, double sealed, ground race, machined disc mount and flanges, cassette, QR, 32h

DRIVETRAIN

REAR DERAILLEUR

SRAM X.4 8sp Midcage

CASSETTE

SRAM PG-820, 8-speed, 11-32t

FRONT DERAILLEUR

Shimano FD-M310 Altus, 34.9mm clamp

CHAIN

KMC X8 w/ reuseable Missing Link

BOTTOM BRACKET

Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm

CHAINRINGS

42S x 32S x 22S replaceable

CRANKSET

SR SunTour, Octalink spline

SHIFT LEVERS

SRAM X.4 8sp trigger

COCKPIT

GRIPS

Specialized Myka, dual density Kraton, 130mm

HANDLEBARS

Alloy 25.4mm riser bar, 25mm rise, 8 degree back sweep, 6 degree up

SADDLE

Body Geometry Women's Riva MTB, 155mm width

STEM

3D forged alloy, 4 bolt, 10 degree rise, 25.4mm clamp

SEATPOST

Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm

BRAKES

FRONT BRAKE

Avid BB5, mechanical disc, 160mm G2 Clean Sweep rotor

REAR BRAKE

Avid BB5, mechanical disc, 160mm G2 Clean Sweep rotor

BRAKE LEVERS

Alloy, linear pull

ACCESSORIES

PEDALS

Composite platform, toe clip compatible, 9/16"" w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13	15	17	19
Ground-Top	867mm	867mm	886mm	895mm
Bottom Bracket Height - Low Setting	304mm	304mm	304mm	304mm
Top Tube Length (Horizontal)	525mm	545mm	575mm	595mm
Head Tube Height	100mm	100mm	120mm	130mm
Head Tube Angle - Low Setting	69.5°	69.5°	69.5°	69.5°
Seat Tube Angle (Actual) - Low Setting	74°	74°	73°	73°
Top Tube Length (Actual)	521mm	534mm	553mm	571mm
Seat Tube Length - Center to Top	330mm	381mm	432mm	483mm
Wheel Base	1029mm	1048mm	1068mm	1089mm
Standover Height	660mm	677mm	744mm	777mm
Stack	567mm	567mm	585mm	595mm
Reach	363mm	383mm	396mm	413mm
Chainstay Length	426mm	426mm	426mm	426mm
