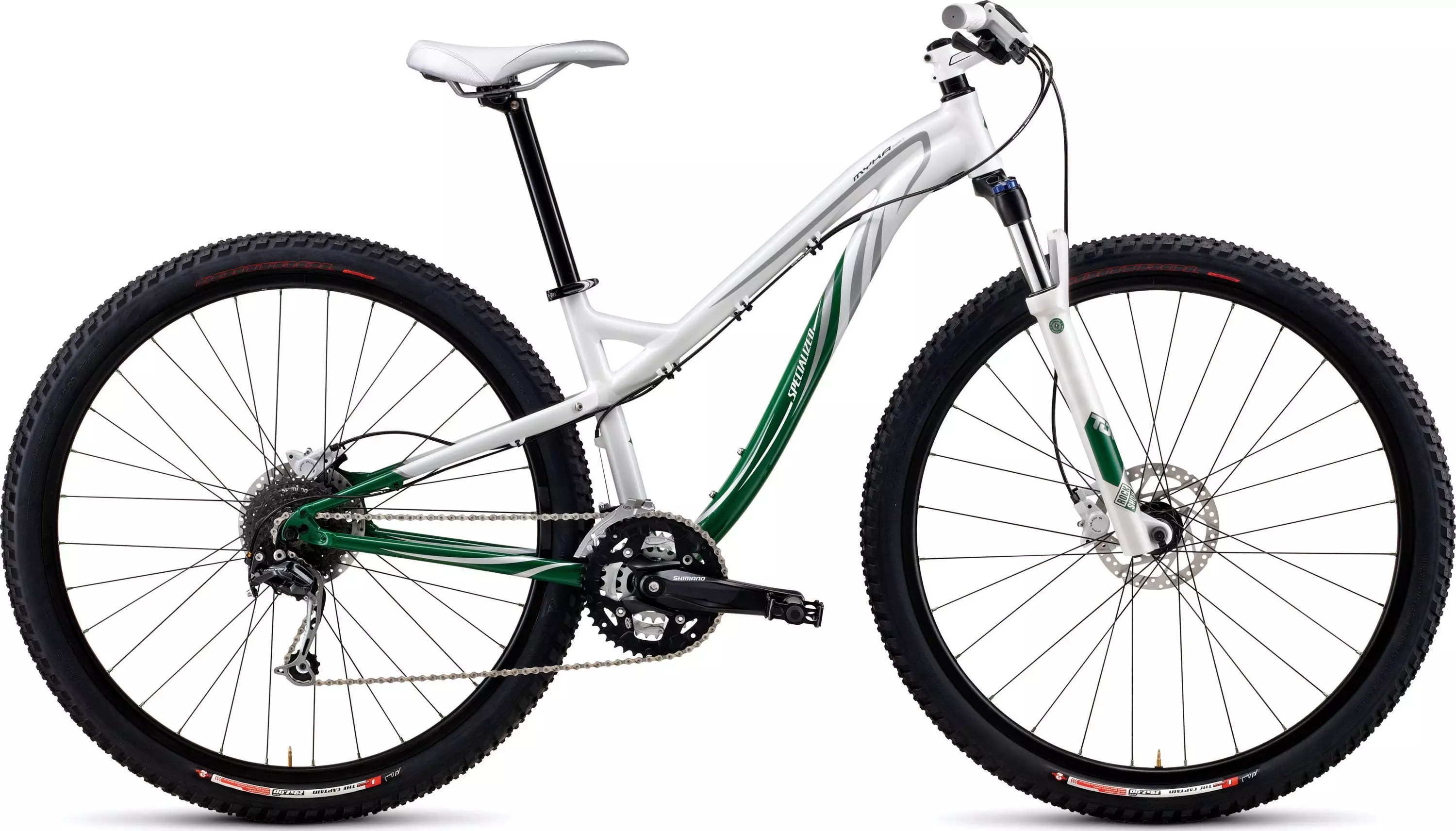

2011 Myka HT Expert 29er

0 Reviews

Specially tuned RockShox Tora La Femme suspension with 29

Color:

White/Forest Green

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Specially tuned RockShox Tora La Femme suspension with 29

Fully butted, smooth-welded M4 alloy 29er frame with women's recreational XC geometry delivers a confident and lightweight ride, with integrated headset for precision handling
RockShox Tora 80mm-travel 29" fork with rebound/preload adjustment, lockout, and custom women's-specific spring weights delivers more versatility and tunability over varying terrain
All-terrain 29" Captain Control tires are 2Bliss ready and built for speed on the trail
Shimano crankset with forged alloy arms and Octalink-splined BB interface means greater durability and better shifting performance
Shimano dual-piston hydraulic disc brakes/levers assure solid, worry-free braking performance under any conditions
Body Geometry Women's Riva MTB saddle combines generous padding and durable scuff guards for all-day performance and comfort
Light and durable double-walled 29" alloy rims are tough enough to handle the rough stuff

Technical Specifications

FRAMESET

SEAT BINDER

Alloy QR, brass washer

HEADSET

Integrated 1-1/8"" threadless, Campy type full cartridge bearings

FRAME

Myka M4 fully manipulated alloy frame, fully butted, women's 29"" geometry, integrated headset, forged dropouts w/ replaceable hanger, disc only

SUSPENSION

FORK

RockShox Tora 29 TK SL Le Femme, magnesium lower, 32mm Cr-Mo stanchions, 1 1/8"" alloy steerer, women's coil spring w/ preload adj., turn key damping w/ LO & external reb. adj.

WHEELS

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized The Captain Control, 29x2.0"", 60TPI, tubeless ready aramid bead

REAR TIRE

Specialized The Captain Control, 29x2.0"", 60TPI, tubeless ready aramid bead

RIMS

Alex RHD 29"", alloy double wall, pinned w/eyelets

FRONT HUB

Forged alloy, hi/low flange, double sealed, ground race, machined disc mount and flange, QR, 32h

REAR HUB

Forged alloy, mid flange, double sealed, ground race, machined disc mount and flanges, cassette, QR, 36h

INNER TUBES

Presta valve

DRIVETRAIN

REAR DERAILLEUR

Shimano RD-M592 Deore Shadow 9sp long cage

SHIFT LEVERS

Shimano SL-M590 Deore 9sp trigger

CASSETTE

Shimano HG30, 9-speed, 11-34t

CHAIN

KMC X9 w/ reusable Missing Link

FRONT DERAILLEUR

Shimano FD-M4306 Alivo 9sp, 34.9mm clamp, top swing, dual pull

BOTTOM BRACKET

Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm

CRANKSET

Shimano FC-M430-8, Octalink spline

CHAINRINGS

44A x 32S x 22S replaceable

COCKPIT

GRIPS

Specialized Myka, dual density Kraton, 130mm

SADDLE

Body Geometry Women's Riva MTB, 155mm width

STEM

3D forged alloy, 4 bolt, 7 degree rise, 31.8mm clamp

SEATPOST

Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm

HANDLEBARS

Butted 31.8mm alloy flat bar, 6 degree backsweep

BRAKES

FRONT BRAKE

Shimano BR-M505 hydraulic disc brake, dual piston, 160mm rotor

REAR BRAKE

Shimano BR-M505 hydraulic disc brake, dual piston, 160mm rotor

BRAKE LEVERS

Shimano BR-M505 hydraulic

ACCESSORIES

PEDALS

Alloy 1pc. body and cage, reflector kit, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13	15	17	19
Ground-Top	868mm	868mm	878mm	887mm
Bottom Bracket Height - Low Setting	304mm	304mm	304mm	304mm
Top Tube Length (Horizontal)	525mm	545mm	575mm	595mm
Head Tube Height	120mm	120mm	130mm	140mm
Head Tube Angle - Low Setting	70.25°	70.25°	70.25°	70.25°
Seat Tube Angle (Actual) - Low Setting	74°	74°	73°	73°
Top Tube Length (Actual)	549mm	549mm	559mm	574mm
Seat Tube Length - Center to Top	330mm	381mm	432mm	483mm
Wheel Base	1022mm	1042mm	1061mm	1081mm
Standover Height	651mm	691mm	730mm	769mm
Stack	589mm	589mm	598mm	607mm
Reach	356mm	376mm	392mm	409mm
Chainstay Length	426mm	426mm	426mm	426mm
