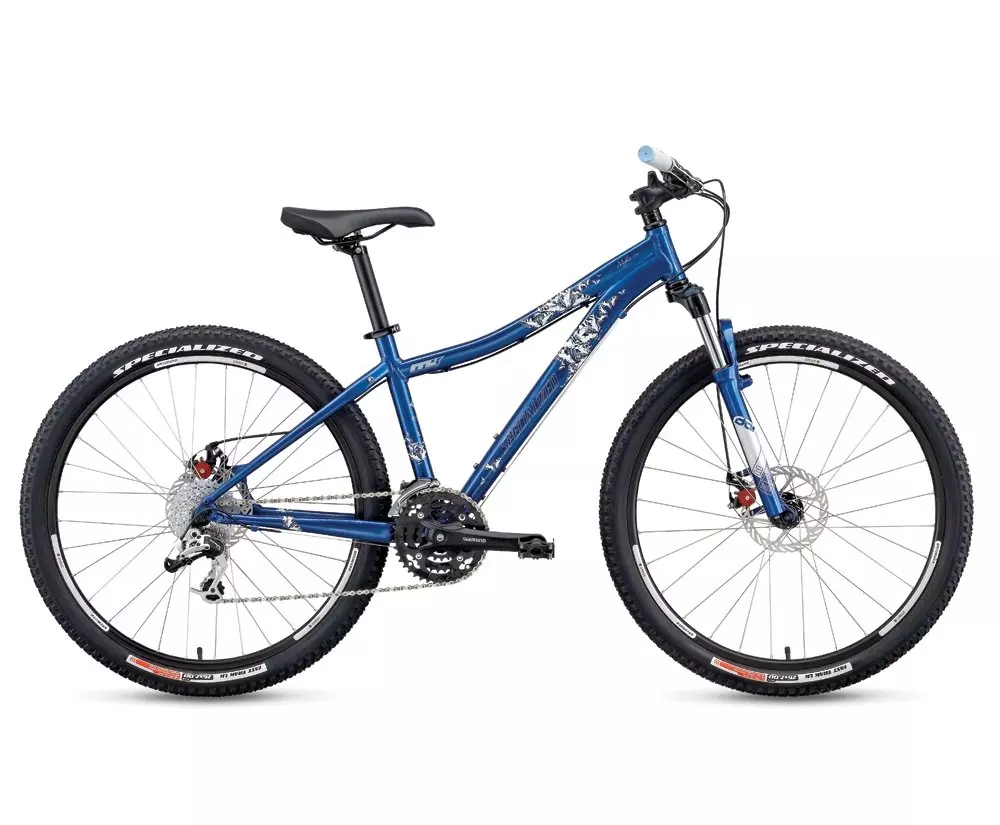

2009 Myka HT Elite

0 Reviews

Recreational XC Hardtail Hardwired for the most fun on two off-road wheels, the…

Product Details

Recreational XC Hardtail Hardwired for the most fun on two off-road wheels, the Myka will quickly make riding your favorite pastime. Built for lightweight efficiency with anatomical engineering and components for women, the Myka is the best performing recreational mountain bike at a value everyone can appreciate.

The Myka Elite’s M4 manipulated alloy frame uses our women’s-specific Designs for Women geometry, with forged dropouts and a reinforced disc mount for extra strength.
The RockShox Dart 3 La Femme SL is tuned for lighter riders, the 80/100mm-travel fork features rebound and preload adjusters and a lockout.
The Specialized 3D-forged stem features a 10-degree rise for perfect bar placement, and an oversized 31.8mm handlebar clamp for ultra-precise steering.
Combined with Avid’s super-smooth brake levers, the Avid BB5 mechanical disc brakes, with 160mm G2 Clean Sweep rotors, allow for easily controlled stops, no matter what conditions you’re riding in.
The Shimano crankset allows for fast and precise gear changes, and the Octalink splined bottom bracket interface makes for an efficient and smooth-spinning setup.
The high-volume Specialized Fast Trak LK Sport tires have a reduced knob height for lower rolling resistance, without giving up an ounce of traction.
The Specialized XC Women’s saddle has Aramid-protected sides for abrasion resistance.

Technical Specifications

FRAMESET

FRAME

Myka M4 Manipulated Alloy frame, double-butted ORE, Designs for Women geometry, low standover TT(13/15"" only), forged drop outs w/ replaceable 98954020 alloy hanger

HEADSET

Specialized 1-1/8"" threadless

SEAT BINDER

Specialized alloy w/ QR

SUSPENSION

FORK

RockShox Dart 3 S-Lite La Femme, 13/15"": 80mm, 17/19"": 100mm, 28.6mm Cr-Mo stanchions with alloy steerer, coil spring, preload and rebound adj. w/ LO

WHEELS

FRONT TIRE

Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead

REAR TIRE

Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead

INNER TUBES

Specialized schraeder valve

RIMS

Specialized/Alex RHD 26, double wall, CNC sidewalls, 28/32h

FRONT HUB

Specialized Hi Lo disc, 28h, CNC flange and disc mount, polished races, alloy QR

REAR HUB

Specialized Hi Lo disc, cassette, 32h, CNC flanges and disc mount, polished races, alloy QR

SPOKES

1.8mm (15g) stainless, alloy nipples

DRIVETRAIN

FRONT DERAILLEUR

Altus, top swing 34.9mm clamp

REAR DERAILLEUR

SRAM X-5, med. Cage

SHIFT LEVERS

SRAM x4, 8-speed trigger

CASSETTE

SRAM PG-830, 8-speed, 11-32t

CHAIN

KMC X8, 1/2"" x 3/21"" w/ reusable Missing Link

CRANKSET

Shimano FC-M361-8, replaceable rings, 13-17"": 170mm, 19"": 175mm, for Octalink Spline

CHAINRINGS

42S x 32S x 22S

BOTTOM BRACKET

Shimano BB-ES25, Octalink spline, cartridge bearing

COCKPIT

STEM

Specialized 3D forged alloy, 31.8mm, 10 degree rise

HANDLEBARS

Specialized alloy 31.8mm XC rise, 620mm wide, 8 degree back, 8 degree up sweep

GRIPS

Women's MTB, dual density Kraton

SADDLE

Specialized XC Women's, front and rear bumpers, 155mm width

SEATPOST

Specialized butted alloy, two bolt micro adjust head, 30.9mm

BRAKES

FRONT BRAKE

Avid BB-5 mechanical disc, w/ 6"" G2 Cleansweep rotor

REAR BRAKE

Avid BB-5 mechanical disc, w/ 6"" G2 Cleansweep rotor

BRAKE LEVERS

Avid FR-5, alloy, two-finger, linear pull

ACCESSORIES

PEDALS

Steel cage, composite body, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13	15	17	19
Bottom Bracket Height - Low Setting	304mm	304mm	304mm	304mm
Top Tube Length (Horizontal)	530mm	545mm	567mm	590mm
Head Tube Height	100mm	100mm	120mm	130mm
Head Tube Angle - Low Setting	69.5°	69.5°	69.5°	69.5°
Seat Tube Angle (Actual) - Low Setting	74°	74°	73°	73°
Top Tube Length (Actual)	532mm	534mm	544mm	566mm
Seat Tube Length - Center to Top	330mm	381mm	432mm	483mm
Wheel Base	1029mm	1044mm	1058mm	1082mm
Standover Height	642mm	677mm	752mm	784mm
Chainstay Length	426mm	426mm	426mm	426mm
Crank Length	170mm	170mm	170mm	175mm
Handlebar Width	620mm	620mm	620mm	620mm
Stem Length	60mm	75mm	75mm	90mm
Seatpost Length	350mm	350mm	350mm	350mm
