2010 Myka FSR Rim
0 Reviews
For entry-level female riders looking to get their feet wet (or dirty) with a real-deal…
Product Details

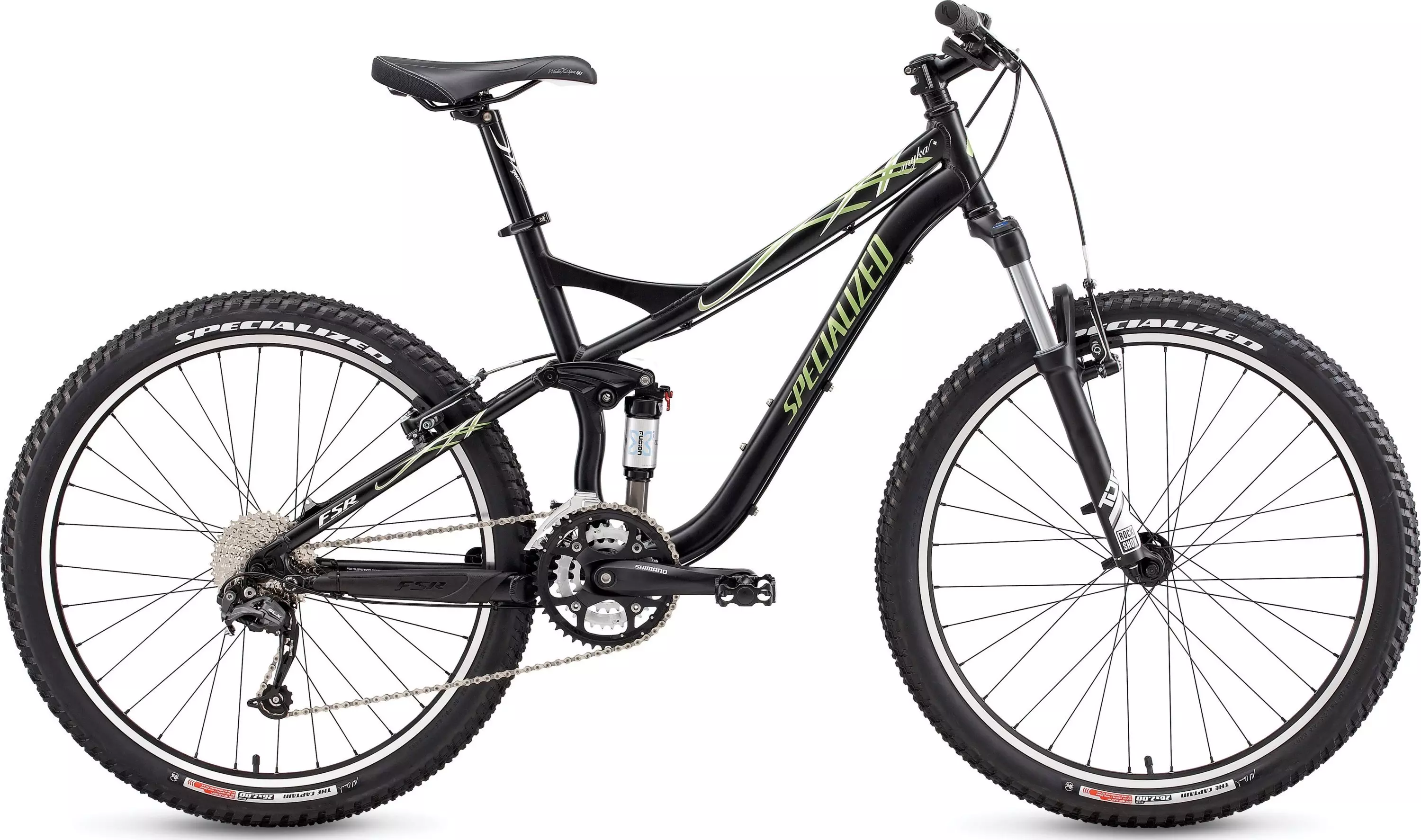

For entry-level female riders looking to get their feet wet (or dirty) with a real-deal full suspension mountain bike, the Myka FSR is the perfect platform for launching a new obsession with the trails. Featuring women's recreational geometry—with low standover height and low center of gravity—combined with capable components and custom tuned 100mm suspension, new riders get the confidence and stability they need to accelerate their trail adventures.
Shimano SLX Shadow rear derailleur is durable and sure-shifting
Specialized The Captain Sport tires for control and predictability over varied terrain
Rear shock is custom-tuned for women, with adjustable rebound and lockout control to dial-in peformance
M4 alloy FSR frame with rocker design uses women's-specific geometry and tubing to create a lightweight and proportional ride
Specialized Windie women's-specific saddle with hollow Cr-Mo rails uses lightweight foam and rear bumpers for off-road comfort and durability
Efficient 100mm-travel RockShox Tora Le Femme fork with custom spring rates for women features rebound/preload adjustments and lockout for versatile performance
Technical Specifications
FRAMESET
FRAME
Myka FSR M4 tubing, rocker design, women's TT, DT & geometry, bolt on cable guides, curved TT S&M, 100mm travel
HEADSET
1-1/8"" threadless, loose ball
SEAT BINDER
Alloy collar w/ QR, 34.9mm clamp ID
SUSPENSION
REAR SHOCK
X Fusion 02RLA, Custom tuned for Specialized, rebound adj. w/ LO, 7.5x1.5"", 2 bearing upper shock mount
FORK
RockShox Tora SLite Le Femme, 100mm travel w/o brake bosses, 32mm Cr-Mo stanchions, alloy steerer, mag lower, coil spring, rebound and preload adj. w/ LO, Custom Le Femme springs
WHEELS
RIMS
Rim brake specific, double wall w/ eyelets, CNC sidewall
FRONT HUB
Forged alloy, hi/low flange, double sealed, ground race, machined disc mount, 32h, QR
REAR HUB
Disc, double sealed system, high/low flange w/ OS contact side, 32h, QR
SPOKES
1.8mm (15g) stainless
FRONT TIRE
Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead
REAR TIRE
Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead
INNER TUBES
Schraeder valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-M590 Deore, 34.9mm clamp, top swing, bottom pull
REAR DERAILLEUR
Shimano RD-M662 SLX Shadow, long cage
SHIFT LEVERS
Shimano SL-M590 Deore, trigger
CASSETTE
Shimano HG50, 9-speed, 11-34t
CHAIN
KMC X9 w/ reuseable Missing Link
CRANKSET
Shimano FC-M442, Octalink Spline, replaceable rings w/ alloy outer, S/M: 170mm, others: 175mm
CHAINRINGS
44 x 32 x 22T
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
COCKPIT
SEATPOST
6061 alloy, 2-bolt micro adjust setback head, 30.9mm
STEM
3D forged alloy, 4-bolt, 31.8mm, adjustable rise
HANDLEBARS
XC low rise, 6061 butted alloy, 640mm wide, 8 degree backsweep, 6 degree up
GRIPS
Specialized waffle lock on grip
SADDLE
Specialized Windie XC women's, 143mm width
BRAKES
FRONT BRAKE
Avid SD3, alloy linear pull w/ 1pc pad
REAR BRAKE
Avid SD3, alloy linear pull w/ 1pc pad
BRAKE LEVERS
Avid FR-5, alloy, two-finger linear pull
ACCESSORIES
PEDALS
Alloy body and cage, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Ground-Top | 876mm | 895mm | 904mm |
| Bottom Bracket Height - Low Setting | 330mm | 330mm | 330mm |
| Top Tube Length (Horizontal) | 540mm | 555mm | 600mm |
| Head Tube Height | 100mm | 120mm | 130mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 515mm | 543mm | 574mm |
| Seat Tube Length - Center to Top | 350mm | 445mm | 483mm |
| Wheel Base | 1067mm | 1084mm | 1130mm |
| Standover Height | 687mm | 692mm | 698mm |
| Stack | 546mm | 565mm | 574mm |
| Reach | 389mm | 409mm | 442mm |
| Chainstay Length | 424mm | 424mm | 424mm |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm |
| Stem Length | 60mm | 75mm | 75mm |
| Seatpost Length | 350mm | 350mm | 350mm |
