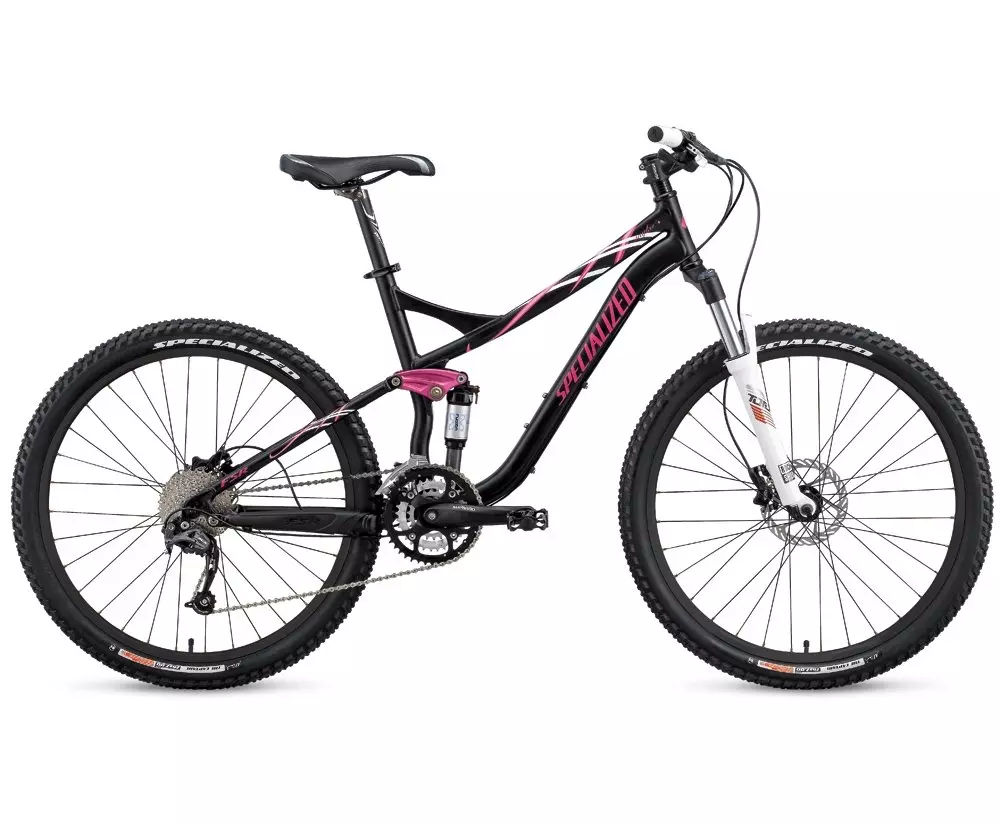

2009 Myka FSR Comp
0 Reviews
Easily the most versatile XC Trail bikes on the market, these models are known for…
Product Details
Easily the most versatile XC Trail bikes on the market, these models are known for their smooth riding, trail-tuned suspension and all-day flow. Handling rocky descents and serpentine singletrack with a sweet blend of power, control, efficiency and superior handling.
M4 manipulated alloy frame with women's-specific tubing and geometry and updated '09 rocker design delivers a lightweight and proportional ride for women.
Specialized-exclusive X-Fusion shock offers adjustable rebound and lockout control for fine-tuned performance.
The lightweight RockShox Tora "Le Femme" fork is tuned exclusively for women with 100mm of travel and a new lower spring rate, plus adjustable rebound, preload and lockout.
Specialized alloy adjustable rise stem is lightweight and 3D-forged with a stiff four-bolt face plate for tuned fit and perfect steering precision.
Avid Juicy hydraulic brakes provide exceptional stopping power and reliability, with alloy-backed pads and size-specific CleanSweep rotors.
Durable, low-profile Shimano Shadow SLX rear derailleur.
Technical Specifications
FRAMESET
FRAME
Myka FSR M4 Manipulated Alloy tubing w/ new rocker design, Designs for Women geometry and women's specific TT & DT, W/O canti boss, disk only routing, bolt on cable guides, 100mm travel
HEADSET
1-1/8"" Threadless, loose ball bearings w/ seals, black steel cups
SEAT BINDER
Alloy collar w/ QR, 34.9mm clamp ID
SUSPENSION
REAR SHOCK
X Fusion 02RLA, Specialized Designs for Women tuned, rebound adj. w/ LO, 7.5x1.5"", 2 bearing upper shock mount
FORK
RockShox Tora S-Lite La Femme, 100mm travel, XC specific chassis, disc only Mag lower, 1-1/8"" alloy steer, 32mm Cr-Mo stanchions,coil spring, rebound and preload adj. w/ LO, new lower spring rate for 2009
WHEELS
FRONT TIRE
Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead
REAR TIRE
Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead
INNER TUBES
Specialized 26x2.0"", schrader
RIMS
Specialized RHD, disc, double wall w/ eyelets
FRONT HUB
Specialized Hi Lo disc, CNC flange, QR, 32h
REAR HUB
Specialized disc, sealed cartridge bearing, high/low flange w/ OS contact side, 32h
SPOKES
1.8mm (15g) stainless, black, alloy nipples
DRIVETRAIN
FRONT DERAILLEUR
Shimano Deore, 34.9mm clamp, top swing, bottom pull
REAR DERAILLEUR
Shimano RD-M662 SLX Shadow, long cage
SHIFT LEVERS
Shimano SL-M531 Deore, trigger
CASSETTE
Shimano HG-50, 9-speed, 11-34t
CHAIN
KMC X9, 9-speed w/ reusable Missing Link
CRANKSET
Shimano FC-M442-8, Octalink Spline, replaceable rings w/ alloy outer, S/M: 170mm, L: 175mm
CHAINRINGS
Shimano 22S x 32S x 44A
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearing
COCKPIT
STEM
Specialized adjustable rise, four bolt 31.8mm clamp, 3D forged, S:75mm, M/L:90mm
HANDLEBARS
Specialized XC low rise, butted alloy, 620mm wide, 6 degree up, 8 degree backsweep
GRIPS
Specialized thin lock on grip
SADDLE
Specialized Windie XC Women's, 143mm width
SEATPOST
Specialized 6061 alloy, black, 30.9x350, setback head, 2-bolt micro adjust
BRAKES
FRONT BRAKE
Avid Juicy 3SL full hydraulic, alloy backed brake pads, cleansweep 160mm rotor
REAR BRAKE
Avid Juicy 3SL full hydraulic, alloy backed brake pads, cleansweep 140mm rotor
BRAKE LEVERS
Avid Juicy 3 SL Hydraulic
ACCESSORIES
PEDALS
Specialized, 1pc., alloy body and cage, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Bottom Bracket Height - Low Setting | 330mm | 330mm | 330mm |
| Top Tube Length (Horizontal) | 540mm | 555mm | 600mm |
| Head Tube Height | 100mm | 120mm | 130mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 540mm | 559mm | 600mm |
| Seat Tube Length - Center to Top | 350mm | 445mm | 483mm |
| Wheel Base | 1067mm | 1084mm | 1130mm |
| Standover Height | 687mm | 692mm | 698mm |
| Chainstay Length | 424mm | 424mm | 424mm |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 620mm | 620mm | 620mm |
| Stem Length | 75mm | 90mm | 90mm |
| Seatpost Length | 350mm | 350mm | 350mm |
