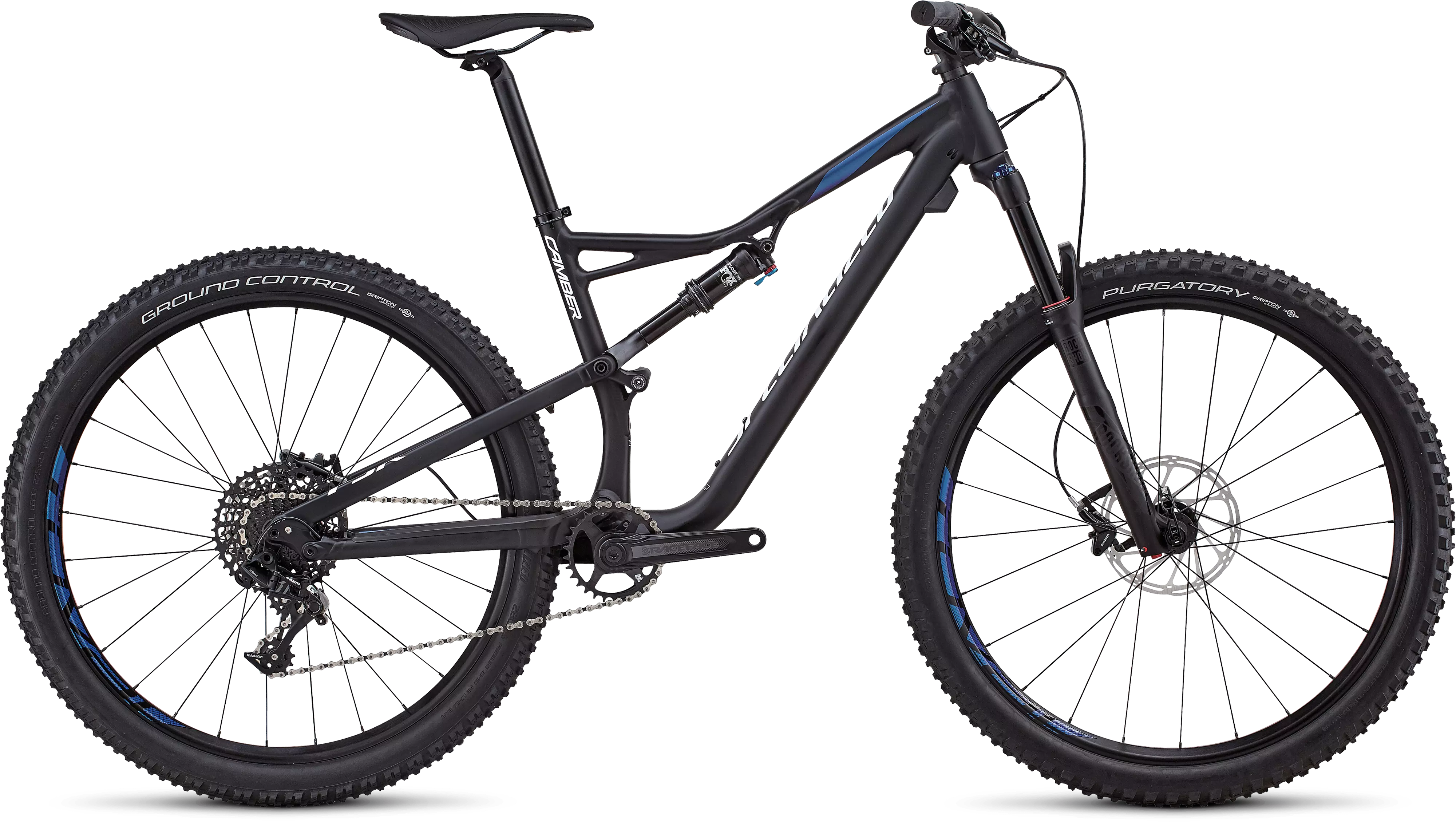

2018 Men's Camber Comp 27.5

4.5

2 Reviews

The Camber Comp 27.5 is just begging to become someone's first trail tool, especially…

Product Details

Add Icon

The Camber Comp 27.5 is just begging to become someone's first trail tool, especially if they want the rapid and playful handling of 27.5 wheels. The handling is matched by its natural climbing efficiency, while the hardwearing and reliable components package refuses to let you down.

In other words, it blends all of the trail bike characteristics that you want with the XC climbing prowess that you need. This is achieved by thoughtfully combining our M5 alloy Trail Chassis with a Camber FSR rear end. The combination results in blending lightweight, rigidity, and durability in one package.

At both ends of the bike, you'll find sufficient travel lengths that deliver plenty of plush suspension—all without going overboard on big hit capability. This means that you don't have to sacrifice efficiency, weight, or sheer speed to ride how you want. And with our Trail 27.5 Geometry and lightweight, stiff, and smooth Concentric Pivot at the rear, we can guarantee it.

For the build, we selected components that focus on strength and performance, like a Race Face crankset, 11-speed SRAM GX/NX to perform shifting duties, a custom-tuned FOX FLOAT rear shock, and Roval Traverse 27.5 alloy wheels. It's everything you need, and nothing that you don't.

  • An M5 alloy Trail Chassis w/ Camber FSR rear end has been paired with our Trail 27.5 Geometry to create a bike that's fast, durable, and just at home on the climbs as it is mowing over rock gardens. It also features the shortest, most nimble rear end possible, and internal cable routing to make clean lines and reliable shifting through any condition.

  • A RockShox Reba RL 27.5 fork is implemented to deliver 130mm of plush, trail taming travel, while accommodating a 15x100mm thru-axle for reliable handling and durability over rough, bumpy, or loose terrain. It also features our Rx Trail Tune for the ultimate in performance and feel.

  • SRAM GX 11-speed rear derailleur grants you access to a wide range of gears, while providing crisp, reliable shifting.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized M5 Aluminum, 27.5 Trail Geometry, PF30 BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

SEAT BINDER

Alloy, 34.9mm

SUSPENSION

REAR SHOCK

FOX FLOAT Performance, Rx Trail Tune, AUTOSAG, DPS damper, rebound and 3-position compression adjust, 205x53mm

FORK

RockShox Reba RL 27.5, tapered alloy steerer, 46mm offset, external rebound adjust, low speed compression to lockout, Maxle® Lite thru-axle, 130mm of travel

WHEELS

RIMS

Roval Traverse 27.5, hookless alloy, 29mm inner width, tubeless ready, 24/28h

FRONT HUB

Specialized, sealed cartridge bearings, 15x110mm spacing, 24h

REAR HUB

Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h

SPOKES

DT Swiss Industry, stainless, 3-cross, 2.0"

FRONT TIRE

Purgatory, Gripton compound, 2Bliss Ready, 27.5 x 2.3"

REAR TIRE

Ground Control, Gripton compound, 2Bliss Ready, 27.5 x 2.3"

INNER TUBES

27.5 x 1.75/2.4mm, 40mm Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM GX, long cage, 11-speed

SHIFT LEVERS

SRAM NX, trigger, 11-speed

CASSETTE

SRAM PG-1130, 11-speed, 11-42t

CHAIN

KMC X11, 11-speed w/ Missing Link™

CRANKSET

Race Face Aeffect crank, 170/175mm arms, PF30

CHAINRINGS

Steel, 30T

BOTTOM BRACKET

Race Face PF30

COCKPIT

STEM

Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized, alloy, single bolt, 30.9mm

BRAKES

FRONT BRAKE

SRAM Level TL disc lever/caliper, organic pads, 200/180mm rotors

REAR BRAKE

SRAM Level TL disc lever/caliper, organic pads, 180/160mm rotors

ACCESSORIES

PEDALS

Specialized Dirt

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Crank Length170mm175mm175mm175mm
Handlebar Width750mm750mm750mm750mm
Stem Length60mm60mm75mm90mm
Saddle Width143mm143mm143mm143mm
Seatpost Length350mm400mm400mm400mm
Stack580mm590mm599mm608mm
Reach399mm425mm454mm475mm
Head Tube Length105mm115mm125mm95mm
Head Tube Angle68°68°68°68°
BB Drop23mm23mm23mm23mm
Trail97mm97mm97mm97mm
Fork Length, Full522mm522mm522mm522mm
Fork Rake/Offset42mm42mm42mm42mm
Front Center670mm700mm732mm757mm
Chainstay Length420mm420mm420mm420mm
Wheelbase1089mm1119mm1151mm1176mm
Top Tube Length, Horizontal554mm583mm614mm638mm
Bike Standover Height724mm728mm743mm767mm
Seat Tube Length396mm430mm468mm523mm
Seat Tube Angle75°75°75°75°
Geometry

Rider Reviews

4.5

2 Reviews



Love this bike!

I have upgraded tires over time and the rear derailleur when I broke it. Handles great, very nimble, love the versatility! My only very minor complaint is the paint scratches easily (like bike racks, etc) so I may strip it down at some time and repaint.


Name:
Michael

Helpful?

It is a true trail-bred machine

It is a bike that calls you on to be fast and gnarly on sick trails. It is a trail bike that feels unique and its components are hand-picked. The rear shock's AutoSag tuning is out of this world! I have never experienced something like that on a trail bike.


Name:
Gordix

Helpful?
