2012 Live 3 Mixte
0 Reviews
The Live 3 is a light-duty utility bike offering classic urban style and functionality…
Color:
White
What's my size?
Select a Size
Product Details

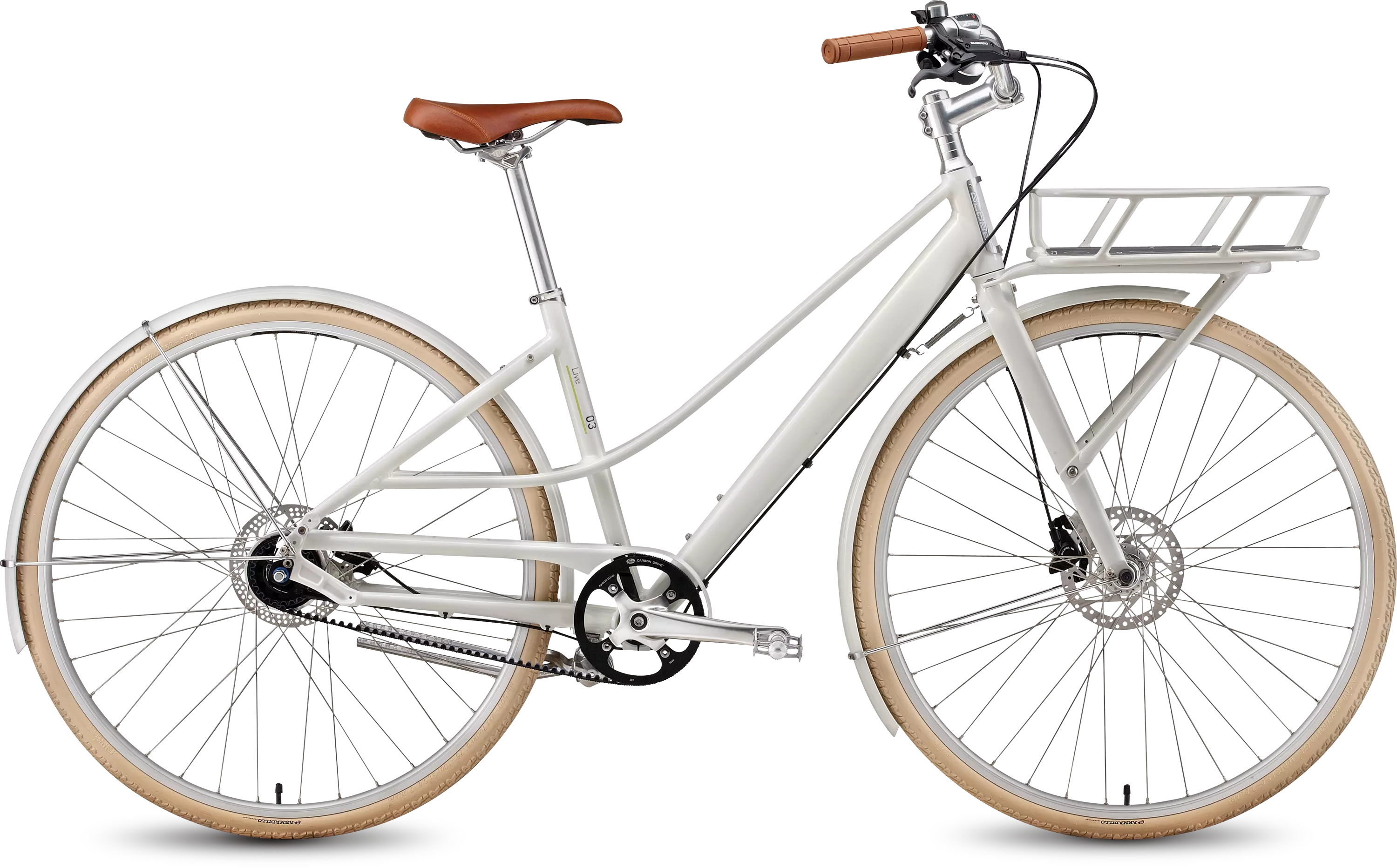

The Live 3 is a light-duty utility bike offering classic urban style and functionality to carry groceries, a laptop, art supplies or anything that suits your mood: with internal 8-speed, belt-driven gearing and hydraulic brakes for low-maintenance performance, plus an easy-access mixte frame.
Sturdy and lightweight Globe A1 Premium Aluminum step-through frame with eccentric BB provides comfortable and efficient ride, plus integrated front rack for errands and commuting
Lightweight aluminum fork with integrated rack system and Porteur basket lets you efficiently carry all your goods
Shimano Alfine 8-speed internal hub is the epitome of quality, versatility, and simplicity
122 length belt drive for smooth, low maintenance drivetrain
Dual-piston, hydraulic disc brakes with 160mm rotors provide reliable confident braking power in any conditions
Women's saddle is soft and supportive for efficient comfort, with through hole for those sensitive areas, and bumpers for durability
Technical Specifications
FRAMESET
FRAME
A1 Premium Aluminum, eccentric BB and open dropouts
FORK
Globe 700c straight-blade aluminum fork, w/ custom forged crown and porteur basket/rack system
HEADSET
1-1/8"" threadless, integrated, semi-cartridge Campy style bearings
SEAT BINDER
Globe forged alloy extra slim clamp, 31.8mm
WHEELS
REAR HUB
Shimano Alfine internal, 8-speed, 36-hole
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Infinity w/ Armadillo protection, 60 TPI, 700 x 32c
REAR TIRE
Specialized Infinity w/ Armadillo protection, 60 TPI, 700 x 32c
INNER TUBES
Schrader valve
RIMS
Alloy double-wall
FRONT HUB
Forged alloy, double sealed, ground race, QR
DRIVETRAIN
SHIFT LEVERS
Shimano Nexus 8-speed, twist shifter
CASSETTE
Shimano Alfine Internal 8-speed
CHAIN
Belt drive 122 length
CRANKSET
Belt-Drive specific Crank and Rings
CHAINRINGS
Belt drive front sprocket 46T
BOTTOM BRACKET
Cartridge bearing, ISIS spindle w/ crank stop right side, capless bolts
COCKPIT
STEM
Forged alloy, 4-bolt, 25.4mm, 1-1/8"" w/ 15 degree rise
HANDLEBARS
Alloy Commuter bar, 25.4mm, 43 degree up, 57 degree back sweep
TAPE
Globe City 140mm close type
SADDLE
Globe Haul women's w/ through hole, 175mm
SEATPOST
Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset
BRAKES
FRONT BRAKE
Auriga Comp hydraulic disc brake, w/ dual piston, 160mm rotor
REAR BRAKE
Auriga Comp hydraulic disc brake, w/ dual piston, 160mm rotor
BRAKE LEVERS
Shimano hydraulic disc levers
ACCESSORIES
PEDALS
Globe aluminum commuter pedal
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | |
|---|---|---|---|
| Seat-Tube Angle | 74.5° | 74° | 73.5° |
| Head-Tube Length | 120mm | 135mm | 155mm |
| Seat-Post Length | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72° | 73° | 74° |
| Chain-Stay Length | 455mm | 455mm | 455mm |
| Top-Tube Length, Horizontal | 550mm | 565mm | 580mm |
| Front-Center | 621mm | 621mm | 620mm |
| Handle-Bar Width | 610mm | 610mm | 610mm |
| Stand-Over Height | 615mm | 619mm | 637mm |
| Seat-Tube Length, B-B Center to Top | 385mm | 435mm | 485mm |
| Fork Rake | 59mm | 59mm | 59mm |
| B-B Drop | 65mm | 65mm | 65mm |
| Trail | 53mm | 46mm | 40mm |
| Wheelbase | 1068mm | 1068mm | 1067mm |
| Crank Length | 170mm | 170mm | 175mm |
| Stem Length | 75mm | 75mm | 90mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
