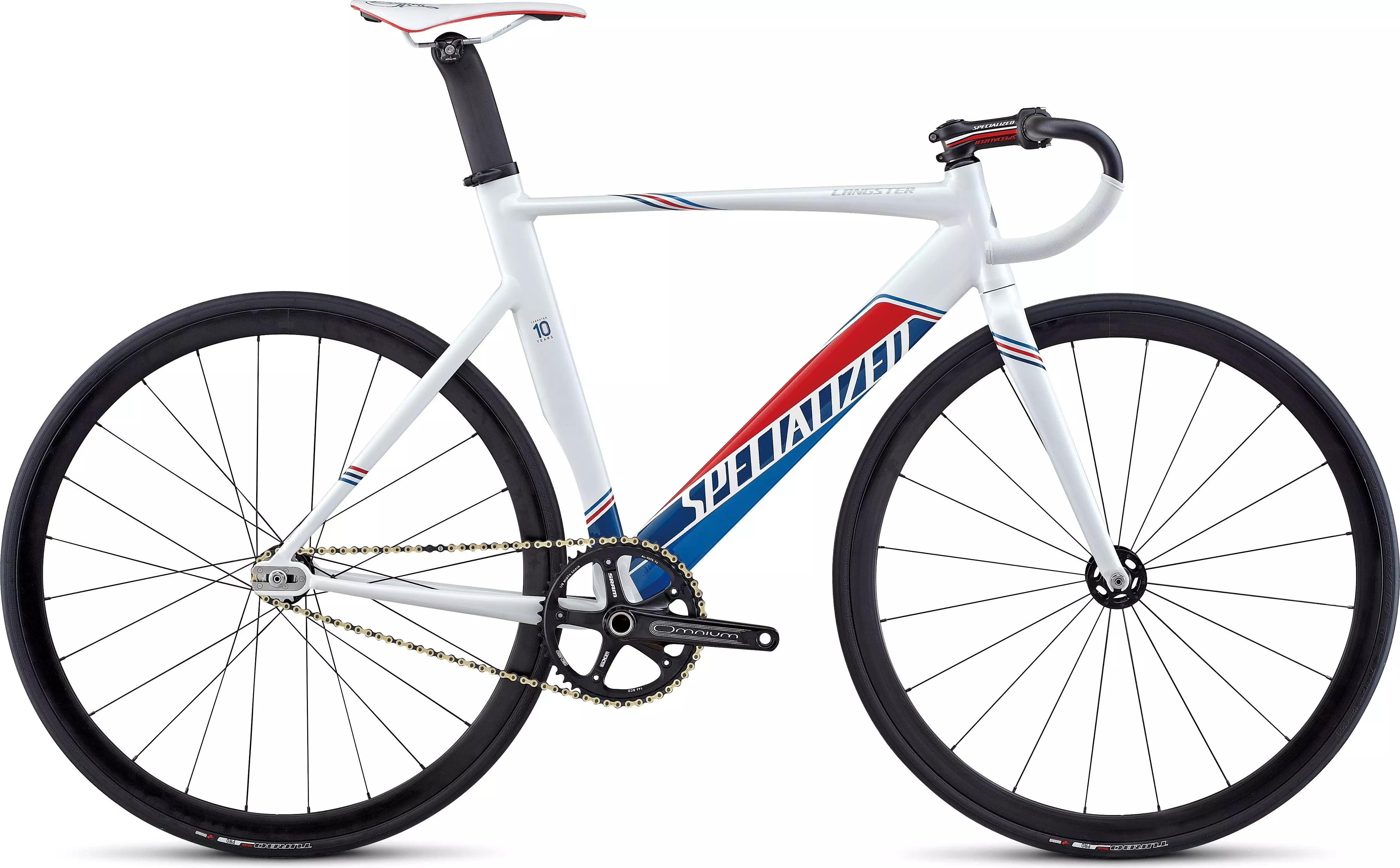

2014 Langster Pro
0 Reviews
The flat-out fastest—and definitely the sexiest—bike on the track, the Langster Pro…
Product Details
- Truvativ Omnium 48T alloy track crankset delivers efficient power transfer in a cool black finish
- A1 Premium Aluminum compact frame with integrated headset, fully-manipulated tubing, and Track Geometry that excels at the velodrome
- Specialized FACT carbon fork is stiff and ultra-light for precise steering
- AXIS 4.0 Track wheelset with dual-sided track threading for training and racing options
- Oversized aluminum handlebar is stiff for serious performance
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, fully-manipulated aero-shaped tubing, compact design w/ Track Geometry, integrated headset
FORK
Specialized FACT carbon, carbon legs, aluminum crown/steerer
HEADSET
1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 8mm alloy cone spacer, w/ 20mm of spacers
SEAT BINDER
Venge integrated seat clamp assembly
WHEELS
FRONT WHEEL
AXIS 4.0 Track
REAR WHEEL
AXIS 4.0 Track
FRONT TIRE
Specialized Turbo Pro, 127TPI, foldable aramid bead, BlackBelt protection, 700x23c
REAR TIRE
Specialized Turbo Pro, 127TPI, foldable aramid bead, BlackBelt protection, 700x23c
INNER TUBES
Standard, 60mm presta valve
DRIVETRAIN
CASSETTE
Thread-on track cog w/ steel lock ring, 15T
CRANKSET
Truvativ Omnium
CHAINRINGS
48T
BOTTOM BRACKET
Cr-Mo axle, 68mm x 103mm
CHAIN
Izumi V 1/2x1/8""
COCKPIT
HANDLEBARS
Specialized Comp Shallow Bend, alloy, 125mm drop, 70mm reach
STEM
Specialized Pro-Set, 3D forged 7075 alloy, 12-degree, 4-degree shim, 31.8mm
TAPE
Kraton track, 175mm
SADDLE
Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Venge Aero, FACT carbon, flippable 20/0mm offset
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 46.0 | 49.0 | 52.0 | 54.0 | 56.0 | 58.0 | 61.0 | |
|---|---|---|---|---|---|---|---|
| Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° | 74° |
| Head-Tube Length | 95mm | 100mm | 115mm | 130mm | 150mm | 170mm | 190mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 300mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 71° | 72° | 73° | 73° | 74° | 74° | 74° |
| Chain-Stay Length | 385mm | 385mm | 385mm | 385mm | 385mm | 385mm | 385mm |
| Top-Tube Length, Horizontal | 501mm | 512mm | 529mm | 539mm | 558mm | 569mm | 585mm |
| Front-Center | 565mm | 568mm | 569mm | 580mm | 584mm | 596mm | 612mm |
| Handle-Bar Width | 400mm | 400mm | 400mm | 400mm | 420mm | 420mm | 420mm |
| Stand-Over Height | 715mm | 742mm | 760mm | 774mm | 800mm | 819mm | 838mm |
| Seat-Tube Length, B-B Center to Top | 450mm | 500mm | 515mm | 530mm | 555mm | 575mm | 590mm |
| Fork Rake | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm |
| B-B Drop | 55mm | 55mm | 52.5mm | 52.5mm | 50mm | 50mm | 47.5mm |
| Stack | 478mm | 487mm | 504mm | 518mm | 540mm | 559mm | 576mm |
| Reach | 362mm | 372mm | 384mm | 390mm | 403mm | 409mm | 420mm |
| Trail | 63mm | 59mm | 58mm | 58mm | 58mm | 58mm | 58mm |
| Wheelbase | 944mm | 946mm | 948mm | 959mm | 964mm | 975mm | 992mm |
| Crank Length | 165mm | 165mm | 167.5mm | 167.5mm | 170mm | 170mm | 172.5mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm | 110mm |
