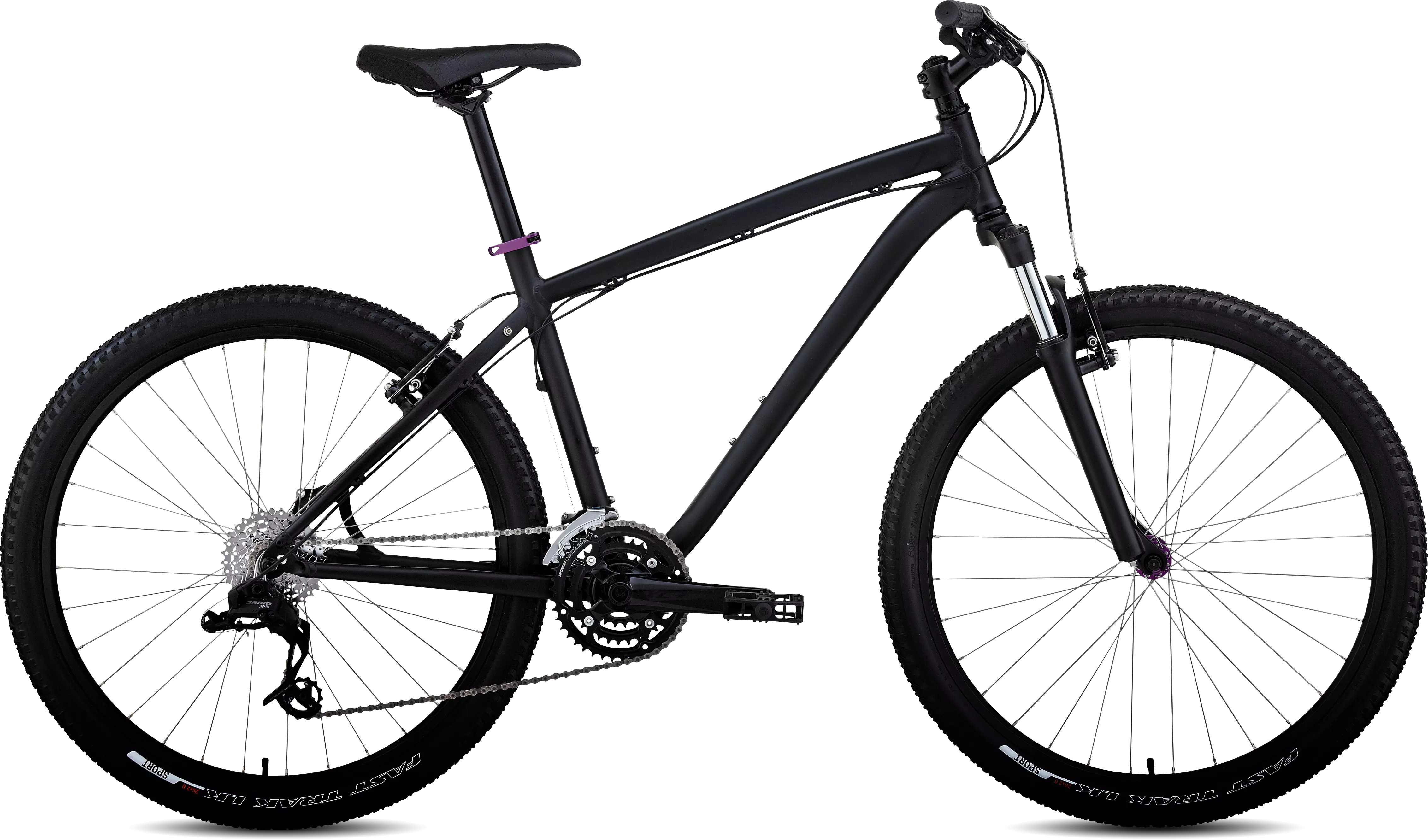

2012 Hardrock
0 Reviews
With a smooth SR Suntour fork, and double-walled alloy wheels, the Hardrock is prepared…
Product Details
With a smooth SR Suntour fork, and double-walled alloy wheels, the Hardrock is prepared for mountain trails and urban jungles.
Fully butted A1 Premium Aluminum frame with double ORE down tube for a lighter, more compliant and durable bike, with disc mounts for upgrading
80mm-travel SR Suntour fork with preload adjustment and size-specific spring rates means the suspension is dialed for rider size
Light and durable, double-walled alloy rims are tough enough to handle the rough stuff
Specialized Fast Trak LK Sport 60 TPI tires use a reduced knob height for lower rolling resistance, but have plenty of grip for confidence on the trail
Shimano 7-speed, 12-32t cassette offers gearing options for a variety of fitness levels, replaces the freewheel mechanism for lighter weight and more durability
Specialized Body Geometry Hardrock saddle has front/rear bumpers for on and off-road durability, and ample padding for comfort
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, fully butted, w/ canti bosses, 6061 alloy, double ORE down tube, externally relieved head tube, forged dropouts and reinforced disc mount, alloy replaceable derailleur hanger
HEADSET
1-1/8"" threadless, loose ball w/ seals
SEAT BINDER
34.9mm, alloy, extruded QR lever/collar
SUSPENSION
FORK
SR Suntour XCT (SF12-XCT-V4-P), 1pc. alloy lower, 28mm Hi-Ten stanchions, 1-1/8"" alloy steerer, coil/mcu spring w/ preload adj., 80mm travel
WHEELS
RIMS
Alex HR 26"", alloy double-wall, 24mm, pin joint, 32h
FRONT HUB
QR axle, sealed loose ball, 17mm contact, 32h
REAR HUB
Double-sealed loose ball, 19mm contact, QR, 32h
SPOKES
Stainless silver, 2.0mm (14g)
FRONT TIRE
Specialized Fast Trak LK Sport, 60 TPI, wire bead, 26x2.0""
REAR TIRE
Specialized Fast Trak LK Sport, 60 TPI, wire bead, 26x2.0""
INNER TUBES
Schrader valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Altus, 8-speed, 34.9mm clamp, top-swing, dual-pull
REAR DERAILLEUR
SRAM X3, 7-speed, long cage
SHIFT LEVERS
SRAM X3, 7-speed, trigger
CASSETTE
Shimano 7-speed, 12-32t
CHAIN
KMC X-8, 8-speed, reusable Missing Link
CRANKSET
SR Suntour XCT, 8-speed, square taper spindle
CHAINRINGS
42/32/22, replaceable outer
BOTTOM BRACKET
Square taper, cartridge bearing, double crank stop
COCKPIT
SEATPOST
Alloy, 2 bolt head, 30.9mm, 12.5mm offset, micro adjust
STEM
Ahead, 4 bolt clamp, 20º rise, 25.4mm
HANDLEBARS
Hi-Ten riserbar, 35mm rise, 8º backsweep, 4º upsweep, 25.4mm
GRIPS
Specialized Enduro, dual compound
SADDLE
Specialized Body Geometry Hardrock, steel rails, front and rear bumpers, 143mm width
BRAKES
FRONT BRAKE
Die cast, alloy ""V"" brake, 1pc. pad
REAR BRAKE
Die cast, alloy ""V"" brake, 1pc. pad
BRAKE LEVERS
Alloy ""V""-brake, two-finger, linear pull
ACCESSORIES
PEDALS
Composite platform w/ molded pins, toe clip compatible, 9/16"" w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 13.0 | 15.5 | 17.5 | 19.0 | 21.0 | 23.0 | |
|---|---|---|---|---|---|---|
| Top Tube Length (Horizontal) | 540mm | 561mm | 586mm | 605mm | 630mm | 655mm |
| Top Tube Length (Actual) | 534mm | 542mm | 563mm | 581mm | 608mm | 638mm |
| Seat Tube Length, Center to Top | 330mm | 394mm | 444mm | 483mm | 533mm | 584mm |
| Bottom Bracket Drop | 41mm | 41mm | 41mm | 41mm | 41mm | 41mm |
| Bottom Bracket Height | 299mm | 299mm | 299mm | 299mm | 299mm | 299mm |
| Wheel Base | 1022mm | 1044mm | 1069mm | 1088mm | 1114mm | 1140mm |
| Standover Height | 696mm | 724mm | 759mm | 794mm | 830mm | 865mm |
| Stack | 571mm | 571mm | 590mm | 590mm | 609mm | 628mm |
| Reach | 365mm | 387mm | 406mm | 425mm | 444mm | 463mm |
| Head Tube Length | 100mm | 100mm | 120mm | 120mm | 140mm | 160mm |
| Head Tube Angle | 70.25° | 70.25° | 70.25° | 70.25° | 70.25° | 70.25° |
| Chainstay Length | 424mm | 424mm | 424mm | 424mm | 424mm | 424mm |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° | 73° |
| Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm | 640mm | 640mm | 640mm |
| Stem Length | 60mm | 75mm | 75mm | 90mm | 90mm | 105mm |
| Seatpost Length | 300mm | 350mm | 350mm | 400mm | 400mm | 400mm |
