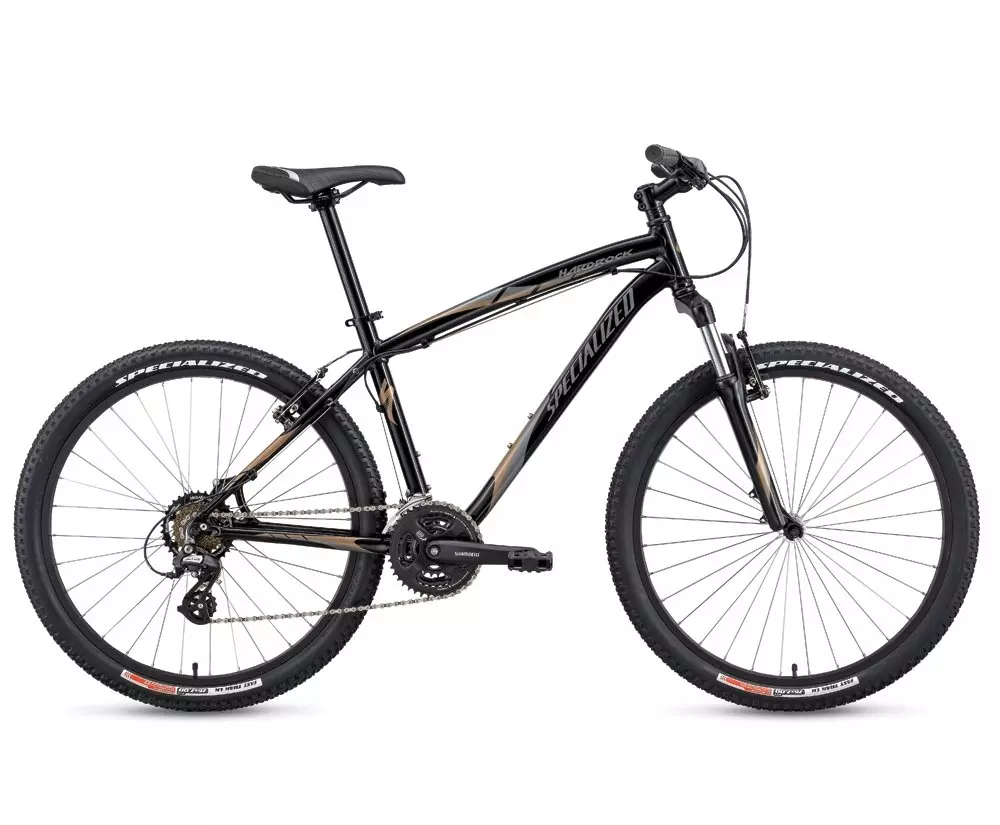

2009 Hardrock

4.3

3 Reviews

AN OLD FAVORITE MADE NEW, the Hardrock is still the most versatile hardtail for kicking…

Product Details

AN OLD FAVORITE MADE NEW, the Hardrock is still the most versatile hardtail for kicking around town, but its lighter weight, more efficient alloy chassis and category-leading specifications make it the perfect introduction to XC Trail riding.

This fully butted A1 Premium Aluminum frame offers improved fatigue life and comfort in a high performance and lightweight chassis, with an ORE top/down tube, externally relieved head tube and reinforced disc brake mount.
An SR Suntour suspension fork features a smooth 80mm of travel, with external preload adjustment for on the fly, fine-tuned performance.
Dual compound Enduro grips offer a comfortable handhold on long rides.
7-speed EZ-fire shifters provide predictably smooth, accurate gear changes.
The smooth-shifting Shimano crankset is a rock-solid performer in a wide range of conditions.
Lightweight Specialized Fast Trak LK Sport tires have a low knob height for efficiency and shoulder knobs for precise cornering.
The Specialized XC saddle features Body Geometry comfort and abrasion-resistant side patches for enhanced durability.

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, fully butted, formed TT, double ORE DT, externally relieved HT, reinforced disc mount, forged dropouts w/ replaceable 98954020 hanger

HEADSET

Specialized 1-1/8"" threadless, loose ball

SEAT BINDER

Specialized alloy w/ QR

SUSPENSION

FORK

SR Suntour SF8-XCT-V2, 80mm, 1pc. alloy lower, 28mm Hi-Ten stanchions, 13-15"": standard spring, all others: ""stiff"" spring, coil/mcu spring w/ preload adj., spring assisted seals, disc only

WHEELS

FRONT TIRE

Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, aramid bead

REAR TIRE

Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, aramid bead

INNER TUBES

Specialized schraeder valve

RIMS

Alex Z-1000, 26"", single wall, 32h

FRONT HUB

Specialized Hi Lo, forged alloy, double sealed, ground race, 32h

REAR HUB

Specialized forged alloy,double sealed, ground race, QR, 32h

SPOKES

1.8mm (15g) stainless w/ brass nipples

DRIVETRAIN

FRONT DERAILLEUR

Shimano C-050, 34.9mm clamp

REAR DERAILLEUR

Shimano Altus

SHIFT LEVERS

Shimano ST-EF50-7, 7-speed

CASSETTE

Shimano MF-TZ31, 7-speed, 14-34t Mega Range

CHAIN

KMC Z7 w/ reuseable Missing Link

CRANKSET

Shimano FCM-191, polished

CHAINRINGS

42 x 34 x 24t

BOTTOM BRACKET

FSA BB-7420, cartrdge bearings, 68mm x 122.5mm for 47.5mm chain line

COCKPIT

STEM

Specialized forged alloy, 15 degree rise

HANDLEBARS

Specialized Hi-Ten, 32mm rise, 640mm wide, 8 degree back sweep, 6 degree up, 1.6mm thick

GRIPS

Specialized Enduro, dual compound Kraton, no flange, 131mm

SADDLE

Specialized XC, Body Geometry, 143mm width, front and rear bumpers

SEATPOST

Specialized alloy two bolt, no offset, micro adjust, 30.9mm

BRAKES

FRONT BRAKE

Alloy linear pull, 1pc. pad

REAR BRAKE

Alloy linear pull, 1pc. pad

BRAKE LEVERS

Shimano (integrated w/ shifter)

ACCESSORIES

PEDALS

Steel cage, composite body, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13	15	17	19	21	23
Bottom Bracket Height - Low Setting	299mm	299mm	299mm	299mm	299mm	299mm
Top Tube Length (Horizontal)	540mm	555mm	580mm	605mm	630mm	655mm
Head Tube Height	100mm	100mm	120mm	120mm	140mm	160mm
Head Tube Angle - Low Setting	70.25°	70.25°	70.25°	70.25°	70.25°	70.25°
Seat Tube Angle (Actual) - Low Setting	73°	73°	73°	73°	73°	73°
Top Tube Length (Actual)	534mm	538mm	557mm	581mm	608mm	638mm
Seat Tube Length - Center to Top	330mm	381mm	432mm	483mm	533mm	584mm
Wheel Base	1017mm	1032mm	1058mm	1083mm	1109mm	1135mm
Standover Height	696mm	727mm	766mm	794mm	830mm	865mm
Chainstay Length	424mm	424mm	424mm	424mm	424mm	424mm
Crank Length	170mm	170mm	170mm	175mm	175mm	175mm
Handlebar Width	640mm	640mm	640mm	640mm	640mm	640mm
Stem Length	60mm	60mm	75mm	75mm	90mm	90mm
Seatpost Length	350mm	350mm	350mm	400mm	400mm	400mm
