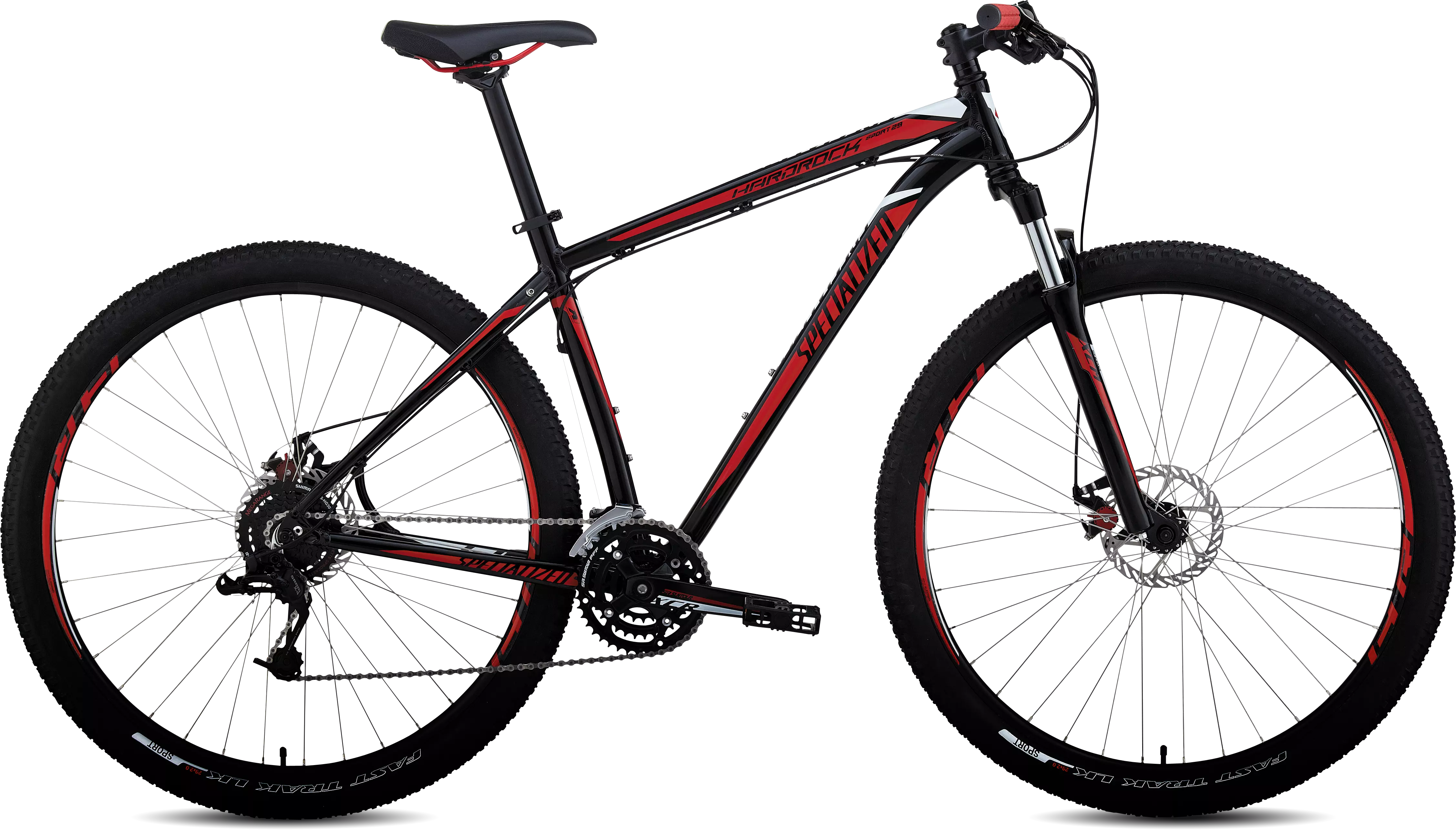

2012 Hardrock Sport Disc 29
0 Reviews
With a smooth SR Suntour 29er fork with lockout, powerful Avid BB5 disc brakes, and…
Product Details
With a smooth SR Suntour 29er fork with lockout, powerful Avid BB5 disc brakes, and double-walled 29" alloy wheels, the Hardrock Sport Disc 29er is prepared for mountain trails and urban jungles.
Fully butted A1 Premium Aluminum 29er frame with double ORE down tube for a lighter, more compliant and durable bike
80mm smooth-travel 29" SR Suntour fork with preload adjustment, lockout, and size-specific spring rates for more versatility and tunability over varying terrain
Light and durable, double-walled Hardrock 29" wheelset is tough enough to handle the rough stuff
Specialized 29" Fast Trak LK Sport 60 TPI tires use a reduced knob height for lower rolling resistance, but have plenty of grip for confidence on the trail
SR Suntour crankset uses Shimano's sealed cartridge, Octalink-splined BB interface for increased power transfer along with cartridge bearings and replaceable rings for longevity
Avid BB5 mechanical disc brakes with 160mm G2 Clean Sweep rotors for controlled stopping power
Flat alloy XC handlebar for solid control
Specialized Body Geometry Hardrock saddle has front/rear bumpers for on and off-road durability, and ample padding for comfort
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum 29"", fully butted, disc only, 6061 alloy, double ORE down tube, externally relieved head tube, forged dropouts and reinforced disc mount, alloy replaceable derailleur hanger
HEADSET
1-1/8"" threadless, loose ball w/ seals
SEAT BINDER
34.9mm, alloy, extruded QR lever/collar
SUSPENSION
FORK
SR Suntour XCM (SF11-XCM-V3-29-DS-MLO), 1pc. alloy lower, 30mm Hi-Ten stanchions, mechanical LO, custom women's coil/mcu spring w/ preload adj., spring assisted seals, 80mm travel
WHEELS
RIMS
Alex HR Disc 29"", alloy double-wall, disc, pin joint, 24mm, 36h
FRONT HUB
Disc hub, high-lo flange, sealed loose ball, machined disc mount, QR, 36h
REAR HUB
Machined disc mount & flanges, double-sealed loose ball, polished races,19mm contact, QR, 36h
SPOKES
Stainless silver, 2.0mm (14g)
FRONT TIRE
Specialized Fast Trak LK Sport, 60 TPI, wire bead, 29x2.0""
REAR TIRE
Specialized Fast Trak LK Sport, 60 TPI, wire bead, 29x2.0""
INNER TUBES
Schrader valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Altus, 8-speed, 34.9mm clamp, top-swing, dual-pull
REAR DERAILLEUR
SRAM X4, 8-speed, mid cage
SHIFT LEVERS
SRAM X4, 8-speed, trigger
CASSETTE
Shimano 8-speed, 11-34t
CHAIN
KMC X-8, 8-speed, reusable Missing Link
CRANKSET
SR Suntour, 8-speed, Octalink spline, replaceable rings
CHAINRINGS
42/32/22, replaceable outer
BOTTOM BRACKET
Shimano, Octalink spline, cartridge bearing, 68mm
COCKPIT
SEATPOST
Alloy, 2 bolt head, 30.9mm, 12.5mm offset, micro adjust
STEM
3D forged 6061 alloy, 4 bolt clamp, 10º rise, 25.4mm
HANDLEBARS
Alloy flat bar, 8º backsweep, 4º upsweep, 25.4mm
GRIPS
Specialized Enduro, dual compound
SADDLE
Specialized Body Geometry Hardrock, steel rails, front and rear bumpers, 143mm width
BRAKES
FRONT BRAKE
Avid BB5, mechanical disc brake, post mount, 160mm G2 Clean Sweep rotor
REAR BRAKE
Avid BB5, mechanical disc brake, post mount, 160mm G2 Clean Sweep rotor
BRAKE LEVERS
Alloy ""V""-brake, two-finger, linear pull
ACCESSORIES
PEDALS
Composite platform w/ molded pins, toe clip compatible, 9/16"" w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 15.5 | 17.5 | 19.0 | 21.0 | 23.0 | |
|---|---|---|---|---|---|
| Top Tube Length (Horizontal) | 574mm | 591mm | 610mm | 640mm | 660mm |
| Seat Tube Angle (Effective) | 74.25° | 73° | 73° | 73° | 73° |
| Top Tube Length (Actual) | 555mm | 566mm | 581mm | 610mm | 631mm |
| Seat Tube Angle (Actual) | 73° | 72° | 72° | 72° | 72° |
| Seat Tube Length, Center to Top | 394mm | 444mm | 483mm | 533mm | 584mm |
| Bottom Bracket Drop | 68.5mm | 68.5mm | 68.5mm | 68.5mm | 68.5mm |
| Bottom Bracket Height | 301mm | 301mm | 301mm | 301mm | 301mm |
| Wheel Base | 1083mm | 1090mm | 1105mm | 1136mm | 1157mm |
| Standover Height | 710mm | 787mm | 824mm | 858mm | 894mm |
| Stack | 622mm | 592mm | 634mm | 653mm | 672mm |
| Reach | 395mm | 410mm | 416mm | 440mm | 456mm |
| Head Tube Length | 100mm | 100mm | 110mm | 130mm | 150mm |
| Head Tube Angle | 70.5° | 71° | 71° | 71° | 71° |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm | 450mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 640mm | 660mm | 660mm | 660mm | 660mm |
| Stem Length | 60mm | 80mm | 80mm | 100mm | 100mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
