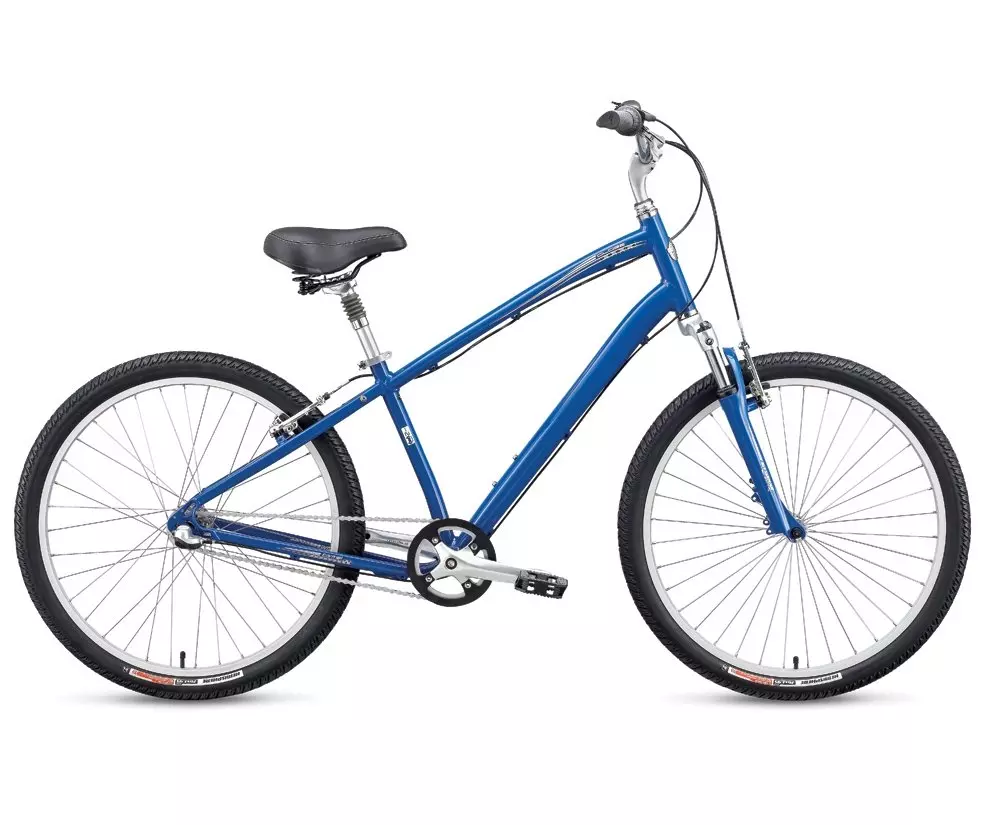

2009 Globe Carmel 2 26"
0 Reviews
The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone…
Product Details
The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone who's looking for unsurpassed comfort, easy travels and feeling like a kid again will love this bike.
Our A1 Premium Aluminum frame features Ground Control geometry for an upright and comfortable seating position that's closer to the ground and easier to stop and go.
The suspension fork uses coil/MCU springs for a smooth ride and external preload adjustment for easy fine-tuning.
Body Geometry Comfort Men’s grips with integrated bell relieve pressure for day-long comfort.
The internal 3-speed hub is virtually maintenance-free, shifts are easy to manage, even when not in motion.
The wide Comfort Plus saddle has springs and lots of foam to take the edge off.
Specialized Hemisphere 26x1.95-inch tires are smooth rolling, and Flak Jacket protection helps keep flats at bay.
Technical Specifications
FRAMESET
FRAME
Globe A1 Premium Aluminum, ground control geometry, 26"" comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable 98954020 hanger
HEADSET
Specialized 1-1/8"" threaded, loose ball
SEAT BINDER
Specialized alloy w/ QR
SUSPENSION
FORK
SR Suntour NEX-4110-26, 63mm, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adj., spring assisted seals
WHEELS
FRONT TIRE
Specialized Hemisphere, 26x38c, 60TPI, wire bead, Flak Jacket
REAR TIRE
Specialized Hemisphere, 26x38c, 60TPI, wire bead, Flak Jacket
INNER TUBES
Specialized schraeder valve
RIMS
Alex Z-1000, 26"", single wall, 32h
FRONT HUB
Specialized, forged alloy, double sealed, polished races, 32h, steel QR
REAR HUB
Shimano Internal 3-Speed
SPOKES
1.8mm (15g) stainless
DRIVETRAIN
SHIFT LEVERS
Shimano Nexus, 3-speed
CASSETTE
See rear hub
CHAIN
Shimano CN-NX10 1/2"" x 1/8""
CRANKSET
Sugino EX-1 aluminum, w/ alloy chainguard
CHAINRINGS
38t
BOTTOM BRACKET
FSA BB-7420, cartridge bearings, 68mm x 122.5mm for 47.5mm chain line
COCKPIT
STEM
Globe ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
HANDLEBARS
Globe comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
GRIPS
Men's Body Geometry Comfort, closed end, 92/132mm including bell
SADDLE
Specialized Comfort Plus w/ springs
SEATPOST
Alloy suspension, 27.2mm, two bolt head w/ preload adjust
BRAKES
FRONT BRAKE
Alloy linear pull w/ adj. housing, 1pc. pad
REAR BRAKE
Alloy linear pull w/ adj. housing, 1pc. pad
BRAKE LEVERS
Tektro alloy 4-finger, kraton lever pad, for twist shifter
ACCESSORIES
PEDALS
Composit comfort pedal w/ Kraton top, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | WS | XL | WM | |
|---|---|---|---|---|---|---|
| Ground-Top | 59mm | 59mm | 59mm | 59mm | 59mm | 59mm |
| Seat-Tube Angle | 89° | 89° | 89° | 89° | 89° | 89° |
| Head-Tube Length | 170mm | 170mm | 170mm | 170mm | 170mm | 170mm |
| Head-Tube Angle | 636° | 646° | 666° | 636° | 690° | 651° |
| Chain-Stay Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Top-Tube Length, Horizontal | 67mm | 67mm | 67.5mm | 67.5mm | 67mm | 67.5mm |
| Front-Center | 160mm | 190mm | 210mm | 160mm | 230mm | 190mm |
| Handle-Bar Width | 350mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Stand-Over Height | 35mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Seat-Tube Length, B-B Center to Top | 500mm | 500mm | 500mm | 500mm | 500mm | 500mm |
| Fork Rake | 1130mm | 1140mm | 1160mm | 1130mm | 1184mm | 1145mm |
| B-B Drop | 68.5mm | 68.5mm | 68.5mm | 68.5mm | 68.5mm | 68.5mm |
| Stack | 343mm | 406mm | 470mm | 356mm | 533mm | 432mm |
| Reach | 615mm | 625mm | 640mm | 615mm | 665mm | 625mm |
| Trail | 710mm | 760mm | 760mm | 472mm | 805mm | 472mm |
| Wheelbase | 620mm | 620mm | 620mm | 620mm | 620mm | 620mm |
