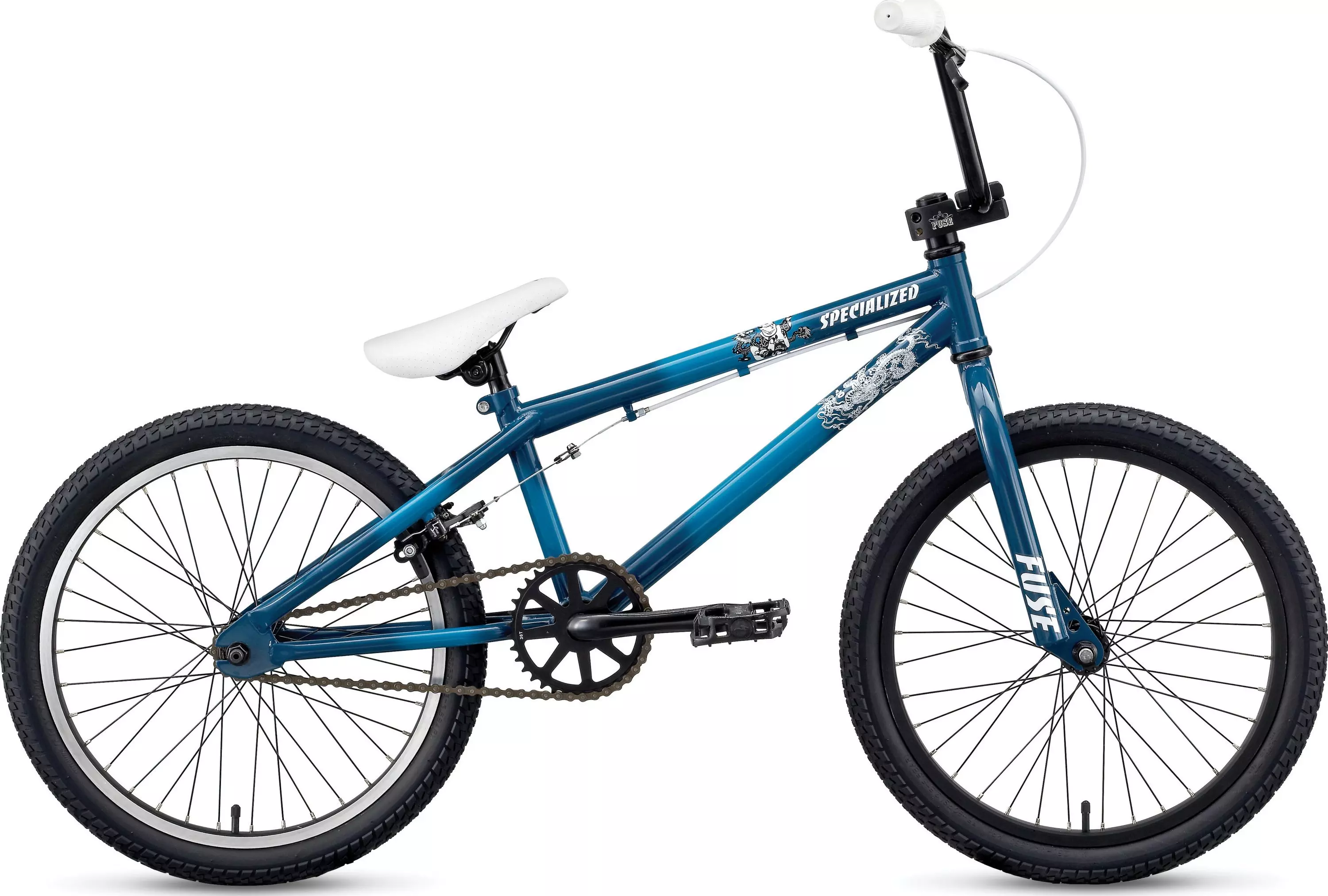

2010 Fuse Grom 20

0 Reviews

Everything you want and nothing you don't, the X-Games-proven Fuse offers more bang…

Color:

Teal

Size:

20 Product Details

Everything you want and nothing you don't, the X-Games-proven Fuse offers more bang for your buck than any other player in the game. Always bomb-proof, high integrity and ultra lightweight, with super-low BBs and compact drive options.

Fuse Kraton mid-flange grips for shock absorption and hand traction
Fast-rolling Rhythm Lite Sport tires keep grip levels high and wheel weights low
Compact drive 36/13t CNC-cut chainring for a stronger and lighter weight drivetrain
Frame with 19-inch top tube and externally relieved head tube may be built for Groms, but still takes tons of abuse

Technical Specifications

FRAMESET

FRAME

Hi-Ten frame, STD BB shell, tig welded, formed DT/TT, externally relieved HT w/ stamped ""S"" logo, wrap gusset BB yoke, seat-stay mounted U-brake bosses, integrated seat collar, 6mm dropouts for 14mm axle

FORK

Specialized 1.6mm Hi-Ten 1-1/4"" blades, 1-1/8"" threadless, 2mm thick Hi-Ten steerer, 6mm dropouts for 14mm axle

HEADSET

1-1/8"" threadless

SEAT BINDER

Cr-Mo seat pin, allen key type

WHEELS

RIMS

Fuse Single, single wall

FRONT HUB

Fuse, 36h, sealed mech., mid flange, solid 14mm Cr-Mo axle

REAR HUB

Fuse, 36h, sealed mech., mid flange, 14mm solid axle

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Rhythm Lite Sport, 20 x 2.1"", 30TPI, wire bead

REAR TIRE

Specialized Rhythm Lite Sport, 20 x 2.1"", 30TPI, wire bead

INNER TUBES

Schraeder valve

DRIVETRAIN

FREEWHEEL

Odyssey 1/2"" x 1/8"" x 13t for M30 thread

CHAIN

KMC Z-510, 1/2"" x 1/8""

CRANKSET

Heat Treated Hi Ten 1pc., 165mm

CHAINRINGS

Forged alloy 36t w/ CNC cut teeth

BOTTOM BRACKET

Heat treated Hi-Ten cups, loose ball for 1pc.

COCKPIT

STEM

Fuse forged alloy, 50mm extension, 1 1/8"" A-Head

HANDLEBARS

Hi-Ten 2pc., 675mm wide, 205mm rise, 12 degree back, 3 degree up sweep

GRIPS

Specialized File, Kraton w/ flange

SADDLE

7mm rails, front and rear bumpers

SEATPOST

Alloy, 2 bolt, no offset, 25.4mm

BRAKES

REAR BRAKE

Tektro FX-330, linear spring, 15mm offset arms w/ grey soft compound pads

BRAKE LEVERS

Tektro SBL-89, alloy two finger, 16mm cable pull

ACCESSORIES

PEDALS

Specialized platform, 1/2'' Cr-Mo axle, molded pins

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	16	20.5	19	20.75	21
Rake	29mm	29mm	29mm	29mm	29mm
Top Tube Length (Actual)	423mm	524mm	483mm	529mm	535mm
Seat Tube Length, Center to Top	207mm	242mm	238mm	255mm	239mm
Bottom Bracket Height	238mm	279mm	279mm	283mm	279mm
Standover Height	474mm	573mm	561mm	570mm	560mm
Head Tube Length	100mm	100mm	100mm	110mm	110mm
Head Tube Angle	73°	74.25°	74.25°	74.25°	74.25°
Chainstay Length	299mm	349mm	347mm	352mm	347mm
Seat Tube Angle	70°	72°	72°	72°	72°
Seatpost Length	0mm	0mm	0mm	0mm	0mm
