The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4…
We deliver! Just say when and how.

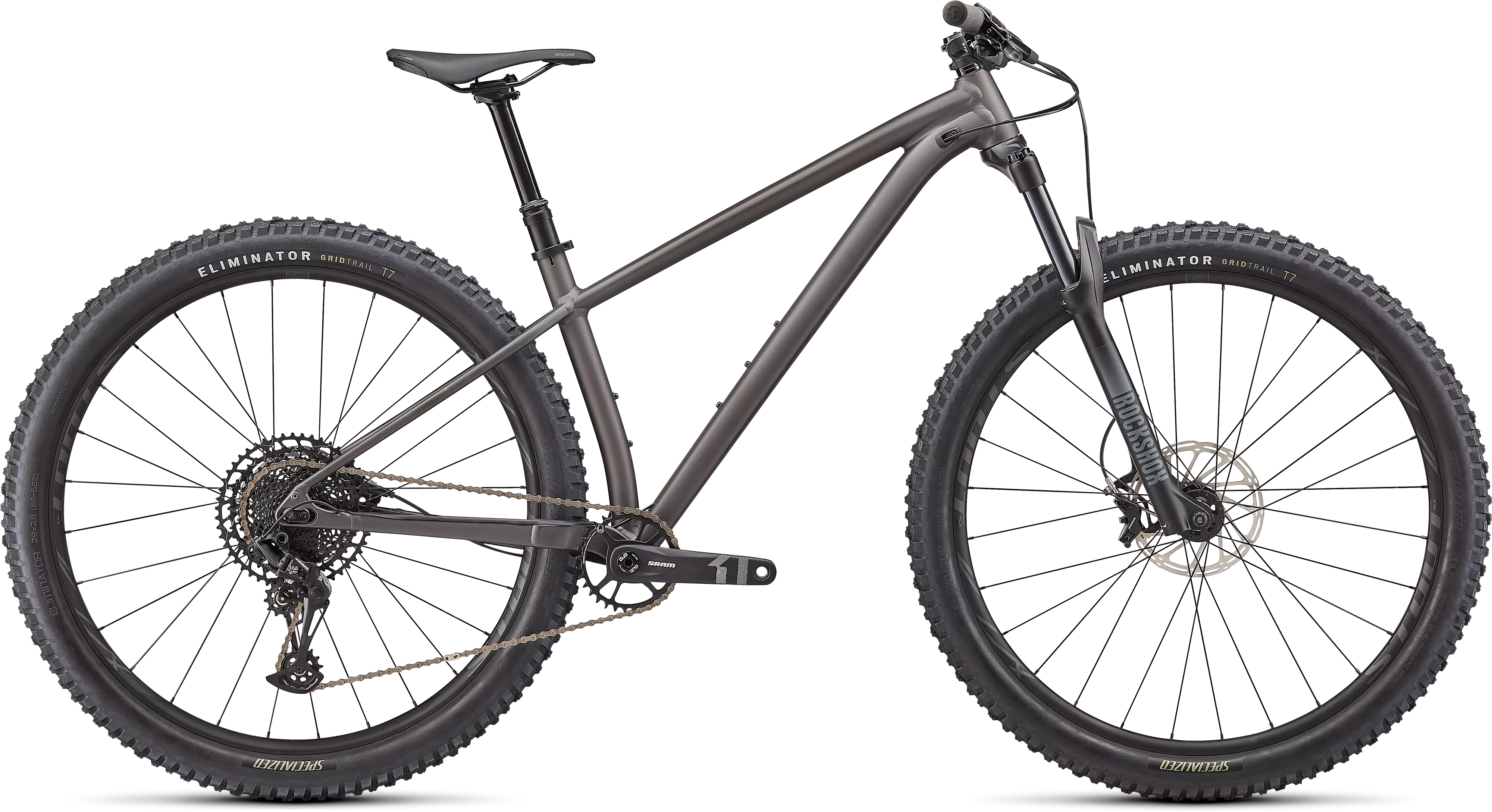

The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4 aluminum chassis, frame geometry that lends the bike both playfulness and capability, and parts that withstand a serious flogging.
130-millimeters of plush suspension courtesy of a RockShox Recon RL fork.
Highlights include powerful SRAM Level TRL disc brakes and a TranzX dropper post.
SRAM NX Eagle drivetrain gives you single-ring simplicity and gearing to spare.
Frame
Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
Seat Binder
Alloy, 38.6mm
Fork
RockShox Recon RL, air spring, 46mm offset, 130mm of travel
Front Brake
SRAM Level TRL, hydraulic disc, 4-piston, 200/180mm
Rear Brake
SRAM Level TRL, hydraulic disc, 2-piston, 180/160mm
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Rear Derailleur
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Chain
SRAM, SX Eagle, 12-speed
Crankset
SRAM, X1 Alloy Eagle, 12-speed
Chainrings
32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Rims
Specialized Alloy, Tubeless Ready, 29mm internal width, 28h
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
Stainless, 14g
Front Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
Inner Tubes
Specialized Turbo Tube 29X1.75-2.4
Stem
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Handlebars
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Grips
Specialized Trail Grips
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost
TranzX Dropper, 34.9mm, XS-S: 100mm, M: 125mm, L-XL: 150mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Crank Length | 170mm | 170mm | 170mm | 170mm | 175mm |
Handlebar Width | 750mm | 750mm | 780mm | 780mm | 780mm |
Stem Length | 45mm | 45mm | 45mm | 45mm | 45mm |
Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 356mm | 356mm | 406mm | 456mm | 456mm |
Front-Center | 698mm | 718mm | 738mm | 764mm | 790mm |
Seat-Tube Length | 340mm | 375mm | 410mm | 455mm | 505mm |
Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
B-B Height | 315mm | 315mm | 315mm | 315mm | 315mm |
Chain-Stay Length - Long | 435mm | 435mm | 435mm | 435mm | 435mm |
Trail | 113mm | 113mm | 113mm | 113mm | 113mm |
Wheelbase | 1122mm | 1142mm | 1162mm | 1188mm | 1214mm |
Stack | 625mm | 625mm | 625mm | 639mm | 652mm |
Reach | 400mm | 420mm | 440mm | 460mm | 480mm |
Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm | 46mm |
Fork Length (full) | 540mm | 540mm | 540mm | 540mm | 540mm |
Chain-Stay Length - Short | 420mm | 420mm | 420mm | 420mm | 420mm |
Bike Stand-Over Height | 727mm | 747mm | 750mm | 754mm | 793mm |
Head-Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
B-B Drop | 60mm | 60mm | 60mm | 60mm | 60mm |
Head-Tube Length | 95mm | 95mm | 110mm | 125mm | 95mm |
Top-Tube Length (horizontal) | 579mm | 599mm | 619mm | 643mm | 667mm |
