Take a look at the world's strongest man, and you're not going to find some chiseled…

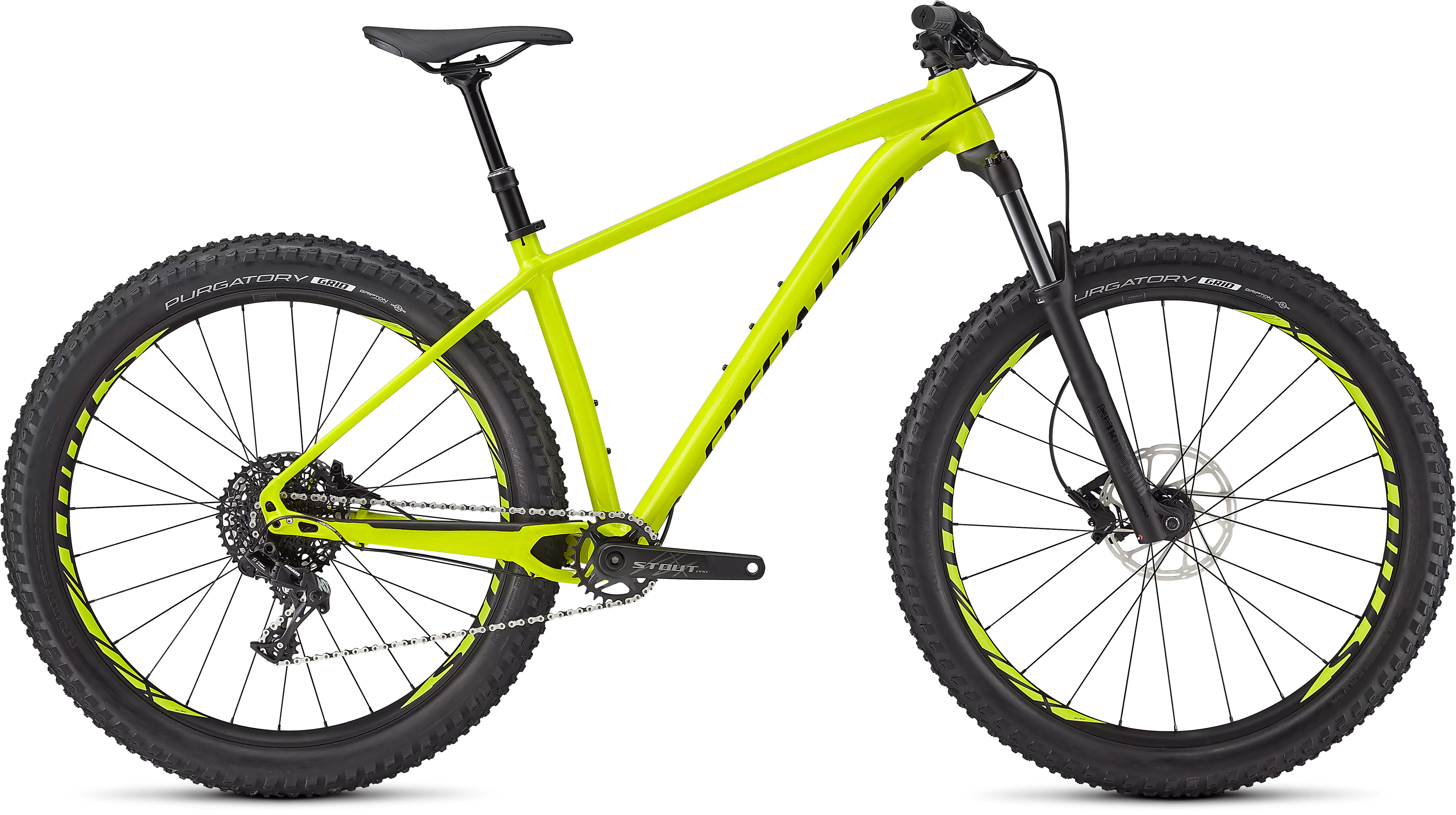

Take a look at the world's strongest man, and you're not going to find some chiseled Adonis. You're going to find someone who has more volume. The Mountain, anyone? Behind the "extra" surface area, though, there's a man that can dominate a caber toss and run down the tarmac with a plane in tow. Mathematically, it could be broken down as more volume + versatility = dominance, and that's exactly what's at play with the Fuse Comp.
These bigger tires put out more traction, more floatation, and better handling without sacrificing anything to efficiency on climbs. And with this model, we spec'd it with a no-nonsense build that's handpicked to get the job done. Components like a dropper post, and a buttery-smooth, 120mm RockShox Recon RL fork ensure that, no matter how rugged, technical, or hair raising that job might be, the Fuse can handle it with ease.
M4 Aluminum with Smooth Welds proved to be the right material for the job, allowing a lightweight, durable frame with a low and slack geometry that's equal parts snappy and efficient on climbs and descents. It also allowed us to incorporate our exclusive Diamond Stay that accommodates the 27.5+ wheels & tires without compromising on our hallmark short chainstays.
A RockShox Recon RL fork handles suspension duties up front with 120mm of plush travel, and the Motion Control™ damper makes sure you climb and descend with the utmost of efficiency.
SRAM's 11-speed NX groupset features a wide gear range that delivers tons of climbing and descending efficiency.
FRAME
Specialized M4 Aluminum w/ Smooth Welds, tapered head tube and seat tube, forged post-mount 160mm disc, 148mm thru-axle dropout, alloy replaceable derailleur hanger
HANDLEBARS
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
STEM
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
TransX dropper, 30.9mm, S: 120mm, M/XXL: 150mm Travel
SEAT BINDER
Alloy, bolt-type, 34.9mm
FORK
RockShox Recon RL, Solo Air, Boost™, 51mm offset, 120mm of travel
REAR BRAKE
SRAM Level, hydraulic disc, 180/160mm
FRONT BRAKE
SRAM Level, hydraulic disc, 200/180mm
SHIFT LEVERS
SRAM NX, 11-speed
REAR DERAILLEUR
SRAM NX, 11-speed
CASSETTE
SRAM PG-1130, 11-speed, 11-42t
CRANKSET
Stout Pro, direct-mount
CHAINRINGS
Steel, 28T
BOTTOM BRACKET
PF30 BB, 73mm shell
CHAIN
KMC X11, 11-speed w/ Missing Link™
RIMS
Stout Trail SL 27.5, 38mm internal width, tubeless ready, disc-specific
FRONT HUB
Specialized, sealed cartridge bearings, 15x110mm thru-axle, 24h
REAR HUB
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
SPOKES
Stainless, 14g
FRONT TIRE
Purgatory, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 3.0"
REAR TIRE
Purgatory, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 3.0"
INNER TUBES
Presta, 40mm valve
PEDALS
Specialized Dirt
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
S | M | L | XL | XXL | |
---|---|---|---|---|---|
Crank Length | 170MM | 175MM | 175MM | 175MM | 175MM |
Handlebar Width | 750MM | 750MM | 750MM | 750MM | 750MM |
Stem Length | 50MM | 50MM | 60MM | 60MM | 70MM |
Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 120MM,JD-SBC02 | 120MM,JD-SBC02 | 150MM,JD-SBC03 | 150MM,JD-SBC03 | 150MM,JD-SBC03 |
BB Height, 27.5x3.0" | 312mm | 312mm | 312mm | 312mm | 312mm |
BB Height, 27.5x2.8" | 306mm | 306mm | 306mm | 306mm | 306mm |
BB Height, 29x2.3" | 319mm | 319mm | 319mm | 319mm | 319mm |
Stack | 610mm | 614mm | 629mm | 643mm | 661mm |
Reach | 400mm | 420mm | 440mm | 458mm | 476mm |
Head Tube Length | 95mm | 100mm | 115mm | 130mm | 150mm |
Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
BB Drop | 51mm | 51mm | 51mm | 51mm | 51mm |
Trail | 95mm | 95mm | 95mm | 95mm | 95mm |
Fork Length, Full | 530mm | 530mm | 530mm | 530mm | 530mm |
Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm | 51mm |
Front Center | 689mm | 708mm | 735mm | 760mm | 786mm |
Chainstay Length | 430mm | 430mm | 430mm | 430mm | 430mm |
Wheelbase | 1114mm | 1136mm | 1161mm | 1185mm | 1211mm |
Top Tube Length, Horizontal | 575mm | 608mm | 633mm | 656mm | 679mm |
Bike Standover Height | 757mm | 781mm | 806mm | 830mm | 866mm |
Seat Tube Length | 394mm | 434mm | 470mm | 505mm | 555mm |
Seat Tube Angle | 74° | 73° | 73° | 73° | 73° |
