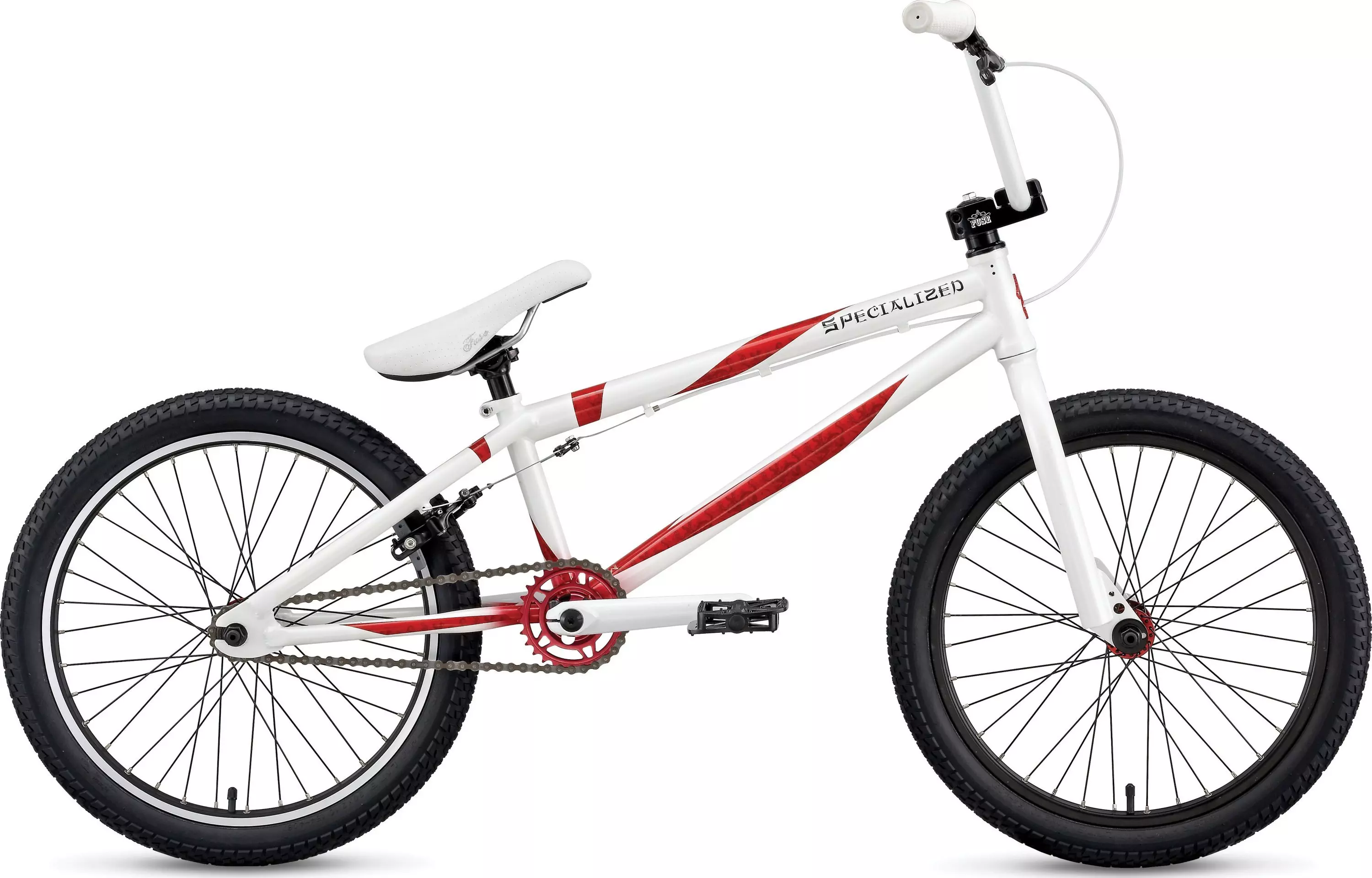

2010 Fuse 3
5
1 Reviews
Everything you want and nothing you don't, the X-Games-proven Fuse offers more bang…
Product Details
Everything you want and nothing you don't, the X-Games-proven Fuse offers more bang for your buck than any other player in the game. Always bomb-proof, high integrity and ultra lightweight, with super-low BBs and compact drive options.
Threadless Cr-Mo fork is light and durable
Sealed cartridge bearing MID BB handles abuse like no other system
28-tooth CNC-cut chanring makes for a stronger and lighter weight drivetrain
100% Cr-Mo frame with MID BB and integrated headset for pro-level performance
Fuse hollow-axle cassette hubset and doublewall, eyeletted rims: One word. Quality.
Fuse Cr-Mo 2-piece handlebar with 10-degree backsweep and 3-degree upsweep for total control
Technical Specifications
FRAMESET
FRAME
100% Cr-Mo. 20.75"" TT, MID BB shell, tig welded, formed DT/TT, externally relieved integrated HT w/ stamped ""S"" logo, wrap gusset BB yoke, seat-stay mounted U-brake bosses, integrated seat collar, 6mm dropouts for 14mm axle
FORK
Specialized 1.4mm Cr-Mo 1-1/4"" blades, 1-1/8"" threadless, 2mm thick Hi-Ten steerer, 6mm dropouts for 14mm axle
HEADSET
FSA Impact, 1-1/8"" threadless, integrated
SEAT BINDER
Cr-Mo seat pin, allen key type
WHEELS
RIMS
Fuse Double, double wall w/ eyelets
FRONT HUB
Fuse, 36h, sealed mech., mid flange, solid 14mm Cr-Mo axle
REAR HUB
Fuse, 36h, 4x sealed cartridge bearing, mid flange, 14mm hollow axle
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Rhythm Lite Sport, 20 x 2.1"", 30TPI, wire bead
REAR TIRE
Specialized Rhythm Lite Sport, 20 x 2.1"", 30TPI, wire bead
INNER TUBES
Schraeder valve
DRIVETRAIN
FREEWHEEL
Odyssey 1/2"" x 1/8"" x 13t for M30 thread
CHAIN
KMC Z-510H, 1/2"" x 1/8""
CRANKSET
Tig welded Tubular Cr-Mo for 8 spline, 175mm length
CHAINRINGS
CNC cut 6061 28t w/ Motostar design
BOTTOM BRACKET
Mid BB, 2x sealed cartridge bearing w/ 19mm 8 spline Cr-Mo BB spindle, alloy tube and cone spacers
COCKPIT
STEM
Fuse forged alloy, 50mm extension, 1 1/8"" A-Head
HANDLEBARS
Hi-Ten 2pc., 560mm wide, 165mm rise, 11 degree back, 4 degree up sweep
GRIPS
Fuse File, Kraton w/ flange
SADDLE
Fuse Jump, 8mm rail, PVC bumpers front and rear
SEATPOST
Alloy, 2 bolt, no offset, 25.4mm
BRAKES
REAR BRAKE
Tektro FX-15, cold forged, double bushing, linear spring, 15mm offset arms, soft compound pads
BRAKE LEVERS
Tektro 275A, cold forged two finger lever, 15mm cable pull
ACCESSORIES
PEDALS
Specialized low profile, 9/16"", sealed cartridge bearing, alloy platform, removable pins
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 16 | 20.5 | 19 | 20.75 | 21 | |
|---|---|---|---|---|---|
| Rake | 29mm | 29mm | 29mm | 29mm | 29mm |
| Top Tube Length (Actual) | 423mm | 524mm | 483mm | 529mm | 535mm |
| Seat Tube Length, Center to Top | 207mm | 242mm | 238mm | 255mm | 239mm |
| Bottom Bracket Height | 238mm | 279mm | 279mm | 283mm | 279mm |
| Standover Height | 474mm | 573mm | 561mm | 570mm | 560mm |
| Head Tube Length | 100mm | 100mm | 100mm | 110mm | 110mm |
| Head Tube Angle | 73° | 74.25° | 74.25° | 74.25° | 74.25° |
| Chainstay Length | 299mm | 349mm | 347mm | 352mm | 347mm |
| Seat Tube Angle | 70° | 72° | 72° | 72° | 72° |
| Seatpost Length | 0mm | 0mm | 0mm | 0mm | 0mm |
