2014 Fate Expert Carbon 29

0 Reviews

The all-new Fate Expert Carbon 29 features Women's Performance XC 29er Geometry and…

Color:

Carbon/Hyper Green/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

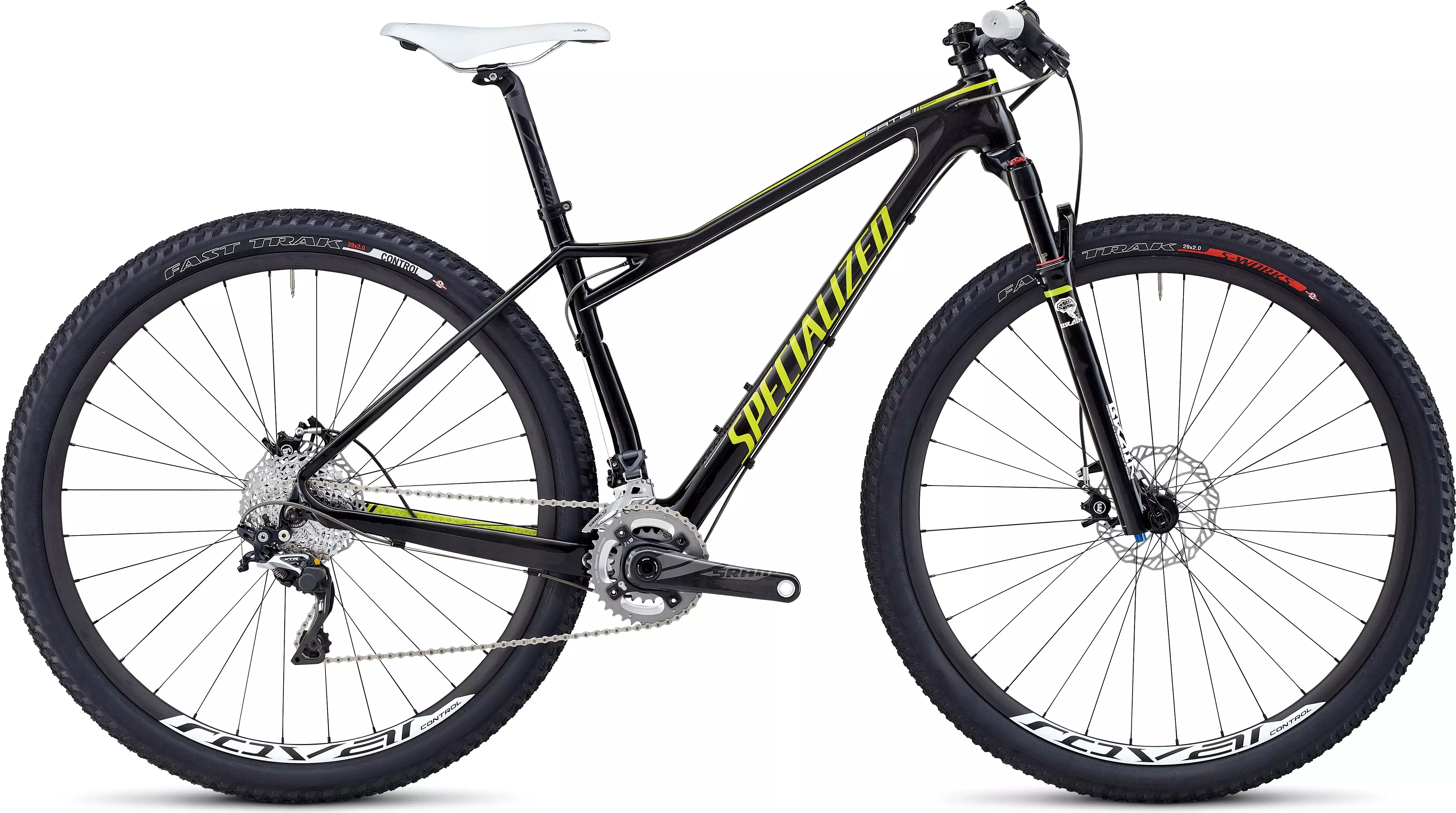

The all-new Fate Expert Carbon 29 features Women's Performance XC 29er Geometry and is equipped with an 80mm-travel RockShox SID Brain fork and Magura MTS brakes for premium cross-country performance.

RockShox Sid 29 Brain (bottom adjust) fork with 80mm travel, new Solo Air spring, Brain Fade and rebound adjust, provides premium XC suspension performance
Custom SRAM S-2200 carbon double XC crankset with 36/22 gearing is built for strong ,yet lightweight performance
Roval Control 29 carbon wheelset is redesigned for increased stiffness with durable alloy hubs, oversized 28mm end caps, and DT Swiss Super Comp spokes, gives riders more control and efficiency over demanding terrain
Custom Magura MTS hydraulic disc brakes provide consistent and reliable stopping power
FACT 8m carbon frame uses Women's Performance XC 29er Geometry and carbon layup for a great fit and outstanding stiffness-to-weight for ultra-quick performance, with tapered head tube and internal cable routing

Technical Specifications

FRAMESET

FRAME

Fate FACT 8m carbon, Women's Performance XC 29er Geometry and carbon layup, tapered headtube, carbon PF30 BB, hollow carbon dropouts, replaceable alloy rear derailleur hanger

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 hard anodized alloy, single bolt, 32.6mm

SUSPENSION

FORK

RockShox Sid 29 Brain, inertia valve damper, Solo Air spring, alloy tapered crown/steerer, Brain Fade and reb adj., S: 51mm offset, M/L: 46mm offset, QR, 80mm travel

WHEELS

RIMS

Roval Control 29 Carbon, 24mm wide, 32h

FRONT HUB

Roval Control 29, 15mm end caps, QR, 32h

REAR HUB

Roval Control 29, DT Swiss alloy cassette body, QR, 32h

FRONT TIRE

S-Works Fast Trak, 2Bliss Ready, 29x2.0"", aramid bead, 120 TPI

REAR TIRE

Specialized Fast Trak Control, 2Bliss Ready, 29x2.0"", aramid bead, 60 TPI

INNER TUBES

Ultralight presta valve

DRIVETRAIN

FRONT DERAILLEUR

SRAM X7, 10-speed, 34.9 clamp, top pull

REAR DERAILLEUR

Shimano XTR Shadow Plus, 10-speed, GS mid cage

SHIFT LEVERS

Shimano SLX, 10-speed, trigger

CASSETTE

SRAM PG-1050, 10-speed, 11-36

CHAIN

SRAM PC 1051, 10-speed, PowerLink

CRANKSET

Custom SRAM carbon S-2200, 10-speed XC double, PF30 spindle, S: 165mm, M: 170mm, L: 175mm

BOTTOM BRACKET

SRAM PF30, OS press-in bearings, sealed cartridge

COCKPIT

SADDLE

Specialized Women's Body Geometry Jett Comp Gel, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized 2014 butted alloy, single bolt setback, 27.2mm, 350mm

STEM

Specialized, alloy, adjustable rise, 31.8mm clamp

HANDLEBARS

Specialized XC, flat bar, 2014 butted alloy, 660mm wide, 8-degree backsweep, 31.8mm

GRIPS

Specialized Sip Grip, half-waffle aramid-infused, regular thickness

BRAKES

FRONT BRAKE

Custom Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL 160mm rotor

REAR BRAKE

Custom Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL 160mm rotor

BRAKE LEVERS

Custom Magura MTS, alloy master cylinder, alloy lever blade, hollow lever pivot, reach adj.

ACCESSORIES

PEDALS

Resin test ride, w/ toe clips, CEN std.

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	15.0	17.0	19.0
Seat Tube Length, Center to Center	340mm	398mm	433mm
Seat Tube Length, Center to Top	386mm	431.8mm	482.6mm
Top Tube Length, Actual	548mm	565mm	585mm
Bottom Bracket Drop	64.5mm	64.5mm	64.5mm
Bottom Bracket Height	304mm	304mm	304mm
Wheel Base	1049mm	1060mm	1072mm
Standover Height	715mm	745mm	765mm
Stack	592mm	605mm	615mm
Reach	394mm	410mm	433mm
Head Tube Length	90mm	90mm	100mm
Head Tube Angle	70.5°	71°	71°
Chainstay Length	436mm	436mm	436mm
Top Tube Length, Horizontal	545mm	575mm	600mm
Seat Tube Angle	74.5°	73.5°	73.5°
Crank Length	165mm	170mm	175mm
Handlebar Width	660mm	660mm	660mm
Stem Length	60mm	75mm	90mm
Seatpost Length	350mm	350mm	350mm
