2020 Fatboy Comp Carbon
3.5
2 Reviews
Every now and again, we're all faced with going on a diet. The same is true for our…
Product Details

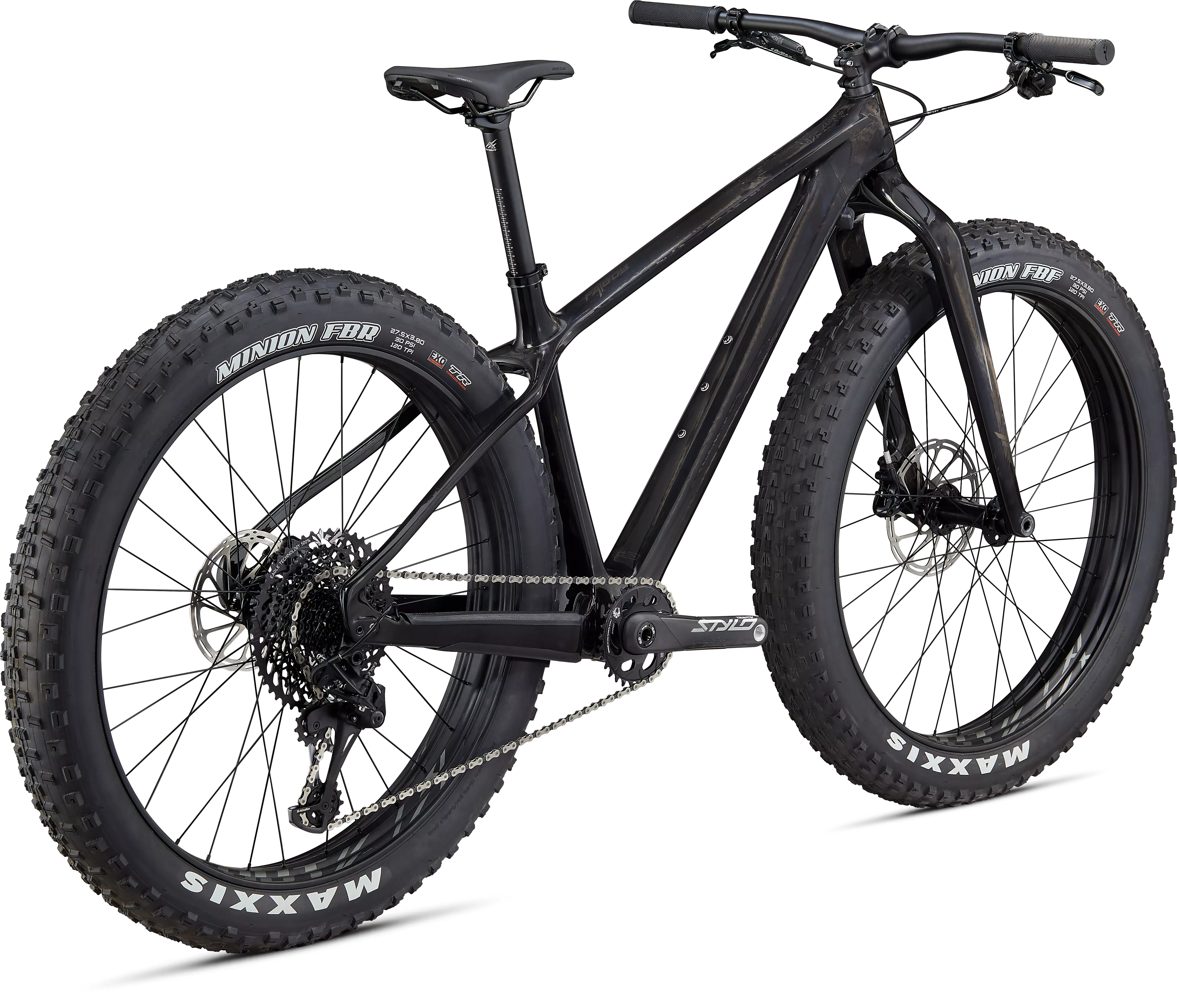

Every now and again, we're all faced with going on a diet. The same is true for our Fatboy. With the Fatboy Comp Carbon, we've taken performance and strength up a notch, while also moving up a wheelsize, to a 27.5 wheel and tire combo.
A VERY FAT FLAVOR OF ADVENTURE
It boils down to a single word: adventure. The Fatboy’s massive tires (27.5x3.8”) float over rocks, roots, sand, snow, ice…. Let’s put it this way, if it’s part of mother earth, those big tires will roll right over it with a mix of comfort and traction that’s unrivaled. Get out there.
• Light-yet-tough carbon frame holds up to any adventure you can throw at it.
• Lightweight carbon-fiber fork provides tons of compliance and absorbs chatter.
• The SRAM GX Eagle 1X drivetrain gives you plenty of gearing to tackle any climb.
Technical Specifications
FRAMESET
FRAME
Specialized FACT 10m, 12x197mm thru-axle rear, internal cable routing
SEAT BINDER
Alloy, 34.9mm
SUSPENSION
FORK
Specialized FACT carbon, 46mm offset, tapered steerer, 150mm axle
COCKPIT
STEM
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
GRIPS
Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Specialized Bridge, size specific, 143/155
SEATPOST
Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
BRAKES
REAR BRAKE
SRAM Level TL, hydraulic disc, 180/160mm
FRONT BRAKE
SRAM Level TL, hydraulic Disc, 200/180mm
DRIVETRAIN
REAR DERAILLEUR
SRAM GX Eagle, 12-speed
SHIFT LEVERS
SRAM GX Eagle, trigger, 12-speed
CASSETTE
SRAM XG-1275 Eagle, 12-speed, 10-50t
CHAIN
SRAM GX Eagle, 12-speed w/ PowerLock®
CRANKSET
SRAM STYLO Carbon
CHAINRINGS
30T
BOTTOM BRACKET
SRAM DUB, PF30
WHEELS
RIMS
Stout XC 80, 27.5", alloy, 76mm internal width, disc-specific, tubeless ready
FRONT HUB
Stout Pro 150, sealed cartridge bearings, 6-bolt disc, 15x150mm, 32h
REAR HUB
Stout Pro 197, sealed cartridge bearings, 6-bolt disc, 12x197mm, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Maxxis Minion FBF, 120 TPI, EXO, 27.5 x 3.8"
REAR TIRE
Maxxis Minion FBR, 120 TPI, EXO, 27.5 x 3.8"
INNER TUBES
Presta valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170MM | 175MM | 175MM | 175MM |
| Handlebar Width | 750MM | 750MM | 750MM | 750MM |
| Stem Length | 60MM | 60MM | 75MM | 75MM |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350MM | 350MM | 400MM | 400MM |
| Stack | 602mm | 602mm | 617mm | 632mm |
| Reach | 395mm | 420mm | 437mm | 458mm |
| Head Tube Length | 94mm | 94mm | 110mm | 125mm |
| Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| BB Height | 312mm | 312mm | 312mm | 312mm |
| BB Drop | 60mm | 60mm | 60mm | 60mm |
| Trail | 80mm | 80mm | 80mm | 80mm |
| Fork Length, Full | 496mm | 496mm | 496mm | 496mm |
| Fork Rake/Offset | 47mm | 47mm | 47mm | 47mm |
| Front Center | 640mm | 665mm | 687mm | 713mm |
| Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| Wheelbase | 1088mm | 1113mm | 1135mm | 1161mm |
| Top Tube Length, Horizontal | 579mm | 604mm | 626mm | 651mm |
| Bike Standover Height | 738.5mm | 752mm | 778.3mm | 807.5mm |
| Seat Tube Length | 394mm | 434mm | 470mm | 520mm |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
