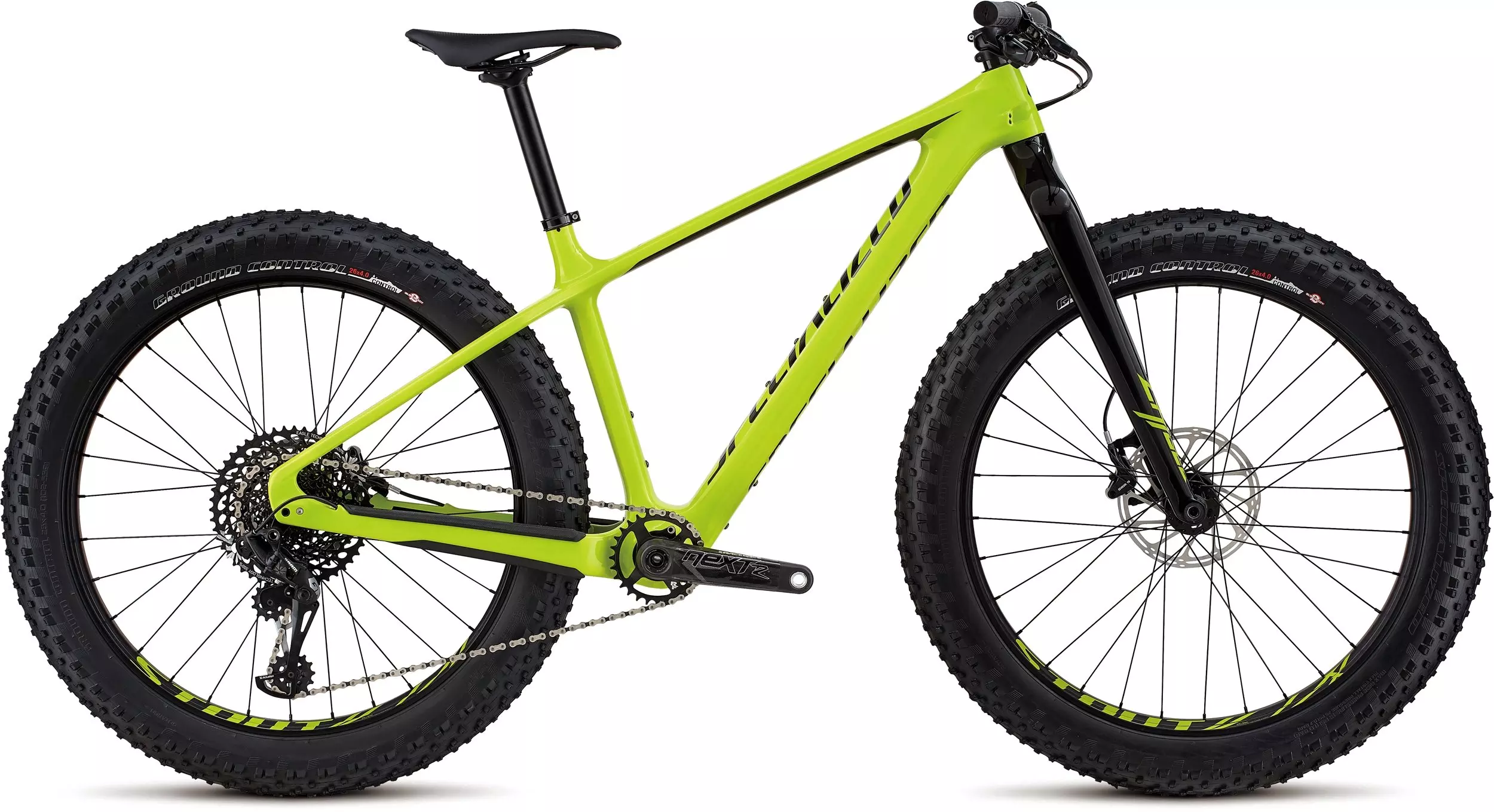

2018 Fatboy Comp Carbon
$3,000
5
1 Reviews
Every now and again, we're all faced with going on a diet, and the same is true for…
Product Details
Every now and again, we're all faced with going on a diet, and the same is true for our Fatboy. With the new Fatboy Comp Carbon, we've elevated the fat bike platform to a higher level of performance, strength, and efficiency.
It features a sophisticated 10m carbon construction that's lightweight, ultra-compliant, and stiff in all the right places for the climbs. The layup also allowed us to integrate internal cable routing to keep things clean and simple through nasty conditions.
Sprinkle in a durable one-by drivetrain and some near bombproof alloy wheels, and you have a bike that will give new purpose to winter and more fun to springtime.
An immaculate FACT carbon fiber construction ensures that the frame is lightweight and plenty stiff in all the right places. Internal cable routing is also incorporated, ensuring that slush, sand, snow, or dirt will have no bearing on performance out on the trail.
A FACT carbon fiber fork provides tons of compliance and absorbs chatter, while simultaneously keeping the overall weight of the bike down.
SRAM's 12-speed GX Eagle drivetrain, with a Truvativ Descendent crank, features an ultra-wide gear range that delivers climbing and descending efficiency in spades. On top of this, the one-by setup is notorious for being next to impossible to drop a chain with, plus it provides a significant weight savings in comparison to a standard two-by setup.
Technical Specifications
FRAMESET
FRAME
Specialized FACT 10m, 12x197mm thru-axle rear, internal cable routing, ISCG XC tabs
SEAT BINDER
Alloy, 34.9mm
SUSPENSION
FORK
Specialized FACT carbon, tapered steerer, 46mm offset, 150mm axle
WHEELS
RIMS
Stout XC 80, 26", alloy, 76mm internal width, disc-specific
FRONT HUB
Stout Pro 150, sealed cartridge bearings, 6-bolt disc, 15x150mm, 32h
REAR HUB
Stout Pro 197, sealed cartridge bearings, 6-bolt disc, 12x197mm, SRAM XD driver body, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Ground Control Fat, Control casing, 120 TPI, Aramid folding bead, 2Bliss Ready, 26x4.0"
REAR TIRE
Ground Control Fat, Control casing, 120 TPI, Aramid folding bead, 2Bliss Ready, 26x4.0"
INNER TUBES
Presta, 40mm valve
DRIVETRAIN
REAR DERAILLEUR
SRAM GX Eagle, 12-speed
SHIFT LEVERS
SRAM GX Eagle, trigger, 12-speed
CASSETTE
SRAM GX Eagle, 12-speed, 10-50t
CHAIN
SRAM GX Eagle, 12-speed w/ PowerLock®
CRANKSET
Race Face Next R crank
CHAINRINGS
Steel, 30T
BOTTOM BRACKET
PF30
COCKPIT
STEM
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Phenom Comp, Adaptive Edge design, hollow Cr-Mo rails, 143mm
SEATPOST
Alloy, 2-bolt clamp, 12.5mm offset, 30.9mm, anti-corrosion hardware
BRAKES
REAR BRAKE
SRAM Level TL hydraulic disc, organic pads, 180/160mm rotors
FRONT BRAKE
SRAM Level TL hydraulic disc, organic pads, 200/180mm rotors
ACCESSORIES
PEDALS
Specialized Platform, Cr-Mo, 9/16" spindle
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170MM | 175MM | 175MM | 175MM |
| Handlebar Width | 750MM | 750MM | 750MM | 750MM |
| Stem Length | 60MM | 60MM | 75MM | 75MM |
| Saddle Width | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350MM | 350MM | 400MM | 400MM |
| Stack | 602mm | 602mm | 617mm | 632mm |
| Reach | 395mm | 420mm | 437mm | 458mm |
| Head Tube Length | 94mm | 94mm | 110mm | 125mm |
| Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| BB Height | 307mm | 307mm | 307mm | 307mm |
| BB Drop | 60mm | 60mm | 60mm | 60mm |
| Trail | 80mm | 80mm | 80mm | 80mm |
| Fork Length, Full | 496mm | 496mm | 496mm | 496mm |
| Fork Rake/Offset | 47mm | 47mm | 47mm | 47mm |
| Front Center | 640mm | 665mm | 687mm | 713mm |
| Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| Wheelbase | 1088mm | 1113mm | 1135mm | 1161mm |
| Top Tube Length, Horizontal | 579mm | 604mm | 626mm | 651mm |
| Bike Standover Height | 738.5mm | 752mm | 778.3mm | 807.5mm |
| Seat Tube Length | 394mm | 434mm | 470mm | 520mm |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
