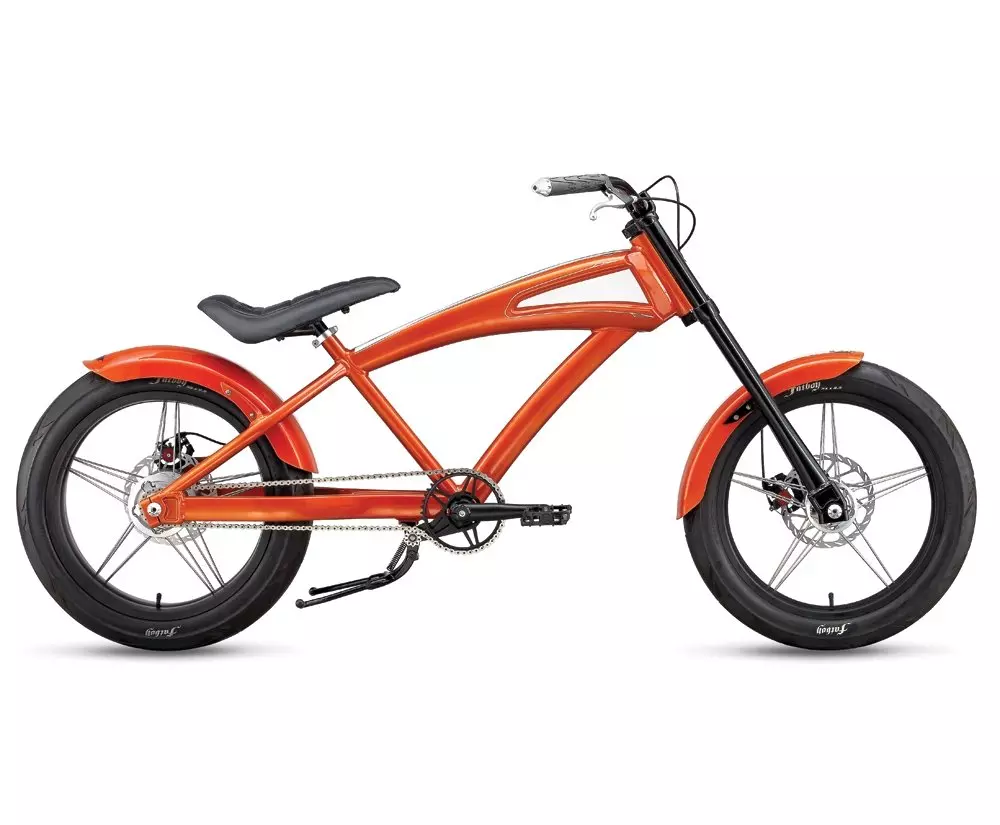

2009 Fatboy Chopper
0 Reviews
BUILT FOR THOSE WHO CARE more about showroom good looks than the Tour de France,…
Product Details
BUILT FOR THOSE WHO CARE more about showroom good looks than the Tour de France, this big boy is designed with fat tires, fat fenders, a wide, low riding saddle and all the plush detail you'd expect from a Hog-inspired cruiser bike.
The laid-back Fat Boy Moto frame is constructed of our A1 Premium Aluminum, with a Transform top tube, internal brake cable routing, and an integrated center-stand mount for a clean look and absolute style.
The Fat Boy A1 Premium Aluminum double-clamp fork is disc brake only and designed for chopper-specific strength.
Avid's BB5 mechanical disc brakes, paired with 8-inch G2 Clean Sweep rotors, provide sure and steady stopping power, whenever you need it.
The Fat Boy wheelset features our A1 Moto front and rear hubs that are forged and CNC machined for strength and a clean look, sealed cartridge bearings provide smooth-rolling, trouble-free performance, the wide Fat Boy 24x3.5-inch tires complete the moto look.
The moto-inspired Fat Boy Chopper saddle, with integrated post, is big and plush.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, integrated headset, transform TT w/ internal brake cable routing, ISCG BB shell, forged dropouts w/ disc mount, 24x6"" wheel-specific, integrated centerstand mount
HEADSET
1-1/8"" threadless, integrated
SEAT BINDER
Specialized alloy w/ QR
SUSPENSION
FORK
Fat Boy A1 Premium Aluminum double clamp, forged dropouts and disc mount
WHEELS
FRONT TIRE
Specialized Fat Boy, 24x3.5""
REAR TIRE
Specialized Fat Boy, 24x3.5""
INNER TUBES
Specialized schraeder valve
RIMS
Fat Boy A1, 24 x 6"" rear, 24 x 3"" front
FRONT HUB
Specialized Fat Boy A1 Moto, Forged and CNC w/ sealed cartridge bearings and 10mm Cr-Mo axle
REAR HUB
Specialized Fat Boy A1 Moto, Forged and CNC w/ sealed cartridge bearings and 10mm Cr-Mo axle
SPOKES
2.8mm (9g) stainless Fat Boy Moto Spoke
DRIVETRAIN
CASSETTE
Shimano MX-30, single speed, 18t
CHAIN
KMC KOOL K710SL, 1/2"" x 1/8""
CRANKSET
Specialized Tubular Cr-Mo Moto, 3pc.
CHAINRINGS
CNC'd 6061-T6, 42t star design
BOTTOM BRACKET
Threaded cup, 4x cartridge bearing w/ Cr-Mo spindle
COCKPIT
STEM
Fat Boy A1 Premium Aluminum, 31.8mm clamp, integrated w/ upper fork clamp
HANDLEBARS
Fat Boy Cruiser, A1 premium Aluminum, 31.8 mm, 700mm wide
GRIPS
Specialized Fat Boy, Kraton
SADDLE
Fat Boy Chopper w/ integrated post
SEATPOST
Fat Boy Cr-Mo 30.9, integrated w/ saddle
BRAKES
FRONT BRAKE
Avid BB5, mechanical disc, 8"" G2 Clean Sweep rotor
REAR BRAKE
Avid BB5, mechanical disc, 8"" G2 Clean Sweep rotor
BRAKE LEVERS
Tektro alloy 4 finger w/ ball end
ACCESSORIES
PEDALS
Specialized alloy platform, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| Badass | |
|---|---|
| Bottom Bracket Height - Low Setting | 306mm |
| Top Tube Length (Horizontal) | 822mm |
| Head Tube Height | 188mm |
| Head Tube Angle - Low Setting | 57° |
| Seat Tube Angle (Actual) - Low Setting | 51° |
| Top Tube Length (Actual) | 660mm |
| Seat Tube Length - Center to Top | 463mm |
| Wheel Base | 1390mm |
| Standover Height | 723mm |
| Chainstay Length | 630mm |
| Crank Length | 175mm |
| Seatpost Length | 350mm |
