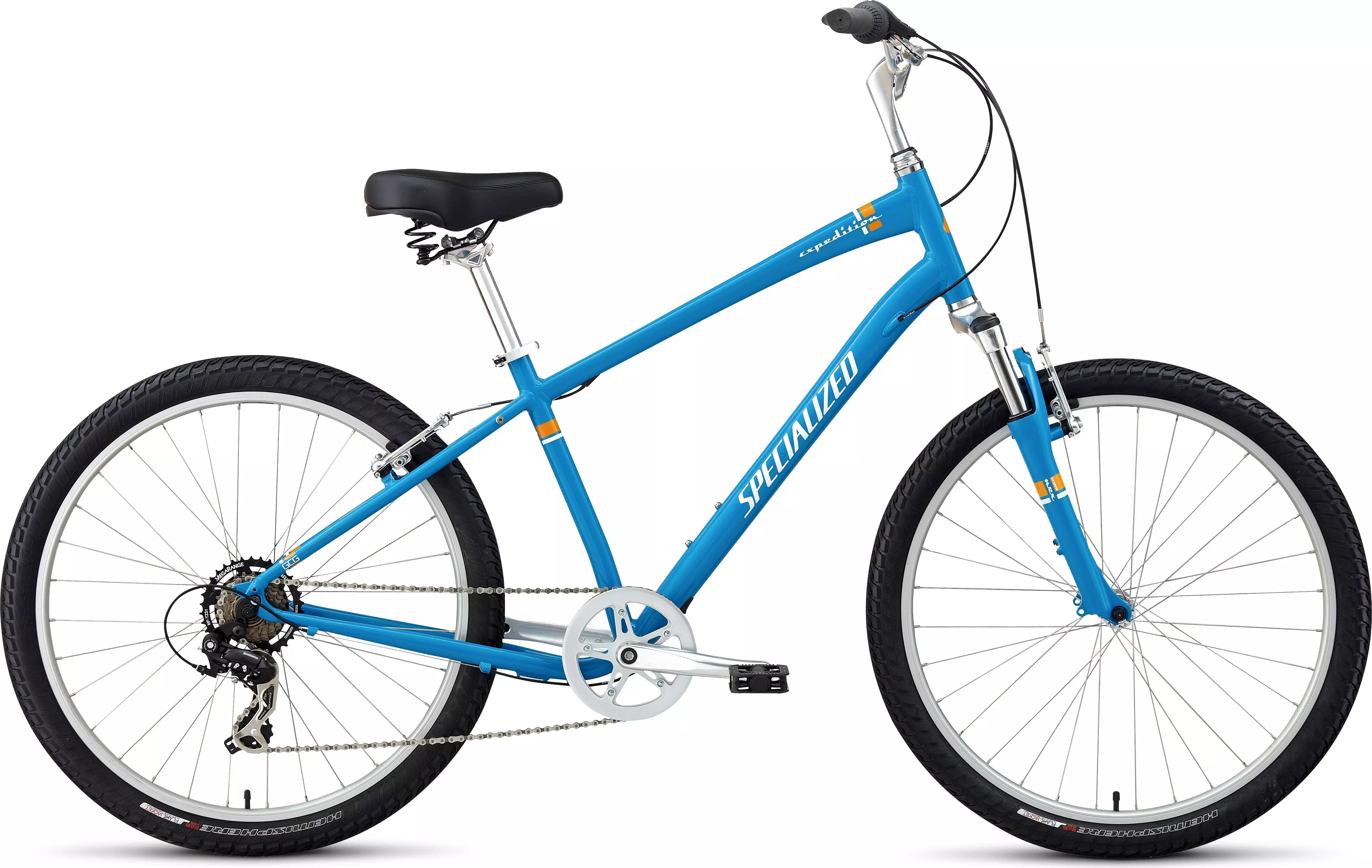

2014 Expedition
0 Reviews
Around town or the campground, the Expedition is comfortable, plush, and perfect…
Product Details
Around town or the campground, the Expedition is comfortable, plush, and perfect for cruising paved and dirt roads. The 21 speeds will keep you pedaling efficiently on any terrain.
A1 Premium Aluminum frame with Ground Control Geometry for stability and safety, plus 63mm-travel fork with alloy lowers for lightweight confidence on any surface, forged dropouts and integrated kickstand mount
Double-wall, alloy 32-hole rims are strong and smooth
Smooth-rolling Hemisphere 26" tires with flat protection and semi-connected tread pattern for traction and control on pavement or gravel
Body Geometry Comfort closed-end grips for an ergonomic contact point to keep hands fatigue-free
Comfort saddle uses springs, dual-density foam on top, and has a wide platform for ultimate comfort
Technical Specifications
FRAMESET
FRAME
A1 Premium Aluminum, Ground Control Geometry, 26"" frame, formed tubes, forged dropouts w/ replaceable derailleur hanger
FORK
SR Suntour NEX Coil, aluminum lower, preload adj., 63mm travel
HEADSET
1-1/8"" FSA Intelaset, threaded, Cr-Mo cups
SEAT BINDER
Alloy, QR
WHEELS
RIMS
Alloy double-wall, 32h
FRONT HUB
Double-sealed, ground race, dual-lock nuts w/ 17mm contact side, 5mm QR
REAR HUB
Freewheel type, nutted
SPOKES
Stainless, 14g (2.0mm)
FRONT TIRE
Specialized Hemisphere, 26x1.95"", wire bead, Flak Jacket protection, 26 TPI
REAR TIRE
Specialized Hemisphere, 26x1.95"", wire bead, Flak Jacket protection, 26 TPI
INNER TUBES
Standard Schrader valve
DRIVETRAIN
SHIFT LEVERS
Shimano, 7-speed, Revo-shift
REAR DERAILLEUR
Shimano, 7-speed
CASSETTE
Shimano MegaRange, 7-speed, 14-34
CRANKSET
Forged crank arm w/ press on ring, double PC ring guard
CHAINRINGS
42T, w/ double guard
BOTTOM BRACKET
Cartridge bearings, square spindle, capless bolts
CHAIN
KMC Z7
COCKPIT
HANDLEBARS
Specialized riser bar, alloy, 15-degree backsweep, 60mm rise, 25.4mm
STEM
Quill, alloy die-cast, 2-bolt, 150mm x 25.4mm clamp
TAPE
Specialized Body Geometry Comfort, dual compound
SADDLE
Comfort Plus, dual-density foam, springs
SEATPOST
Alloy, 2-bolt, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
REAR BRAKE
Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
BRAKE LEVERS
Alloy, four-finger lever
ACCESSORIES
PEDALS
Comfort, composite body w/ rubber top, sealed loose ball bearings
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 67° | 67° | 67.5° | 67.5° |
| Head-Tube Length | 160mm | 180mm | 200mm | 220mm |
| Head-Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Chain-Stay Length | 500mm | 500mm | 500mm | 500mm |
| Top-Tube Length, Horizontal | 610mm | 625mm | 640mm | 655mm |
| Front-Center | 630mm | 644mm | 665mm | 679mm |
| Stand-Over Height | 691mm | 736mm | 781mm | 824mm |
| Seat-Tube Length, B-B Center to Top | 370mm | 425mm | 480mm | 535mm |
| Fork Rake | 40mm | 40mm | 40mm | 40mm |
| B-B Drop | 59mm | 59mm | 59mm | 59mm |
| Trail | 89mm | 89mm | 89mm | 89mm |
| Wheelbase | 1123mm | 1138mm | 1159mm | 1173mm |
