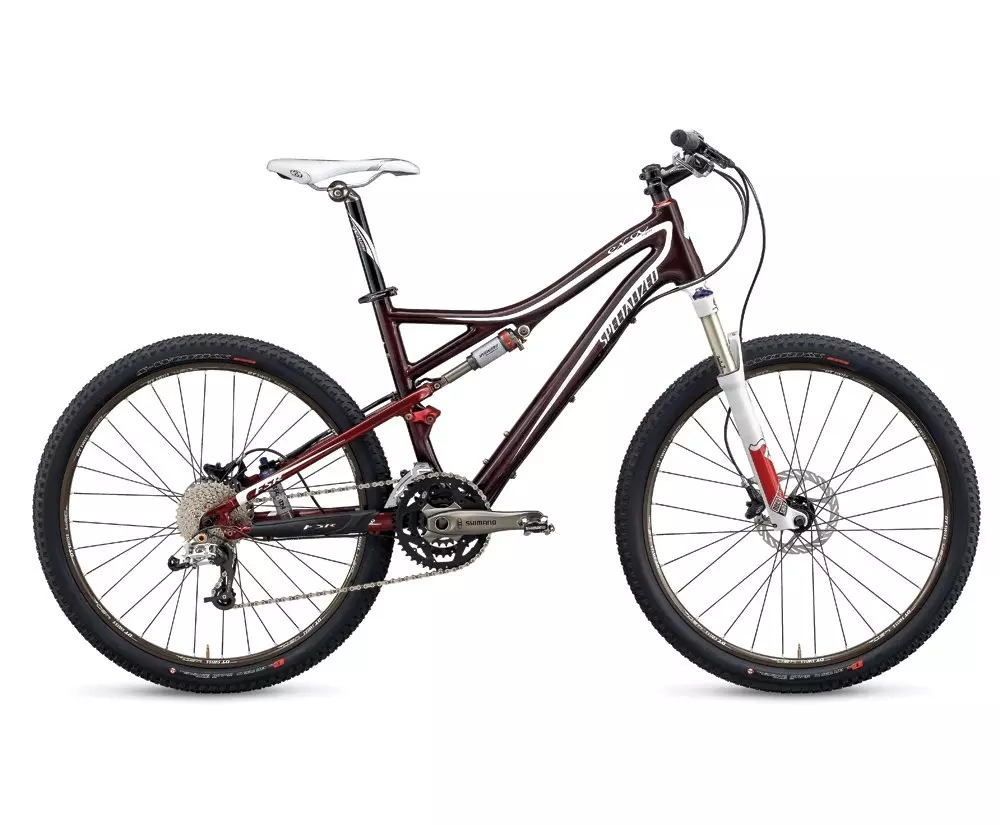

2009 Era FSR Expert Carbon

0 Reviews

The Era FSR is the fastest, lightest and most efficient performance mountain bike…

Color:

Gloss Red/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The Era FSR is the fastest, lightest and most efficient performance mountain bike designed from the ground up for women and ridden by Pro racers like Lene Byberg and Rebecca Rusch. Ranging from firm to a plush 100mm of travel, the Era FSR's dual suspension with optimized rebound and compression rates (including the new Mini Brain damper) lets it climb like a hardtail, but rail in the technical terrain.

S-Works Fast Trak LK 26 x 2.0" tires feature short, fast rolling knobs for easy speed and dual-compound tread for awesome traction. 2Bliss technology enhances control and durability without adding weight.
100mm-travel Era FACT IS carbon main triangle trims weight and adds stiffness for enhanced control. Women's-specific geometry and carbon construction makes the Era the fastest bike from Point A to Point B.
Specialized proprietary FlowControl Mini Brain allows Era's AFR rear shock to instantaneously transition between firm and fully active settings, enhancing both efficiency and control.
Our custom DT Swiss wheels don't cut corners when it comes to quality: sealed cartridge bearings, a DT Swiss rear hub with quick release and DT Swiss Competition stainless spokes with alloy nipples. Exclusive to Specialized.
RockShox SID Race, 100mm air spring, adjustable rebound and compression with a lock out, alloy Steerer
Elixer R Carbon SL, 1.8mm thick rotor, alloy backed organic pads, carbon lever, SS hardware package, S, M: 160mm rotor, L, XL: 185mm rotor for front brake, S, M: 140mm rotor, L, XL: 160mm rotor for rear brake
FC-M762 Shimano crankset, 2pc 44A/32A/22S rings, S:170mm length, others: 175mm

Technical Specifications

FRAMESET

FRAME

FACT 9m carbon front triangle, Designs for Women geometry, M5 aluminum rear triangle. sealed cartridge bearing pivots, 100mm travel, replaceable derailleur hanger

HEADSET

1-1/8"" to 1.5"" Threadless, Campy style upper and lower cartridge bearing w/ adapter

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 36.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Specialized AFR remote mini , BRAIN inertia valve w/ BRAIN fade and rebound adj., Era tuned

FORK

RockShox SID Race, 100mm travel, air spring, motion control damper, external rebound and external floodgate compression adj. w/ LO, alloy steerer

WHEELS

FRONT TIRE

S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound

REAR TIRE

S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound

INNER TUBES

Specialized Ultralight 26x2.0"", presta

RIMS

Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h

FRONT HUB

Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, Oversized end caps, 9mm DT RWS, alloy QR, 28h

REAR HUB

Custom DT Swiss 370 w/ DT RWS QR, 32h

SPOKES

DT Swiss Competition butted 1.8/1.6mm stainless, black, alloy nipples

DRIVETRAIN

FRONT DERAILLEUR

Shimano M660 SLX, DMD, top swing, dual pull

REAR DERAILLEUR

SRAM X-0 9-speed mid cage

SHIFT LEVERS

SRAM X-9, trigger

CASSETTE

Shimano HG61, 9-speed, 11-34t

CHAIN

SRAM PC-971, 9-speed w/Power Link

CRANKSET

Custom Shimano FC-M762 XT, 2pc., S/M: 170mm, L: 175mm

CHAINRINGS

22S x 32A x 44A, 4-bolt, 104/64mm

BOTTOM BRACKET

Shimano BB-91, OS, press-in bearing

COCKPIT

STEM

Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish

HANDLEBARS

Specialized XC low rise 31.8mm bar, 2014 butted alloy, 6 degree up, 8 degree backsweep, 620mm wide

GRIPS

Specialized thin lock on grip

SADDLE

Specialized Women's Jett, hollow Cr-Mo rails, 143mm

SEATPOST

2014 butted alloy, single-bolt setback, S/M: 350, L/XL: 400mm

BRAKES

FRONT BRAKE

Custom Avid Elixir R Carbon SL, Carbon lever, SS hardware, alloy backed organic pads, 160mm rotor

REAR BRAKE

Custom Avid Elixir R Carbon SL, Carbon lever, SS hardware, alloy backed organic pads, 140mm rotor

BRAKE LEVERS

Custom Avid Elixir R Carbon SL Hydraulic, tool-less adj. reach

ACCESSORIES

PEDALS

Shimano M520, clipless

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L
Bottom Bracket Height - Low Setting	331mm	331mm	331mm
Top Tube Length (Horizontal)	540mm	565mm	595mm
Head Tube Height	126mm	143mm	154mm
Head Tube Angle - Low Setting	70°	70°	70°
Seat Tube Angle (Actual) - Low Setting	74.2°	74.2°	74.2°
Top Tube Length (Actual)	522mm	545mm	570mm
Seat Tube Length - Center to Top	394mm	432mm	470mm
Wheel Base	1049mm	1076mm	1107mm
Standover Height	704mm	721mm	729mm
Chainstay Length	425mm	425mm	425mm
Crank Length	170mm	170mm	175mm
Handlebar Width	620mm	620mm	620mm
Stem Length	75mm	90mm	90mm
Seatpost Length	350mm	350mm	350mm
