If we're being honest with ourselves, alloy has always been at the heart of the EVO…
If we're being honest with ourselves, alloy has always been at the heart of the EVO family. It's tough, it's stiff, and at least with our bikes, it's pretty damn light. Basically, it embodies everything that's good about mountain bikes, and that's what EVO is all about. But an Epic Comp EVO made out of aluminum? We say, "yeah, it's a perfect fit." And that's because this bike brings all the uphill racing, singletrack-ripping fun you want, and puts it in a durable, on-budget package. So get excited, because this is the most "epic" Epic yet.
Take a look around our office and you're going to see plenty Epics—most of them wearing dropper posts, wider tires and bars, and slightly longer forks. That's because the Epics that we're Frankensteining are not only fast off the start line, they're even better suited to masochistically long rides, multi-day stage races, and fast backcountry missions. At some point, we looked around and said to ourselves, "We should offer this bike, right out of the box, right?" So we did.
So let's dig into the details. First off, the EVO ups the fork travel from 100mm to 120mm. This gives you some relief up front while also slacking-out the front-end by one-degree to 68.5º. Next up, we added a zero-offset dropper post to give you more control on descents, but this design keeps your saddle over the BB on steep climbs. We also put some meat on the tires with a grippy 2.3" Ground Control at the front and a stiffer Fast Trak at the rear with GRID protection at the sidewalls.
The Epic EVO also features our Brain 2.0. The OG Brain changed the way the bike world looked at suspension, and oh was it good. It won races and put a flag in the ground for us as a true leader in innovation and suspension development, but we knew that we could make it better. Simple physics told us that, by moving the Brain closer to the rear axle, it would be in the most sensitive spot. And after some lengthy R&D, it's totally new. Now, it reacts seamlessly to bump forces, it has much more consistent damping performance, and finally, it integrates the hoses into the suspension links. This means that the oil paths are improved, and that creates an incredibly sleek package that outperforms anything on the market.
At the heart of the construction, you'll find our M5 alloy with our D'Aluisio Smartweld Technology that strategically places more welding material where it's needed, resulting in an aluminum frame that's more compliant and considerably stiffer at nearly every tube juncture. It's awesome.

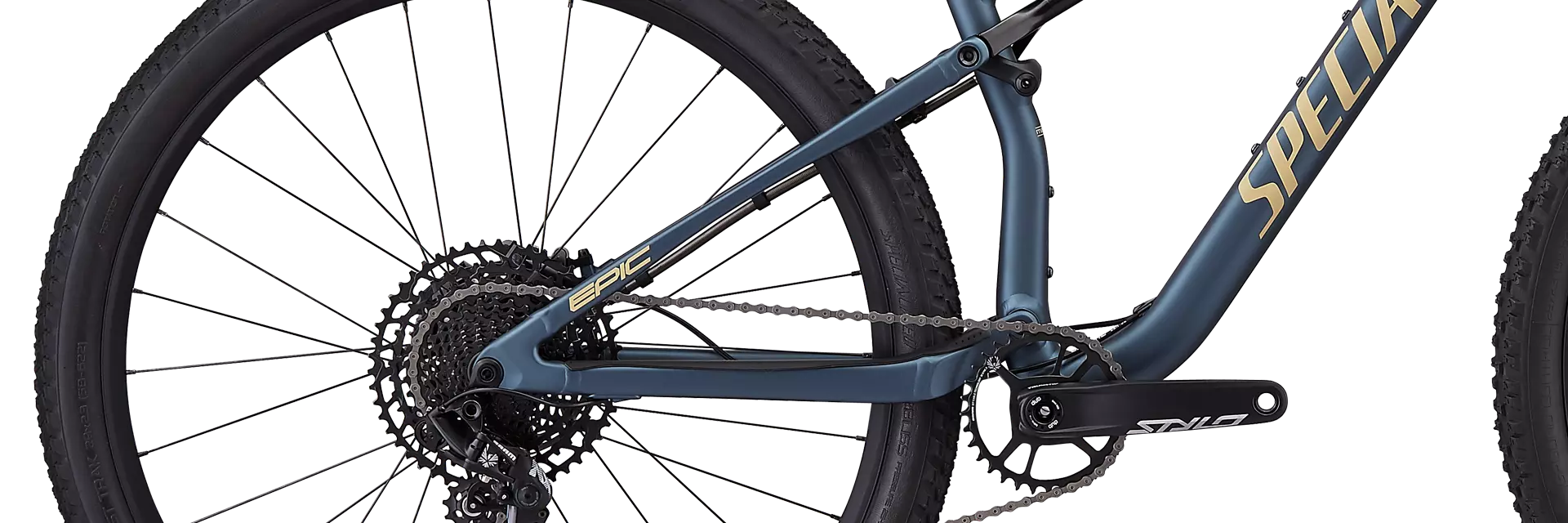

For the build, we spec'd a 12-speed SRAM NX Eagle groupset, SRAM Level TL brakes, and a Roval Control Alloy wheelset.

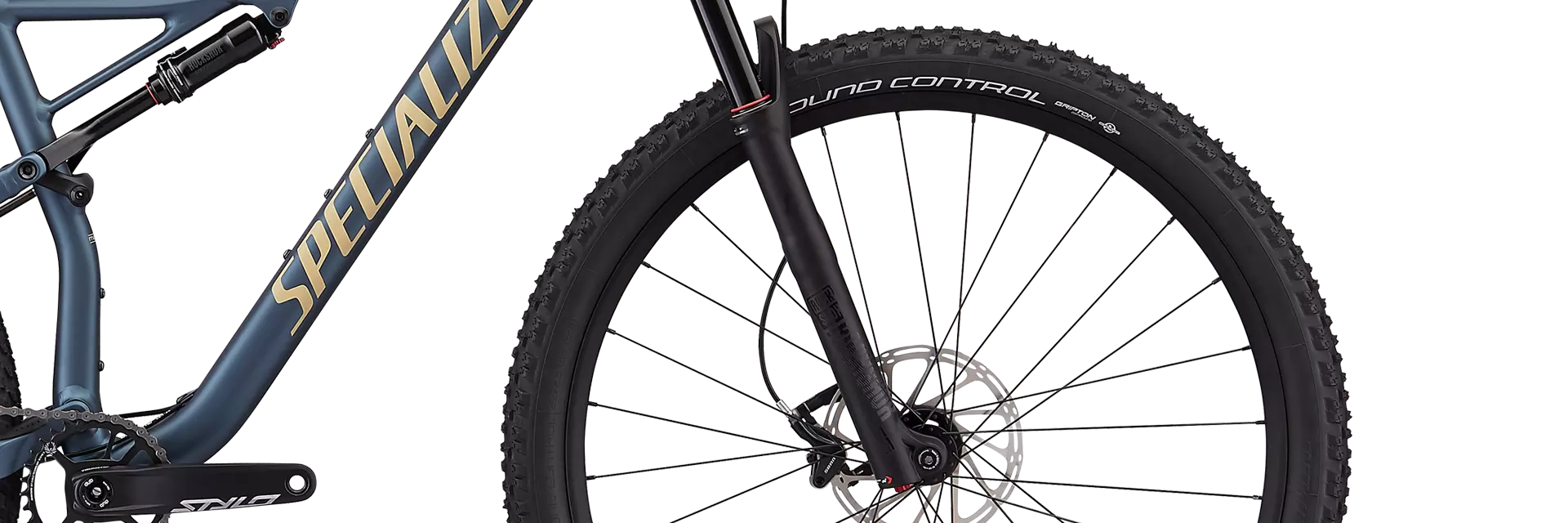

A RockShox Reba RL fork, with 120mm of travel, soaks up rocks, roots, and bumps, and it also features both compression and rebound adjustments.
The 12-speed SRAM NX Eagle groupset brings the performance of Eagle at a value anyone can appreciate.
An X-Fusion Manic seatpost brings you some much-needed drop for tackling steep descents, but it also features a zero-offset design that keeps your weight over the bottom bracket for the climbs.
FRAME
Specialized M5 Aluminum w/ D'Aluisio Smartweld Technology, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
FORK
RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 120mm of travel
REAR SHOCK

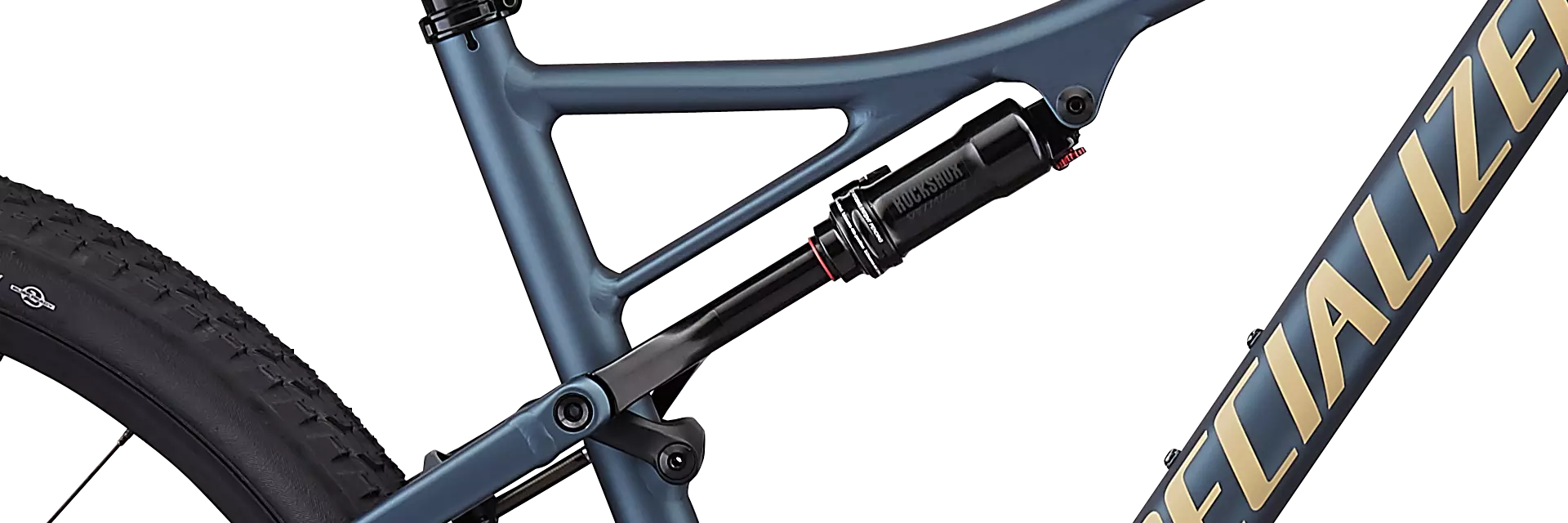

Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
HANDLEBARS
Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
STEM
Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
GRIPS
Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
X-Fusion manic, 30.9mm, (S: 100mm, M-XL: 125mm)
SEAT BINDER
Alloy, 34.9mm
FRONT BRAKE
SRAM Level TL, hydraulic disc
REAR BRAKE
SRAM Level TL, hydraulic disc
SHIFT LEVERS
SRAM NX Eagle, trigger, 12-speed
REAR DERAILLEUR
SRAM NX Eagle, 12-speed
CASSETTE
SRAM NX Eagle, 12-speed, 11-50t
CRANKSET
Truvativ STYLO, DUB
CHAINRINGS
SRAM Eagle, 32T
BOTTOM BRACKET
SRAM DUB, threaded BB
CHAIN
SRAM NX Eagle, 12-speed
RIMS
Roval Control Alloy 29", 25mm internal width
FRONT HUB
Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
REAR HUB
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
SPOKES
DT Swiss Industry
FRONT TIRE
Ground Control, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
REAR TIRE
Fast Trak, GRID casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
INNER TUBES
Standard, Presta valve
PEDALS
Specialized Dirt
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
S | M | L | XL | |
---|---|---|---|---|
Crank Length | 170mm | 175mm | 175mm | 175mm |
Handlebar Width | 750mm | 750mm | 750mm | 750mm |
Stem Length | 60mm | 70mm | 80mm | 80mm |
Saddle Width | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 361MM | 411MM | 411MM | 411MM |
Stack | 595mm | 605mm | 619mm | 638mm |
Reach | 398mm | 423mm | 446mm | 465mm |
Head Tube Length | 95mm | 105mm | 120mm | 140mm |
Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
BB Height | 340mm | 340mm | 340mm | 340mm |
BB Drop | 32mm | 32mm | 32mm | 32mm |
Trail | 99mm | 99mm | 99mm | 99mm |
Fork Length, Full | 526mm | 526mm | 526mm | 526mm |
Fork Rake/Offset | 43mm | 43mm | 43mm | 43mm |
Front Center | 667mm | 695mm | 723mm | 749mm |
Chainstay Length | 438mm | 438mm | 438mm | 438mm |
Wheelbase | 1103mm | 1132mm | 1159mm | 1186mm |
Top Tube Length, Horizontal | 571mm | 599mm | 626mm | 650mm |
Bike Standover Height | 772mm | 777mm | 782mm | 804mm |
Seat Tube Length | 400mm | 434mm | 470mm | 520mm |
Seat Tube Angle | 73.8° | 73.8° | 73.8° | 73.8° |
