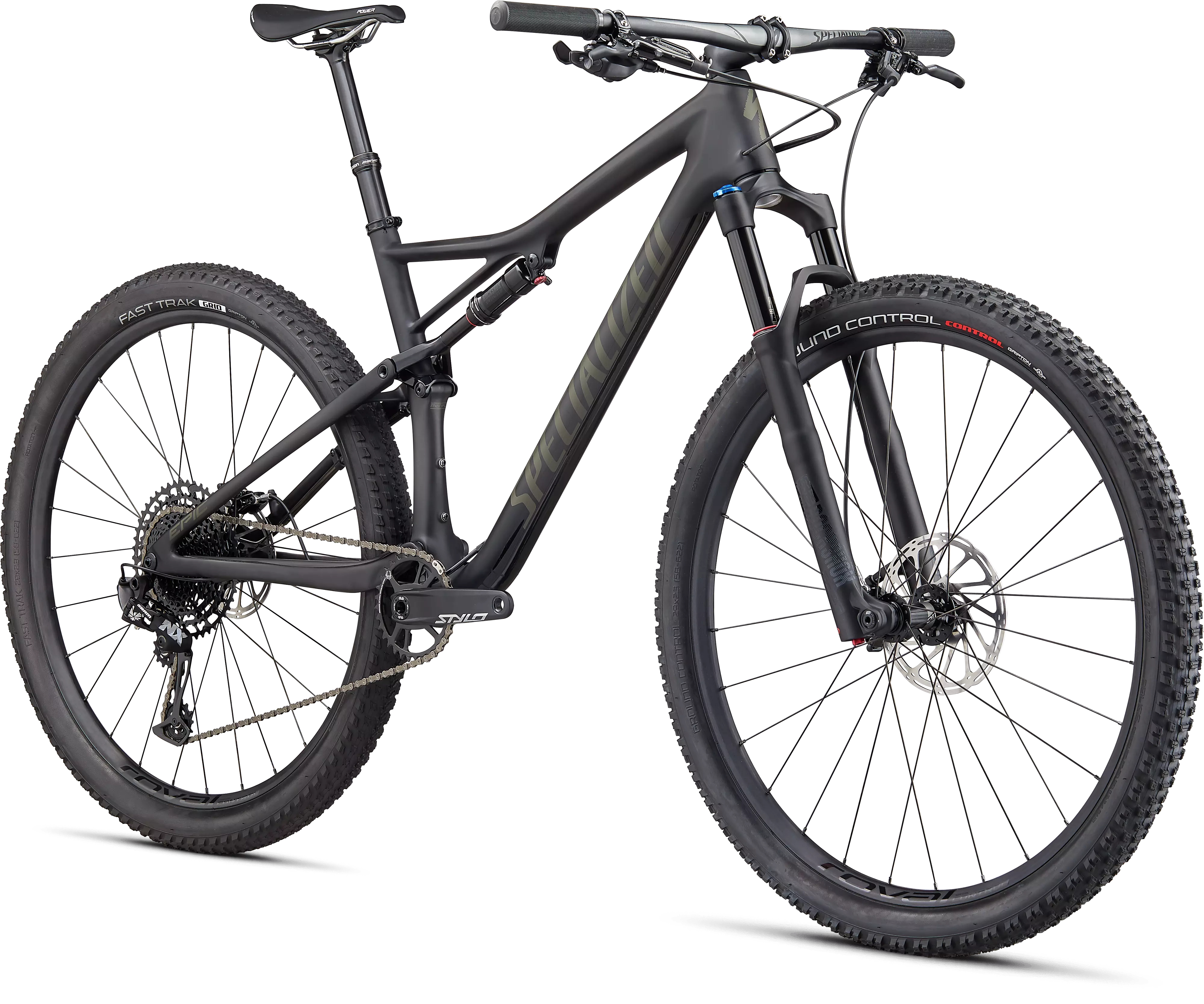

2020 Epic Comp Carbon EVO
$4,420
5
4 Reviews
We took our ultralight and efficient carbon-fiber Epic chassis and then added a mix…
Product Details
We took our ultralight and efficient carbon-fiber Epic chassis and then added a mix of components that increases your fun factor without also making your checking account weep. The end result is this bike right here. The Epic Comp Carbon EVO is proof that sometimes you actually can have it all.
A MORE EPIC KIND OF EPIC
Dropper posts and slightly longer forks may seem like overkill on an XC bike. We beg to differ. Epic EVOs are not only fast off the start line, they're even better suited to masochistically long rides, multi-day stage races, and fast backcountry missions.
HARDTAIL EFFICIENT. FULL-SUSPENSION CONTROL
Suspension should always make you faster—never slow you down with energy-sucking suspension bob. Our ingenious Brain-equipped shocks keep the Epic firm when the trail is smooth, then automatically turns your bike plush the moment your tires meet rocks and roots.
• Race-proven, carbon chassis and ingenious Brain suspension—nothing’s faster.
• 120mm-travel RockShox Reba RL fork increases the EVO’s downhill capability.
• An X-Fusion Manic dropper seatpost increases control on steep descents.
Technical Specifications
ACCESSORIES
SWAT
SWAT EMT Cage-Mount Tool
Pedals
PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
DRIVETRAIN
Rear Derailleur
SRAM NX Eagle, 12-speed
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Chain
SRAM SX Eagle, 12-speed
Crankset
Truvativ STYLO, DUB
Chainrings
Steel, 30T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Suspension
Rear Shock
Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Fork
RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 120mm of travel
FRAMESET
Frame
Specialized FACT 11m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Seat Binder
Specialized Alloy, 34.9mm
WHEELS
Rims
Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Front Hub
Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Rear Tire
Fast Trak, GRID casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Inner Tubes
Presta, 60mm valve
BRAKES
Front Brake
SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper
Rear Brake
SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper
COCKPIT
Handlebars
Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
SeatPost
X-Fusion manic, 30.9mm, (S: 100mm, M-XL: 125mm)
Stem
Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Tape
Specialized Trail Grips
Saddle
Body Geometry Power Sport, steel rails
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 750mm | 750mm | 750mm | 750mm |
| Stem Length | 60mm | 70mm | 70mm | 80mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 361mm | 411mm | 411mm | 411mm |
| Stack | 595mm | 605mm | 619mm | 638mm |
| Reach | 398mm | 423mm | 446mm | 465mm |
| Head Tube Length | 95mm | 105mm | 120mm | 140mm |
| Head Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| BB Height | 340mm | 340mm | 340mm | 340mm |
| BB Drop | 32mm | 32mm | 32mm | 32mm |
| Trail | 99mm | 99mm | 99mm | 99mm |
| Fork Length, Full | 526mm | 526mm | 526mm | 526mm |
| Fork Rake/Offset | 43mm | 43mm | 43mm | 43mm |
| Front Center | 667mm | 695mm | 723mm | 749mm |
| Chainstay Length | 438mm | 438mm | 438mm | 438mm |
| Wheelbase | 1103mm | 1132mm | 1159mm | 1186mm |
| Top Tube Length, Horizontal | 571mm | 599mm | 626mm | 650mm |
| Bike Standover Height | 772mm | 777mm | 782mm | 804mm |
| Seat Tube Length | 400mm | 434mm | 470mm | 520mm |
| Seat Tube Angle | 73.8° | 73.8° | 73.8° | 73.8° |
