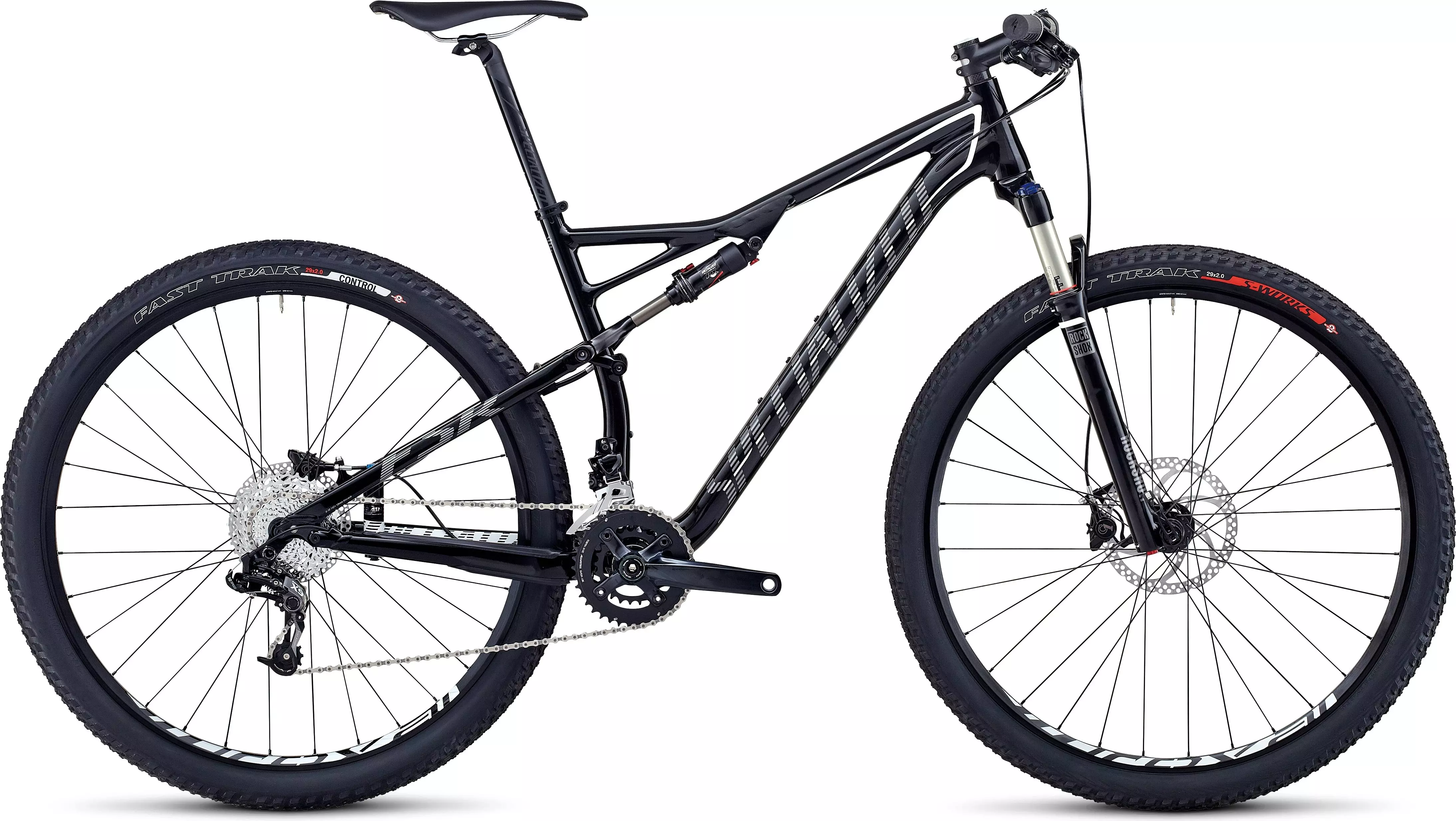

2014 Epic Comp 29
5
1 Reviews
The M5 aluminum Epic Comp 29 has 100mm of travel and 29-inch wheels to smooth any…
Product Details
The M5 aluminum Epic Comp 29 has 100mm of travel and 29-inch wheels to smooth any cross-country terrain.
All-new M5 alloy frame, dedicated 29er geometry and SWAT technology compatibility, sealed cartridge bearing pivots on every FSR point, and 142mm dropouts delivers the all-around best performing 100mm-travel Competitive XC bike
FOX/Specialized remote Mini-Brain inertia-valve shock with AUTOSAG and new lighter 2014 tune to seamlessly transition from efficient pedaling on smooth terrain to fully active on rough terrain
RockShox Reba RL 29 fork with 100mm travel, Solo Air spring and rebound adjust, and a 15mm thru-axle provides premium XC suspension performance w/lockout and compression adjust
Specialized Hi Lo disc hub has a higher flange on the disc side, which stiffens the 29er wheel in this high-stress area. Combined with 142+ spacing and sealed cartridge bearings, this wheelset punches well above its weight
S-Works Fast Trak 2.0", 2Bliss Ready front tire features dual compound rubber delivering exceptional speed and traction, while minimizing rotating weight
Formula C1 hydraulic disc brakes provide consistent and reliable stopping power
Technical Specifications
FRAMESET
FRAME
M5 alloy, 29"" geometry, tapered headtube, full internal shift/brake routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm
SWAT
SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 hard anodized alloy, single bolt, 31.8mm
SUSPENSION
REAR SHOCK
FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve w/ Aramid hose, Brain Fade adjust, 205x53mm, 100mm travel
FORK
RockShox Reba RL 29, Solo Air spring, alloy tapered steerer, lockout and reb adj., 15mm thru-axle, 100mm travel
WHEELS
RIMS
Roval 29, alloy disc, 22mm internal width, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142+ spacing, 32h
SPOKES
DT Industry Stainless, 3X front/rear 2.0
FRONT TIRE
S-Works Fast Trak, 2Bliss Ready, 29x2.0"", foldable aramid bead, 120 TPI
REAR TIRE
Specialized Fast Trak Control, 2Bliss Ready, 29x2.0"", foldable aramid bead, 60 TPI
DRIVETRAIN
FRONT DERAILLEUR
Custom SRAM, 10-speed, high direct-mount
REAR DERAILLEUR
SRAM X9 Type 2, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, MiXmaster clamp
CASSETTE
SRAM PG-1030, 10-speed, 11-36
CHAIN
SRAM PC 1031, 10-speed, PowerLink
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, S: 170mm, Others: 175mm
CHAINRINGS
38A x 24A, 4-bolt, 104/64mm
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
COCKPIT
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 27.2mm, S: 350mm, Others: 400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC, flat bar, 2014 butted alloy, 700mm wide, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
BRAKES
FRONT BRAKE
Formula C1, alloy caliper, metallic pad, S/M: 160mm, L/XL: 180mm rotor
REAR BRAKE
Formula C1, alloy caliper, metallic pad, 160mm rotor
BRAKE LEVERS
Formula C1, hydraulic disc, tooled reach adj.
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Seat Tube Length, Center to Top | 400mm | 434mm | 470mm | 520mm |
| Top Tube Length, Actual | 529mm | 557mm | 583mm | 611mm |
| Bottom Bracket Drop | 40mm | 40mm | 40mm | 40mm |
| Bottom Bracket Height | 332mm | 332mm | 332mm | 332mm |
| Seat Tube Angle, Actual | 69.25° | 69.25° | 69.25° | 69.25° |
| Seat Tube Angle, Effective | 73.75° | 73.75° | 73.75° | 73.75° |
| Wheel Base | 1092mm | 1112mm | 1140mm | 1168mm |
| Standover Height | 776mm | 781mm | 791mm | 793mm |
| Stack | 587mm | 601mm | 615mm | 634mm |
| Reach | 393mm | 418mm | 441mm | 462mm |
| Head Tube Length | 100mm | 110mm | 125mm | 145mm |
| Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| Chainstay Length | 448mm | 448mm | 448mm | 448mm |
| Top Tube Length, Horizontal | 568mm | 593mm | 620mm | 647mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 700mm | 700mm | 700mm | 700mm |
| Stem Length | 75mm | 90mm | 100mm | 110mm |
| Seatpost Length | 350mm | 400mm | 400mm | 400mm |
